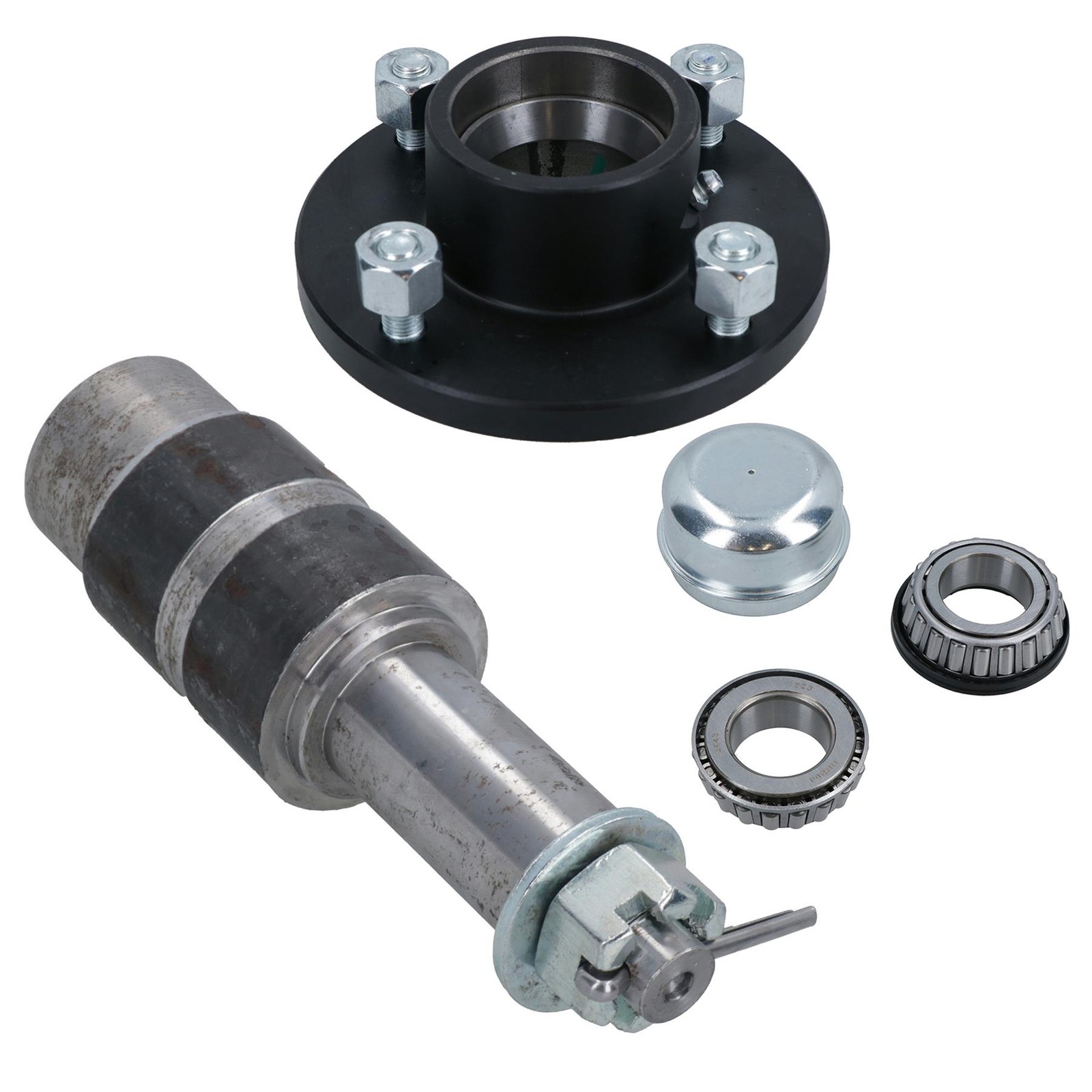

4 Inch PCD Trailer Trolley Wheel Hubs + Bearings With Weld On Stub Axle 1pk

AB Tools

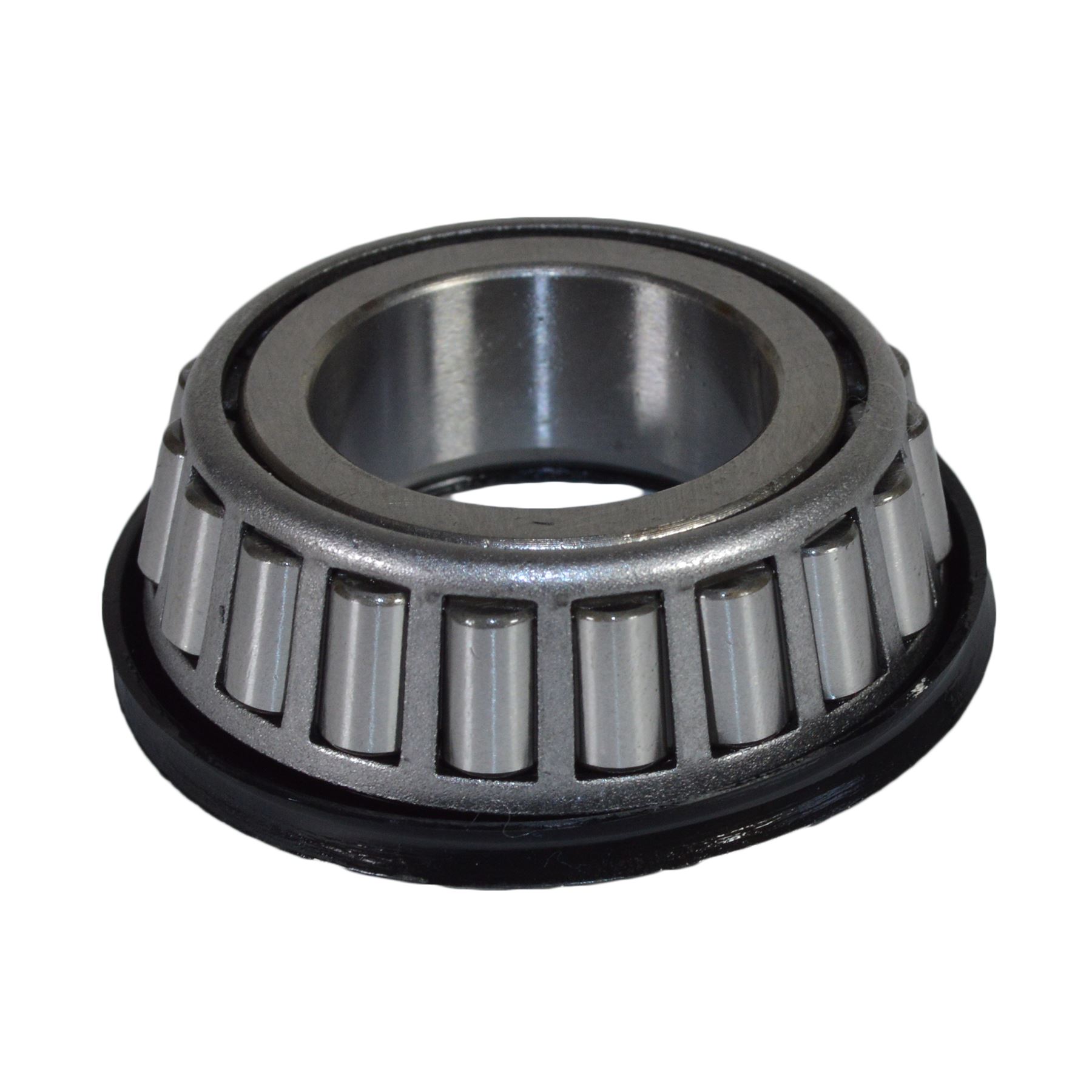

Trailer stub axle complete with 4 inch PCD cast wheel hubThis listing is for 1 x stub axle complete with 1 x hub and complete bearing setSTUB AXLE DESCRIPTIONStub axle which makes the item longer and kicks the hub away further from the side of the trailer Ideal for use when the wheels being replaced are wider like flotation tyres or the rim on the wheel is not centralised Ideal for building trailers or trolleysCan also be fitted to road trailers if fitted to a suitable suspension systemWeld on stub axleSolid steel for maximum strength and durabilityCan be welded onto as no coating on the stub axleSolid end that can be welded or bolted Ideal for sliding into box section for easy attachmentUp to a capacity of 750kg (per axle, so 2 stub axles) SPECIFICATIONS•Trailer stub axle •Total length (complete length) – 130mm•Stub axle shaft diameter – 1 inch / 25.4mm•Stub axle shaft length – 50mm•End of the stub axle dimensions – 37mm (W) x 25mm (H) •Material – Steel (heavy duty) CAST HUB DESCRIPTIONTaper roller bearing hubCast hub for maximum strength and durability4 stud hub with 4 inch PCD (PCD = Pitch centre Diameter – distance diagonally from one stud to another) Complete fitted with 3/8in wheel studsThe bearing races are already pressed into the hub meaning no specialist tools are required to fit the hubsThe hub is also fitted with a grease nipple and metal hub capLISTING INCLUDES THE FOLLOWING•1 x Cast Hub •1 x outer bearing (complete with seal) •1 x inner bearing•1 x hub cap•4 x 3/8in wheel nuts•1 x stub axle (complete with castle nut, washer and split pin).
