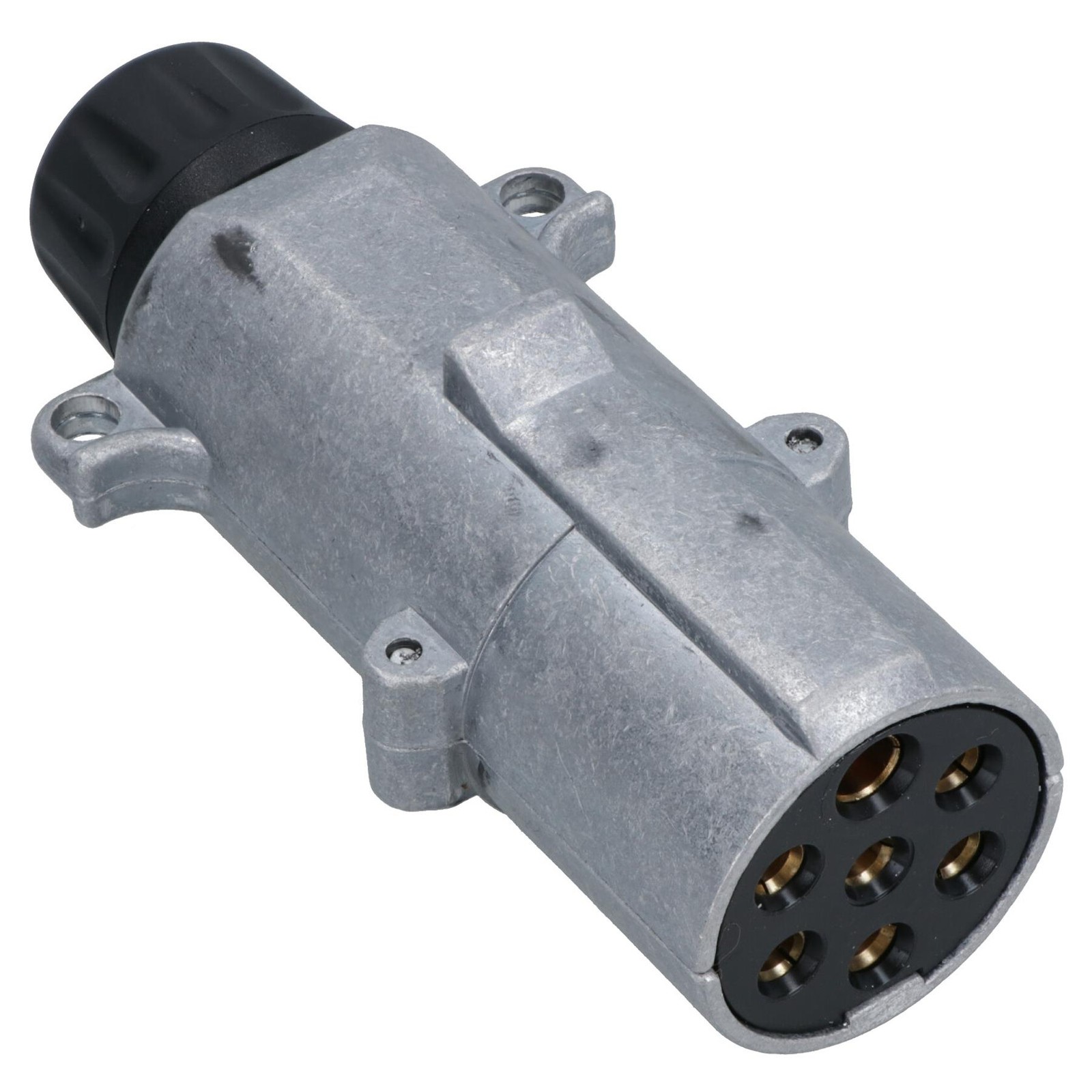

24V 7 Pin N Type Trailer Plug & Socket for HGV Commercial Vehicles Aluminium
AB Tools
24V 7 Pin N Type Trailer Plug & Socket for HGV Commercial Vehicles Aluminium\n\n \n\nDescription\n\nProfessional 7 pin trailer plug and socket for commercial and larger vehicles. \n\n Both plug and socket supplied. \n\n 24v 7 pin comercial style. \n\n High quality design, ideal for daily use on commercial and agricultural vehicles. \n\n Robust aluminium construction. \n\n Nickel plated screw terminals for a better electrical connection and superior corrosion resistance over brass pins. \n\n Designed for 7 core cable up to 11.5mm overall diameter. \n\n Designed to conform to ISO 1185 standards\n\n Wiring Guide\n Pin 1 - White Wire - Earth. \n Pin 2 - Black Wire - Left Side/Tail Light.\n Pin 3 - Yellow Wire - Left Indicator. \n Pin 4 - Red Wire - Stop/Brake light. \n Pin 5 - Green - Right Indicator. \n Pin 6 - Brown - Right Side/Tail Light. \n Pin 7 - Blue - Trailer Brake Control.
