Mains AC PDU 12v DC Power Supply Battery Charger w/ RCD Fusebox Motorhome ME5.1

Name: Mains AC PDU 12v DC Power Supply Battery Charger w/ RCD Fusebox Motorhome ME5.1
Brand: Powerpart

Powerpart

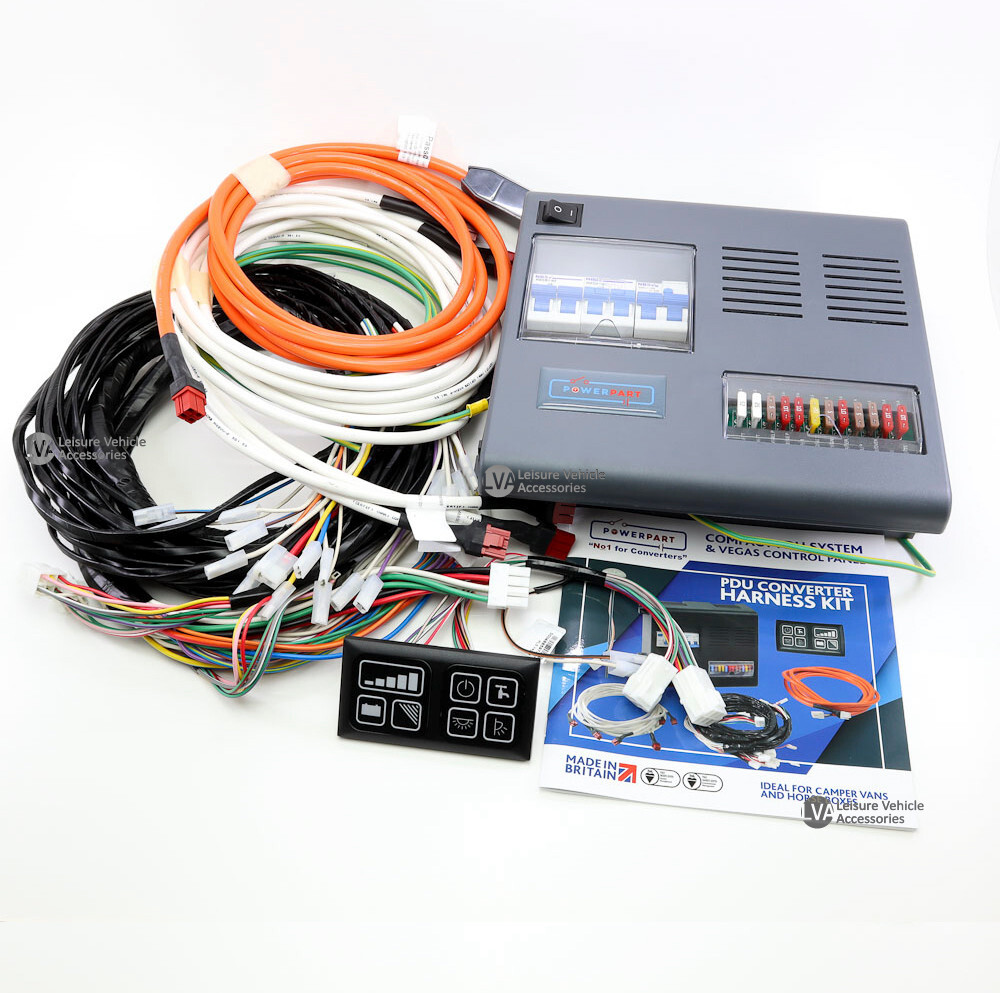

NOTE: This is for the PDU kit as shown in the first three photos. Photos of other products are for illustrative purposes only\n\n--------------------\n\nITEM DESCRIPTION\n\nThis is a pre-wired Power Distribution Unit (PDU), with inbuilt RCB/MCB and fuse box with inbuilt mains to 12v conversion\n\nThe PDU has a 230V input to a 25amp RCD that provides four 230V outputs for sockets and appliances through a 16-amp MCB.\n\nIt also has a 6amp MCB for the 10amp power supply which converters 230V to 12V\n\nThere are 12 separate fuse protected outputs for: Auxiliary, Lights, Hob/Oven, Heater, Pump/toilet, Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery\n\nThe wiring harness has 300mm ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths that feed: x2 lights, x2 Auxiliary, 12V fridge, Heater, Hob/Oven, Toilet, Pump and a 2m length to the Control Panel.\n\nThe Vegas cO
