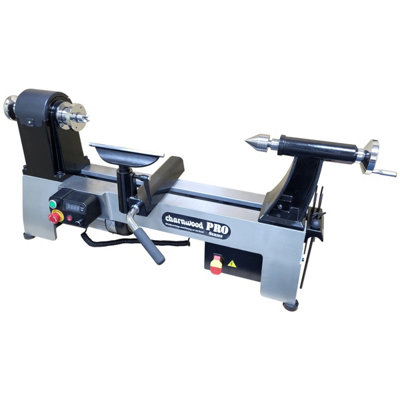

Charnwood 1421Vf Variable Speed Lathe With Vfd InverterMagnetic Switch1100W from B&Q

Charnwood

1100w Induction MotorVariable Speed Up To 3550rpmControlled By A VFD Inverter For Maximum Torque At Low SpeedsForward And Reverse DirectionDigital Speed Display18″ Spindle Capacity14″ Bowl Capacity24 Position Spindle IndexingCast Iron Bed, Headstock, Banjo And TailstockMagnetic Switch Box – Position AnywhereOutboard Turning Option (Requires Extension Bed)Supplied with onboard tool storage, 4 prong drive centre, revolving tail centre, 80mm diameter face plate, knock out bar, 2 x 41mm spindle spanners, adjustable rubber feet, 2.0m power cable and UK 3 pin plug.>br>SpecificationMax. Spindle Length (Without Centres) 565mm (22")Max. Spindle Length (With Centres Fitted) 465mm (18.5")Max. Spindle Length (With Centres Fitted) With Optional Extension Bed 808mm (32")Swing Over Bed (Max. Bowl Diameter) 368mm (14.5")Swing Over Banjo (Max. Bowl Diameter) 268mm (10.5")Outboard Capacity (With Optional Extension Bed) 468mm (18")Motor (Induction) 1100w / 240v / 50hzIndexing Positions 24 (Every 15 degrees)Speed Range (Forward & Reverse) High Torque 60 - 1500rpm / Low Torque 145 - 3550rpmInboard Spindle Thread Size M33 x 3.5 RHOutboard Spindle Thread Size M33 x 3.5 RHHead And Tailstock Tapers 2MTHeadstock And Tailstock Through Bore 10mm (3/8")Tailstock Quill Travel (Auto centre removal) 100mm (4")Bed Surface Depth 155mmBench Top to Spindle Centre 405mmTool Rest Post Diameter 25.4mm (1")Tool Rest Crossbar Length 200mm (8")Footprint of Base 880mm x 230mmAssembled Dimensions Without Extension Bed (WxDxH) 1080mm x 420mm x 480mmShipping Dimensions (WxDxH) 980mm x 300mm x 575mmWeight (Net / Gross) 57kg / 69kgAssembly Time Required 15 minutesProduct Rating TradeProduct Guarantee 5 Years.
