Charnwood Woodturning Scroll Chuck Complete Package For Wood Lathes

Charnwood

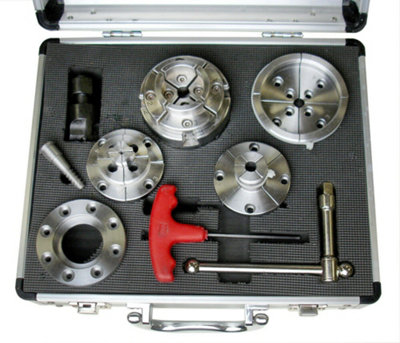

The most comprehensive woodturners chuck package available. The package consists of:NEXUS3R Geared Scroll Chuck with M33 x 3.5 ThreadStandard Dovetail JawsPin JawsStepped JawsWide JawsFace Plate4 Prong Drive centreWood ScrewT Handle Square DriveT Handle Hex KeyAluminium Storage CaseThe Nexus3R chuck offers wide compatibility with other chucks on the market. A 4″ sized scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Midi sized lathes and upwards. The fully enclosed design prevents the build up of chips and dust inside the gear mechanism.The chuck fits directly onto lathes with headstock thread size M33x3.5. For all other sizes an optional insert is required.The locking screws allow the chuck to be locked onto the lathe spindle. Reverse direction should only be used when the chuck is mounted directly onto an M33 x 3.5 spindle thread. It should not be used in reverse when using a thread adapter.SpecificationDirect Mounting ThreadM33 x 3.5Chuck Body Diameter95mmStandard Jaws Expand from53mm to 80mmStandard Jaws Contract from68mm to 41mmJaw Travel27mmMinimum Headstock Thread Length30mmWeight2165gTHIS LATHE CHUCK MOUNTS DIRECTLY ONTO A LATHE WITH A SPINDLE THREAD SIZE OF M33 X 3.5. PLEASE CHECK THE SIZE OF YOUR LATHE SPINDLE BEFORE ORDERING. Optional thread adaptors are available to mount this chuck onto a lathe with a spindle thread size of :Thread Size / Part number3/4" x 16tpi / VIPERID.3/4" x 10tpi / VIPERIK.1" x 8tpi / VIPERIA.1" x 10tpi / VIPERIF.1" x 12tpi / VIPERIG.1.1/8" x 12tpi / VIPERIM.1.1/4" x 8tpi / VIPERIE.M18 x 2.5mm / VIPERIH.M20 x 2.0mm / VIPERII.M25 x 2.0mm / VIPERIJ.M30 x 3.5mm / VIPERIN.
