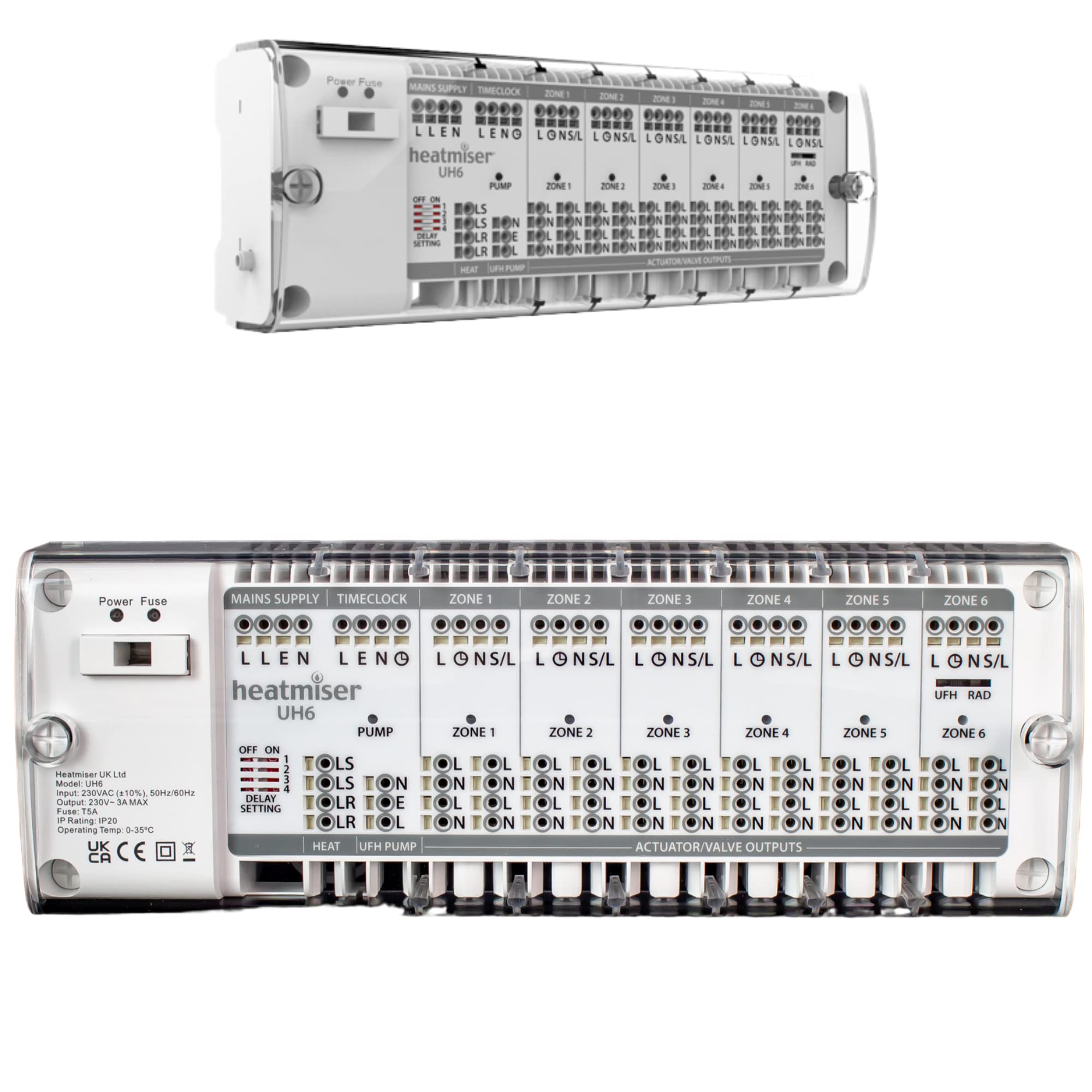

Heatmiser UH6 Compact 6 Zone 230v Wiring Centre for Water Underfloor Heating

Heatmiser

The Heatmiser Uh6 is our 6 Zone underfloor heating wiring centre designed to work with our 230v Thermostats. When there’s a demand it is possible to set a timed delay, before activating the Pump & Heat outputs The Uh6 wiring centre provides central switching and is therefore ideally situated next to the underfloor heating manifold. On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers. During hot weather the heating may not be required as often, which means after long periods of the Ufh pump not being used, the pump can seize and refuse to operate. To prevent this, it is good practice to operate the pump once a day, the creepage function does this for you. Once enabled the Uh6 wiring centre will operate the pump for 1 minute, only if the outputs have not been operated by a thermostat, within the preceding 24 hours. This function does not operate the Heat output. The Heatmiser Uh-6 Wiring Centre is a central control unit designed to streamline the installation and management of heating systems in residential or commercial buildings. It provides a compact and organized solution for connecting and controlling up to 6 zones, simplifying the wiring process and ensuring efficient operation. The Uh-6 Wiring Centre incorporates clear and labeled terminals, allowing straightforward wiring connections and minimizing the risk of errors during installation. It features an intuitive interface with an easy-to-read display, enabling quick access to system settings, zone configurations, and temperature adjustments.
