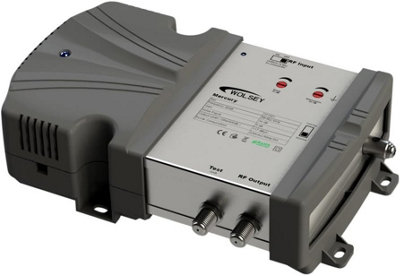

Triax Wolsey Mercury Distribution Launch Amplifier 371006 from B&Q

Triax Wolsey Mercury Distribution Launch Amplifier 371006 from B&Q

Triax

Frequency range 88-862MHz Gain & Flatness 34 dB 1 dB Attenuation Range 0~20 dB Rejection at 790MHz and 862MHz -18 dB Slope Control 0~15 dB Max. Noise Figure 5dB Max. Output Level ( DIN45004B ) 117 dBμV Return Loss 10dB(QC)/12dB(TYP.)Switch for 790MHz & 862MHz Yes Power Supply Unit (Internal) Thermal Fuse on Primary winding 230VAC/50Hz/5W Power Supply Indicator light Blue LED Connectors according to IEC169-24 input F-female output F-female Test -30dB Port Yes Nominal impedance input and output 75Ω On/Off Power Output For Preamplifier (With Short Circuit Protection) 12VDC 0.1A Max. Power Output For Preamplifier Overload Indicator light Green:NormalOrange:Fault Equipment approval CE/RoHS/WEEE.

Compare prices (2 shops)

Sort: Price: lowest first Price: highest first
shop Price Action
CPC 61,80 GBP Go to shop
89,99 GBP Go to shop
