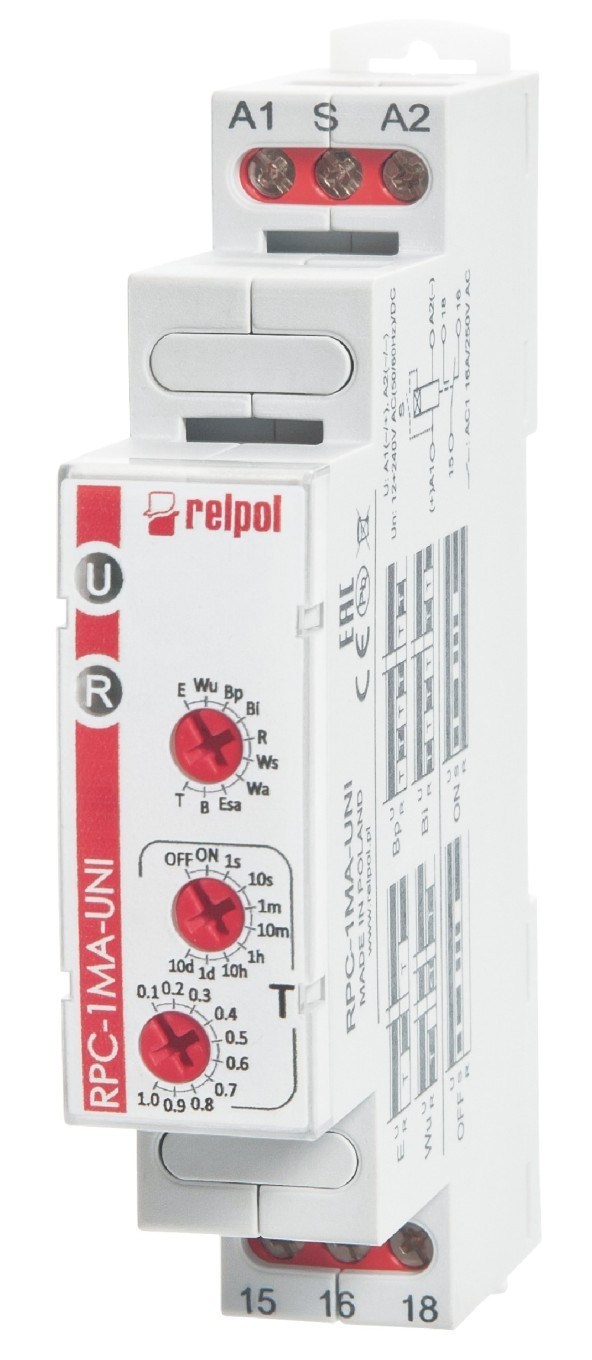

1P time relay 1sec-10day 12-240V AC/DC 50/60 RPC 863181

Name: 1P time relay 1sec-10day 12-240V AC/DC 50/60 RPC 863181
Brand: RELPOL Żary

RELPOL Żary

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\n1P time relay 1sec-10days 12-240V AC/DC 50/60Hz multifunction RPC-1MA-UNI 863181\nRELPOL Heat\nMPN : 863181\nEAN: 5900005230219\nHeight: 90\nUS rated control voltage for AC 50Hz [V] from: 12\nUS Rated Control Voltage for AC 50Hz [V] to: 240\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\nHeight [mm]90mm\nDepth [mm]64.5mm\nUS rated control voltage for AC 50Hz [V] from12V\nUS rated control voltage for AC 50Hz [V] to240V\nUS rated control voltage for DC [V] from12V\nUS rated control voltage for DC [V] to240V\nUS rated control voltage for AC 60Hz [V] from12V\nUS rated control voltage for AC 60Hz [V] to240V\nTime setting range [s] from1s\nTime setting range [s] to864000s\nWidth [mm]17.5mm\nNumber of emergency exits, rotary contact0\nNumber of emergency outputs, terminal contact0\nNumber of emergency outputs, switching contact1\nType of Control VoltageAC/DC\nDelayed Power OnYes\nDe.
