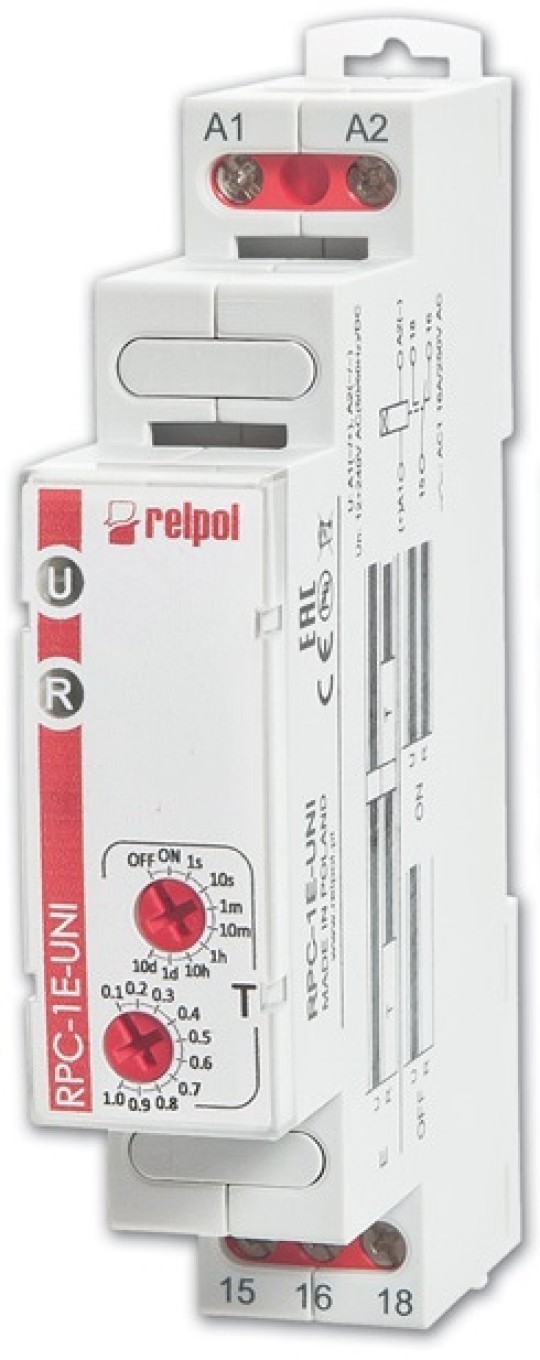

1P Time Relay 1sec-10day 12-240V AC/DC 50/60Hz 863195

Name: 1P Time Relay 1sec-10day 12-240V AC/DC 50/60Hz 863195
Brand: RELPOL Żary

RELPOL Żary

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\n1P time relay 1sec-10 days 12-240V AC/DC 50/60Hz cycle operation from pause RPC-1BP-UNI 863195\nRELPOL Heat\nMPN : 863195\nEAN: 5900005230639\nHeight: 90\nUS rated control voltage for AC 60Hz [V] from: 12\nWidth: 17.5\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\nNumber of emergency outputs, switching contact1\nType of electrical connectionFitting\nDelayed Power OnNo\nType of Control VoltageAC/DC\nNumber of emergency outputs, terminal contact0\nNumber of emergency exits, rotary contact0\nDepth [mm]64.5mm\nHeight [mm]90mm\nUS rated control voltage for AC 60Hz [V] from12V\nWidth [mm]17.5mm\nTime setting range [s] to864000s\nTime setting range [s] from1s\nUS rated control voltage for AC 60Hz [V] to240V\nUS rated control voltage for DC [V] to240V\nUS rated control voltage for DC [V] from12V\nUS rated control voltage for AC 50Hz [V] to240V\nUS rated control voltage for AC 50Hz [.
