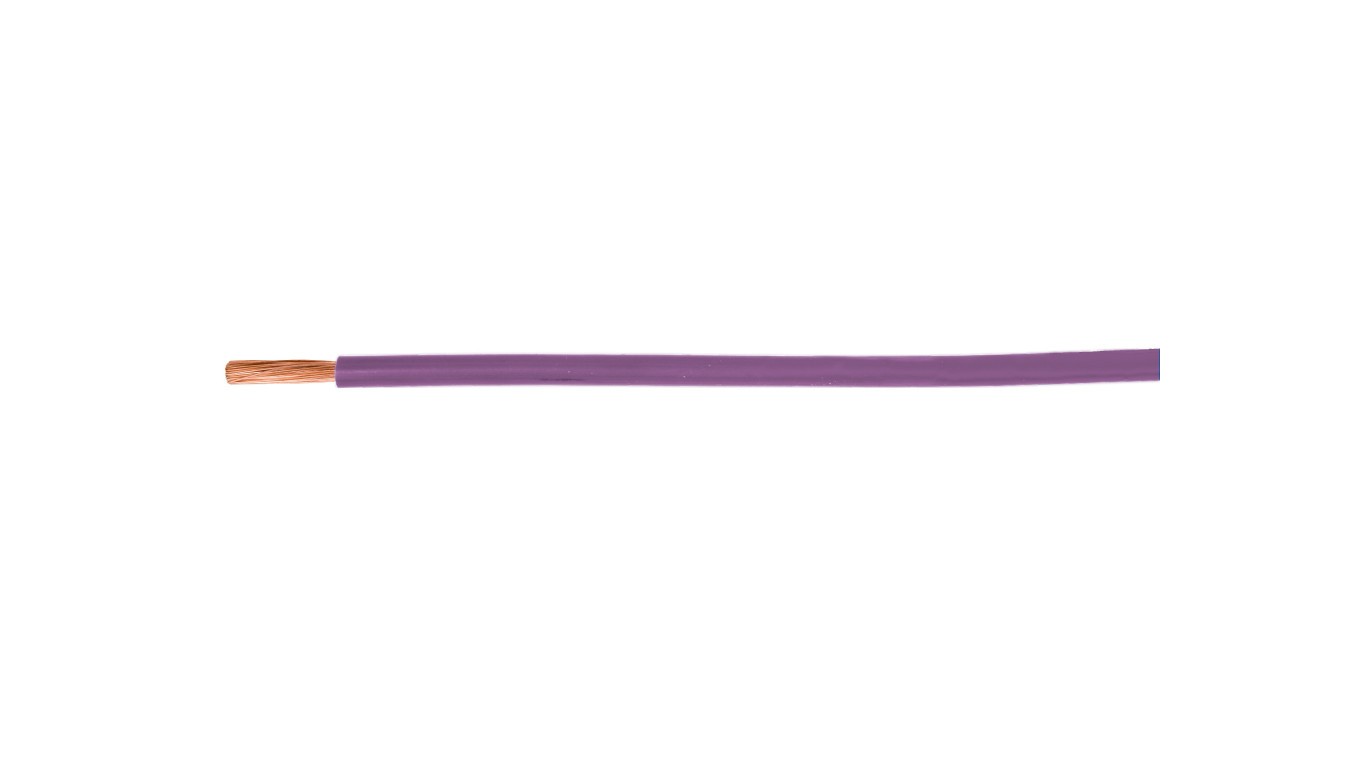

Installation Cable H07V-K/ LGY 750V LgY_1.5_fio_750V_100

Name: Installation Cable H07V-K/ LGY 750V LgY_1.5_fio_750V_100
Brand: TEXSIM

TEXSIM

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nInstallation cable H07V-K (LgY) 1.5 purple /100m/\nTEXSIM\nMPN : LgY_1.5_fio_750V_100\nEAN: 5902304041268\nApproximate Cable Weight: 19\nApproximate Outside Diameter: 3,6000\nRated Voltage U: 750\n\nPrice per 1 ring (100m)\nTechnical parameters\nParametersValue\nLow temperature resistant (according to EN 60811-1-4)No\nLow smoke emission (according to EN 61034-2)No\nOil-resistant (according to EN 60811-2-1)No\nHalogen-free EN 50267-2-2No\nFlame ProofAccording to EN 60332-1-2\nCore InsulationPVC\nColour of insulationMagenta / Purple\nScreenNo\nCore GradeClass 5 = Flexible\nApproximate Cable Weight [kg/km]19kg/km\nNominal cross section of core [mm\u00B2]1,5000 mm\u00B2\nApproximate Outer Diameter [mm]3,6000mm\nRated Voltage U [V]750V\nRated voltage U0 [V]450V\nPermissible temperature of the fixed cable [\u00B0C] to70\u00B0C\nPermissible temperature of the fixed cable [\u00B0C] from-40\u00.
