Fnirsi Ctg-20 Car Paint Coating Thickness Gauge from B&Q

Fnirsi

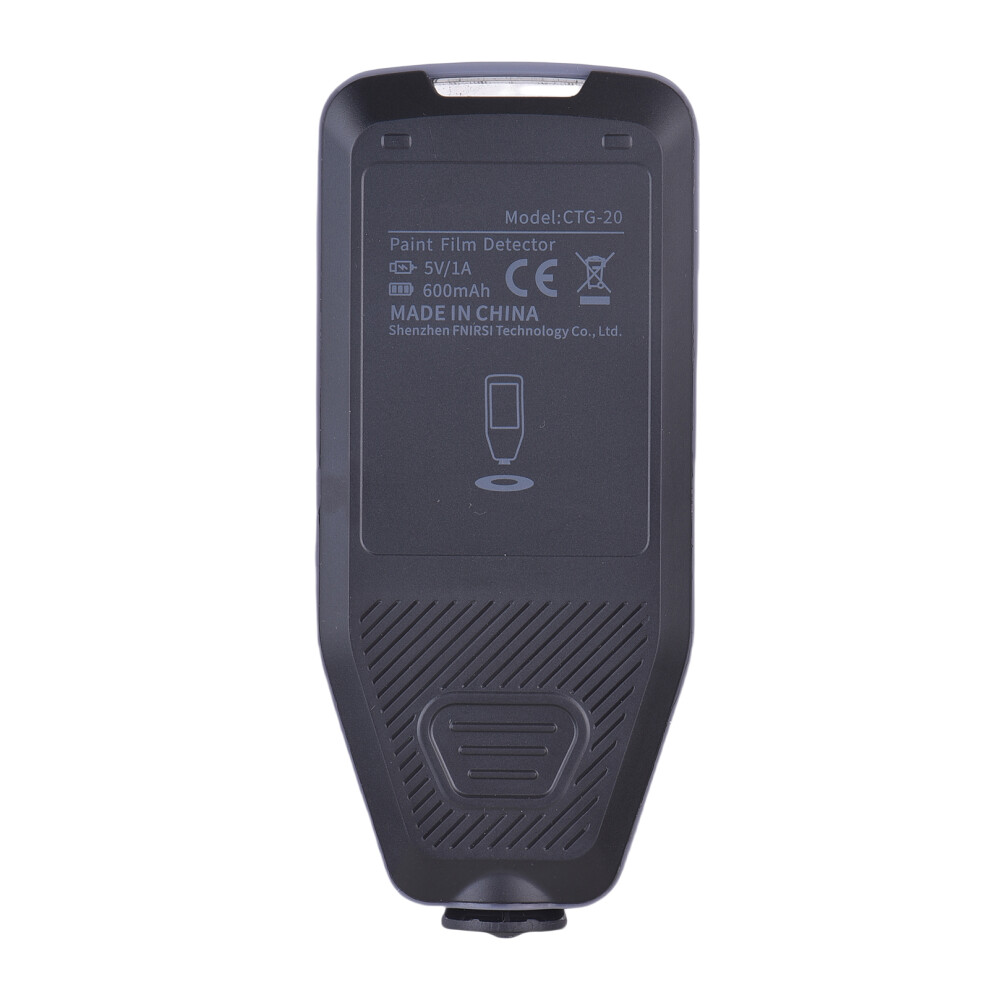

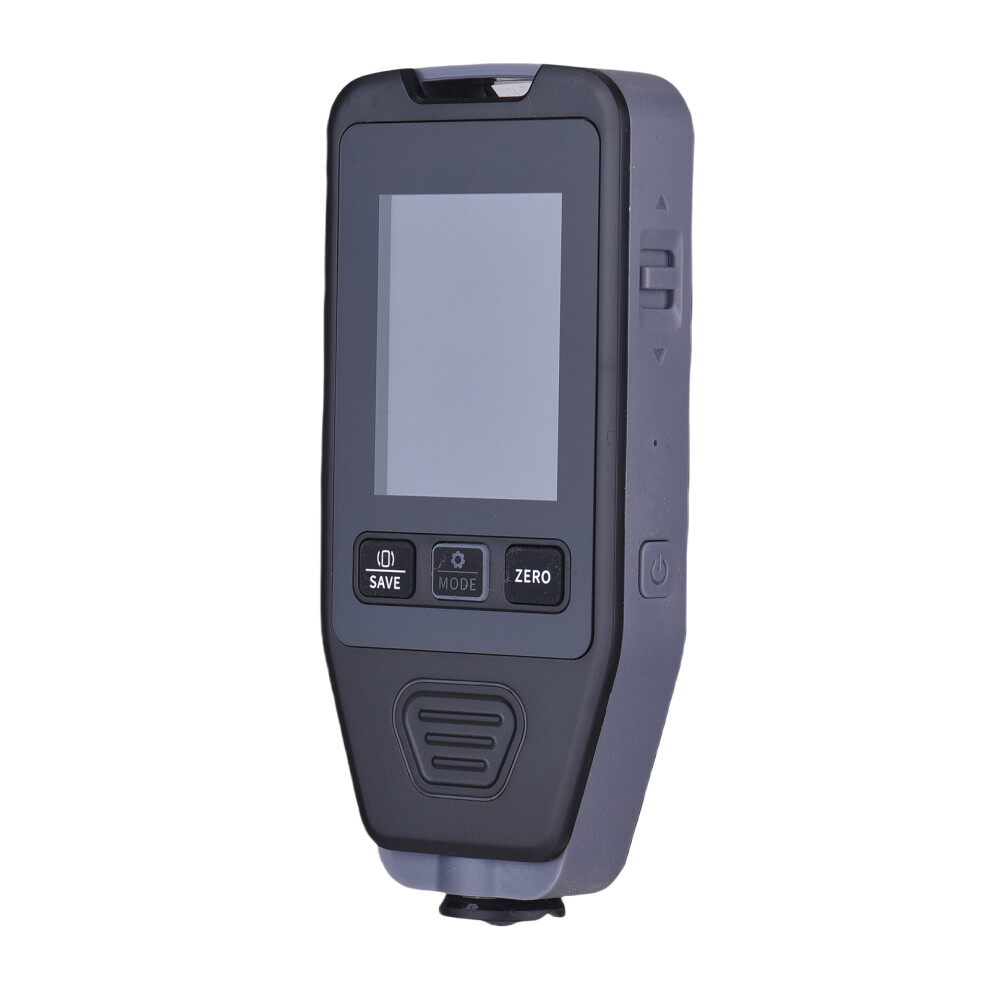

FNIRSI CTG-20 Car Paint Coating Thickness Gauge  FNIRSI CTG-20 is a professional-grade coating thickness gauge designed to measure the thickness of coatings on various metal surfaces. With its high-precision sensor and user-friendly features, it is an essential tool for professionals in manufacturing, chemical industries, automotive testing, and more. Key Capabilities: Measures non-magnetic coatings (e.g., paint) on magnetic materials like steel or iron. Measures coatings on non-magnetic materials like aluminum. Employs electromagnetic induction and eddy current technology for precise results. Features non-destructive measurement, ensuring no damage to tested surfaces. Specifications: Measuring Range: 0–1400 μm Accuracy: ±3% + 2 μm Resolution Ratio: 0.1 μm Calibration: Zero point and multi-point Minimum Curvature Radius: Convex: 5 mm Concave: 25 mm Minimum Measurement Area Diameter: 20 mm Operating Temperature: -10℃ to +50℃ Humidity Range: 20%–90% RH Battery: 600 mAh lithium (rechargeable) Dimensions: 115 x 48 x 18 mm Weight: Approx. 83 g Additional Features: Data storage for measurement records Support for putty powder tests Rotatable screen for convenient viewing Auto power-off for energy saving Advantages: Fast and highly accurate measurements Non-destructive testing method Compatible with various coatings and materials Usage Notes: Avoid testing surfaces with steep curvature or roughness. Ensure the measurement area is at least 20 mm in diameter. Keep the device away from strong magnetic fields during operation. Stabilize temperature and humidity in the working environment. Charge the battery when it is low for uninterrupted use. FNIRSI CTG-20 offers a balance of precision, ease of use, and reliability, making it the perfect choice for professionals who require accurate coating measurements.
