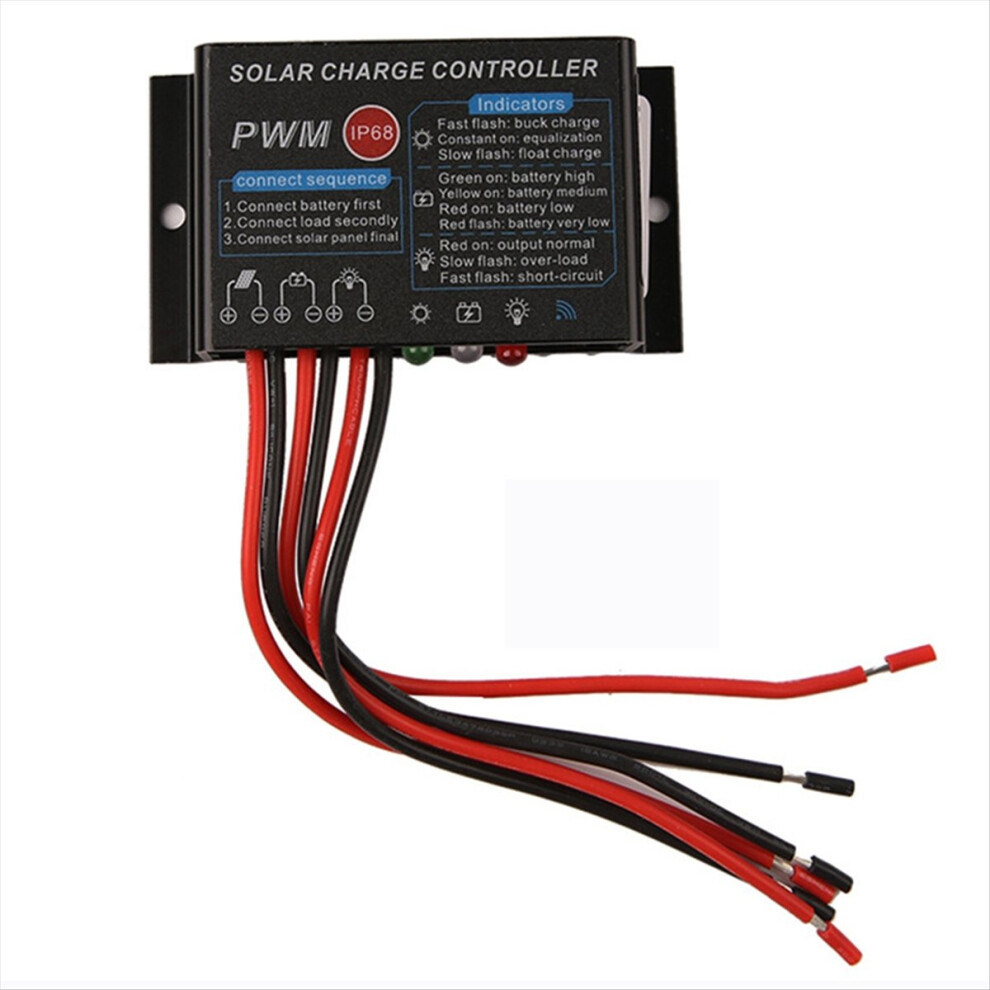

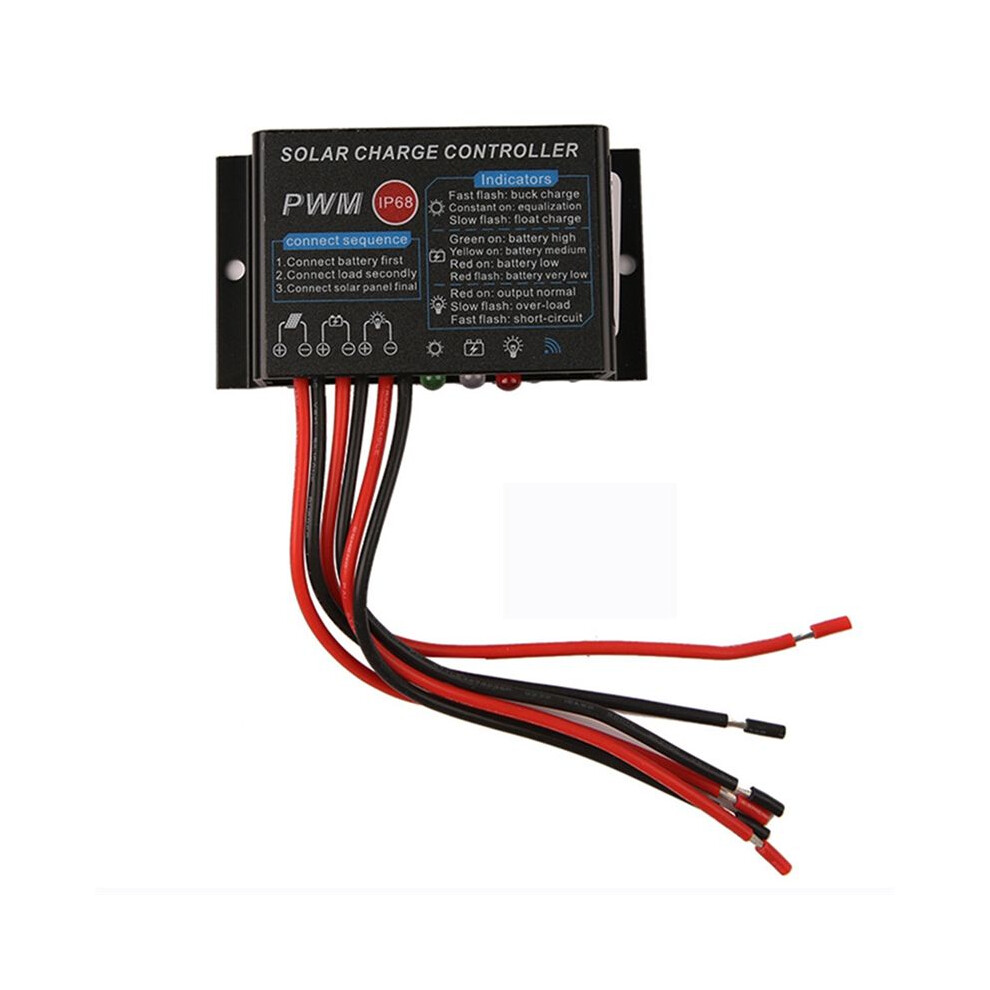

Lobamop 10A 12V IP67 Solar Controller Waterproof Solar Charge Controller PWM Solar Panel Charge Controller
Lobamop
1. After the controller is turned on, first detects the type of battery voltage. If the battery voltage is below 18 V, it is recognized as a 12 V system. If this is above 18 V, it is recognised as a 24 V system 3. After setting the battery type, select the working mode of the load. The system (24 hours) is in the normally open of the load. This means that the load output is directly on (unless the low battery protection). 2. After the user has determined the system voltage, the remote control can point to the infrared receiver, press the desired battery type and the blue light flashes. The setting is completed without restarting. The light control () indicates that the load is switched off during the day and switched on at night, and 1-13 indicates that the load is switched on at night and delayed 1-13 hours before it is switched off. One of the last two is used for solar lighting systems that can achieve unmanned automatic monitoring and control 4. If it is necessary to temporarily turn the load on or off, press manually (H), switch to manual and then press 0N/0FF to switch the load manually. It is generally used to test whether the connection of the load is correct
