Littimoon DIY Electronic Kit Soldering Project Practice 64 SMD LED Patch Matrix Advertising Screen Number Display
Littimoon

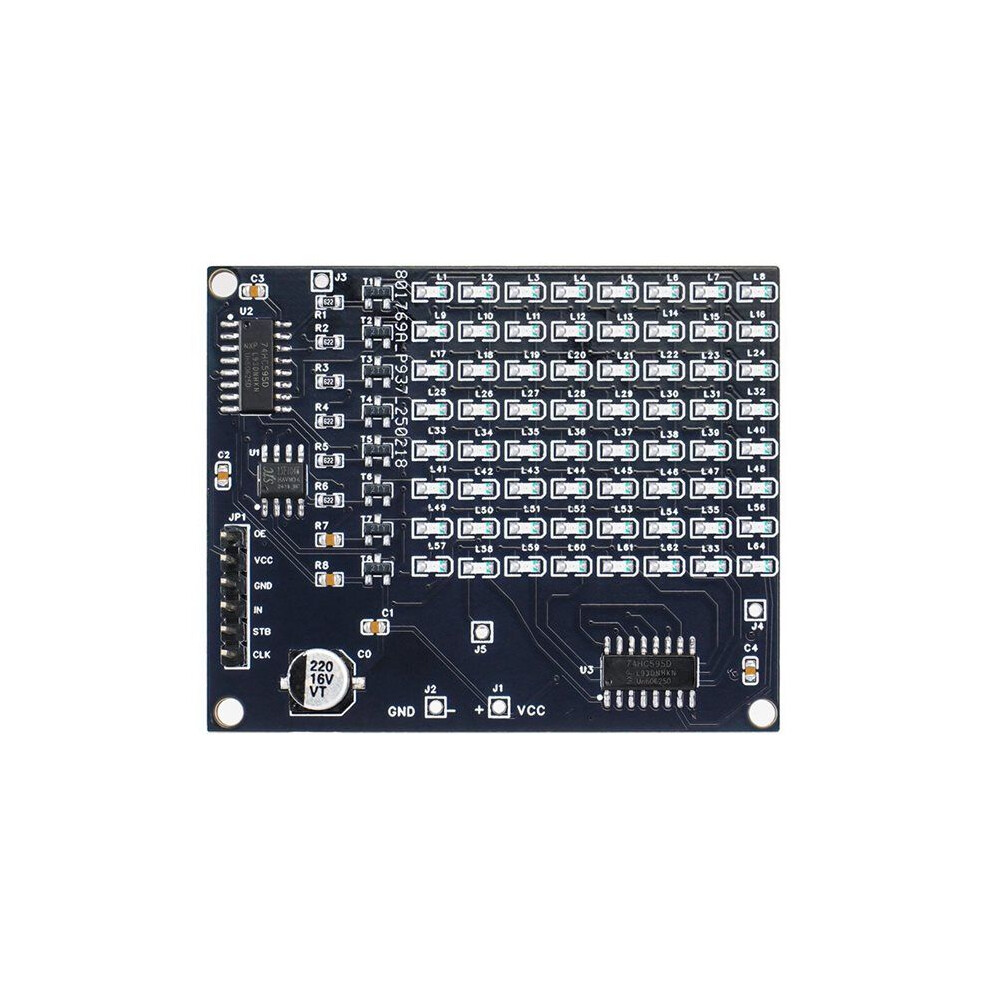

The boot display method is: light up line by line → light up the entire screen and flash twice → display the "You're Good" character advertisement in sequence → peach heart flashes three times. To change the display content, you can bypass soldering to the MCU and connect control signals to JP1 to display any desired content. Circuit principle: The control core of the circuit is the microcontroller U1, which continuously transmits line scan data to U2 and U3 through a written program, and displays data to U4 and U5, thereby controlling the display screen to display corresponding patterns in a regular manner. This kit consists of 64 0805 SMD LED display units, using a row and column scanning method, which can display any character of 64 pixels. The kit comes with a microcontroller that has already burned the program and automatically plays the light animation when powered. Note: This is DIY kit, not a finished product. You need to solder it yourself., Manufacturer: Littimoon
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
3,96 GBP | Go to shop |
