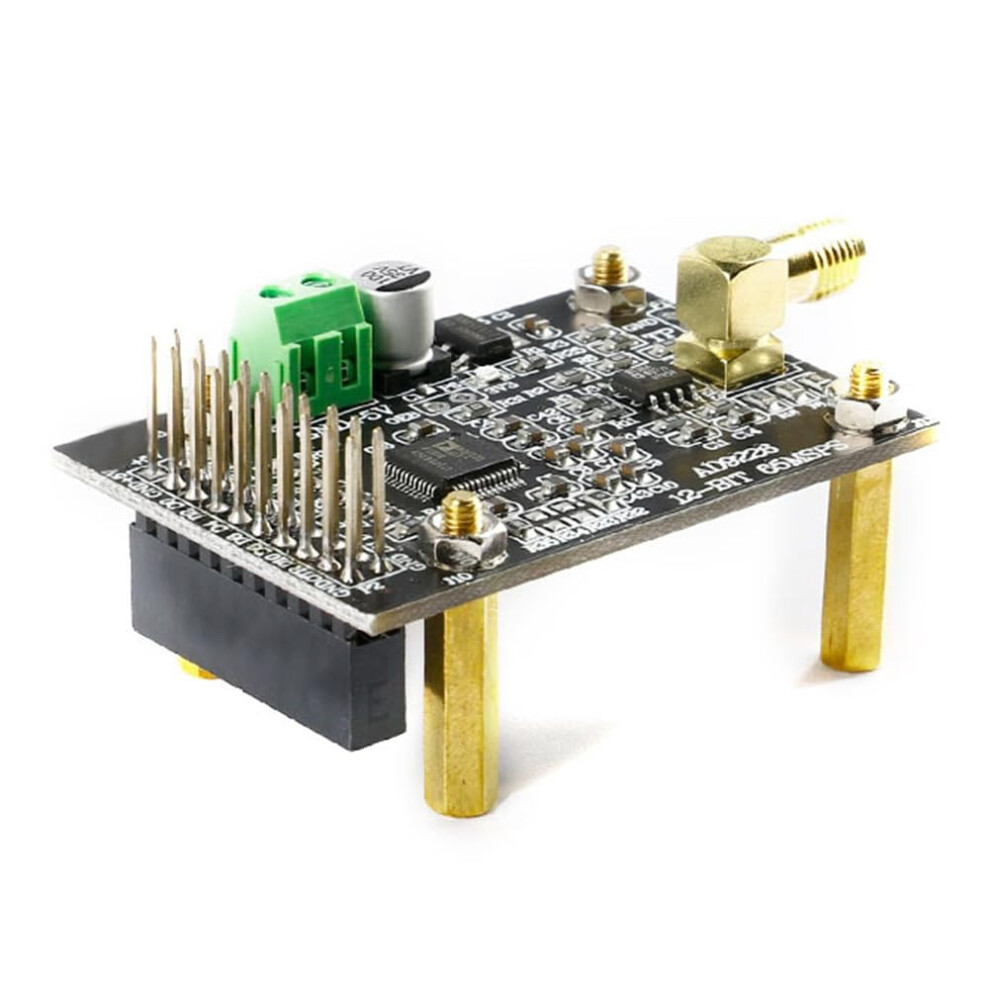

AD9226 ADC Acquisition Analog To Digital Converter FPGA Development Board
Q-BAIHE
Title\uFF1A\nAD9226 ADC Module 65M Acquisition Analog-to-Digital Converter FPGA Development Board Supporting\n\nModule model: \n\nAD9226\n\nModule type: \nAnalog to digital conversion module\n\nSampling rate: \n65M SPS (MAX)\nADC resolution bits: \n12 bits\n\nInput voltage range: \n10VPP (\u00B15V)\nPower supply: \nDC 5V\n\nProvide routines: \nVerilog FPGA source code\nExample platform: \nQuartusII EP4CE15F17C8\n\nCommunication protocol: \n13-bit parallel SPI\nCommunication signal level: \n3.3V\n\nInput impedance: \n50 ohms\nNumber of input channels: \n1 channel\n\nInput interface: \nSMA tuner/XH2.54 hole\nReference voltage: \ninternal 2V\n\n-3dB analog bandwidth: \n320MHz\nOutput mode: \nParallel data\n\nModule features: \nHigh-speed ADC acquisition\nModule application: \nHigh-speed signal acquisition\n\nModule interface type: \n13-bit data SPI parallel\nModule size: \n54X37X23mm\n\nP:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
44,51 GBP | Go to shop |
