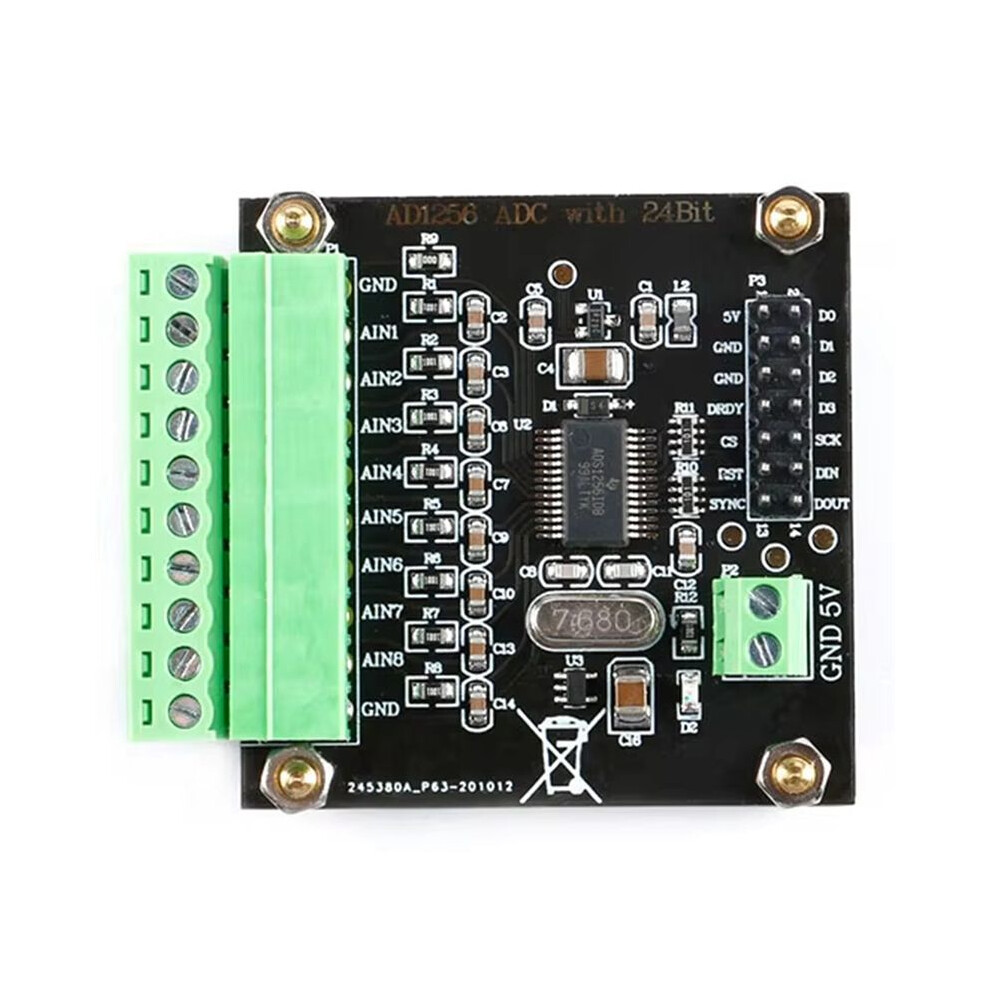

ADS1256 24-Bit High Precision ADC Data Acquisition Analog To Digital Converter
Q-BAIHE
Title\uFF1A\nADS1256 Module 24-Bit ADC Data Acquisition Card ADC High Precision ADC Acquisition Analog To Digital Converter\n\nModule model: \n\nADS1256\n\nModule type: \nAnalog to digital conversion module\n\nModule power supply voltage:\nDC5V\nModule current:\n15mA (MAX)\n\nModule communication protocol: \nSPI serial\nModule provides routines: \nSTM32F103RBT6\n\nExample platform: \nSTM32F103X-M3\nModule control signal level: \n3.3V\n\nModule input voltage range: \n0-5V\nInput impedance: \n1M ohm\n\nADC resolution bits: \n24 bits (18 effective bits)\nSampling rate: \n30MSPS (single channel does not switch up to 30K, the sampling rate is reduced when using multiple channels)\n\nNumber of input channels: \n8 channels single-ended, 4 channels are differential\nModule access port: \n3.81-10PIN terminal block\n\nReference voltage:\ninternal 2.5V (weldable SOT-23 package external input reference)\nPGA mode: \n1 times, 2 time:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
44,22 GBP | Go to shop |
