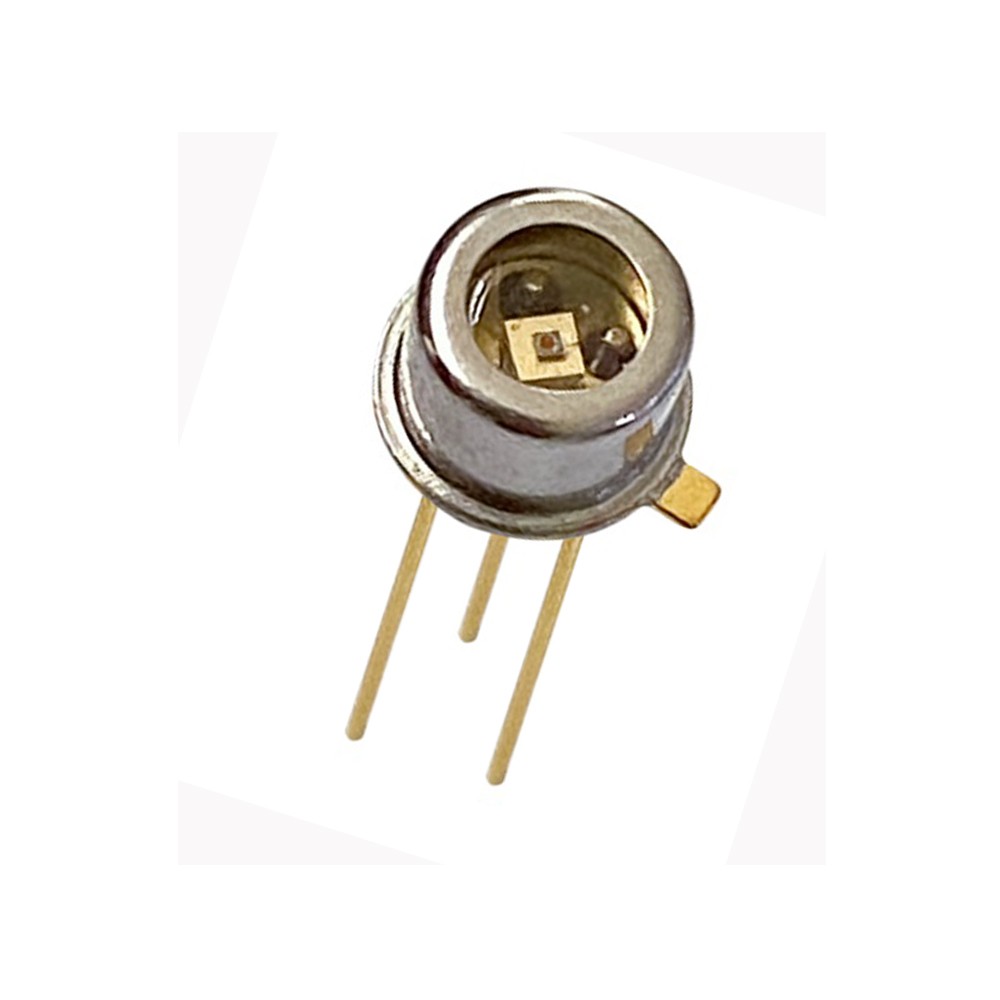

400-1700nm 0.3mm InGaAs PIN Photodiode With 3mm flat Wwindow Package:TO-46

Name: 400-1700nm 0.3mm InGaAs PIN Photodiode With 3mm flat Wwindow Package:TO-46
Brand: Q-BAIHE

Q-BAIHE

Title\uFF1A\n400-1700nm 0.3mm InGaAs PIN Photodiode With 3mm flat Wwindow Package:TO-46\n\nSpecifications:\n\nDescription\uFF1A400-1100nm 4.2mm Silicon PIN Photodiode 3 Pin-out TO-5\nPackage / Case\uFF1A3mm flat window TO-46\nSpectral Range\uFF1A400-1700nm\nActive area\uFF1A0.3mm\nResponsivity\uFF1ARe(Vr=0V\uFF0C\u03BB=405nm,1mW)=0.08 A/W\nResponsivity\uFF1ARe(Vr=0V\uFF0C\u03BB=650nm,1mW)=0.38 A/W\nResponsivity\uFF1ARe(Vr=0V\uFF0C\u03BB=850nm,1mW)=0.45 A/W\nResponsivity\uFF1ARe(Vr=0V\uFF0C\u03BB=1550nm,1mW)=0.90 A/W\nDark Current(Typical)\uFF1AId(Vr=0V)=0.05 nA\nDark Current(Typical)\uFF1AId(Vr=5V)=0.2 nA\nSaturated Power\uFF1APs(Vr=5V)=4 mW\nOperating temperature\uFF1A-40~+85\u2103\n\nFeature\uFF1A\nThe InGaAs PIN Photodiode TO-46 offers a spectral range of 400-1700nm and an active diameter of 0.3mm, ensuring high responsivity across multiple wavelengths (e.g., 0.90 A W at 1550nm). With a low dark current (0.05 nA typical at Vr=0V) and robust operating temperature range (-40\uFF5E+8:
