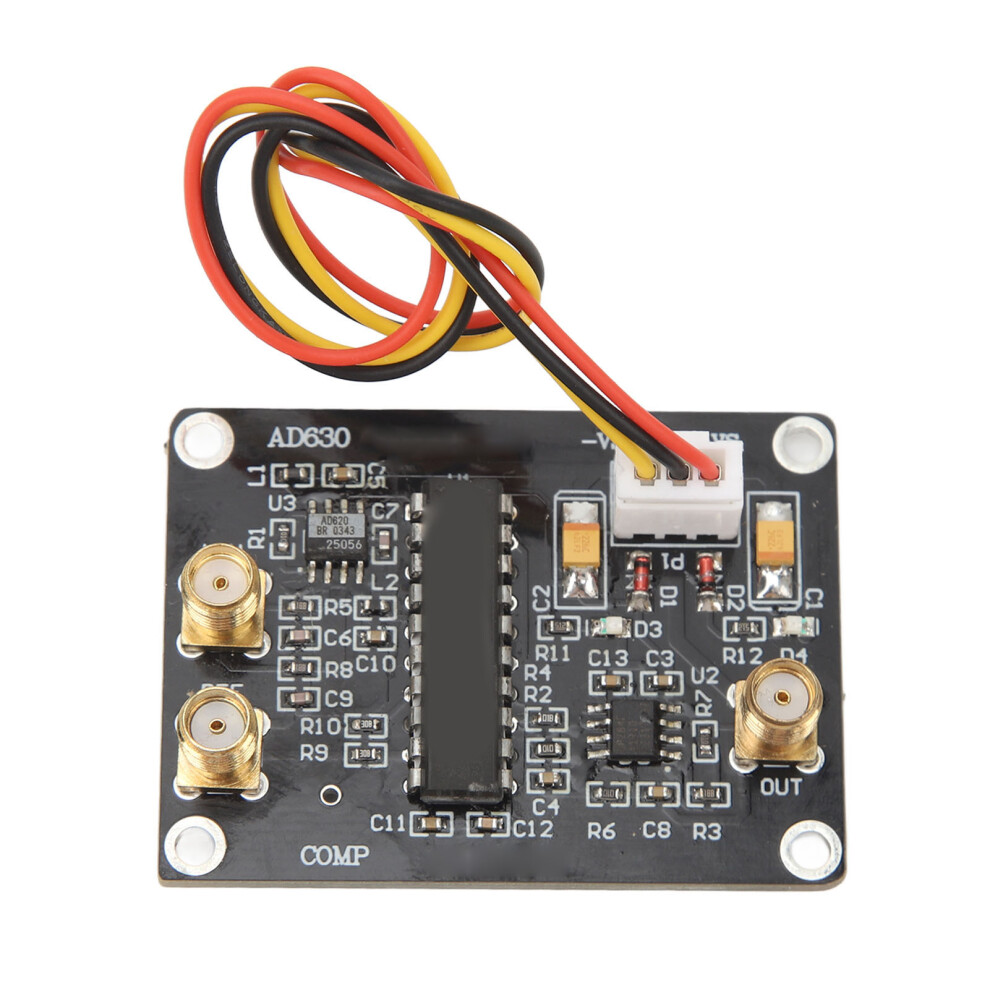

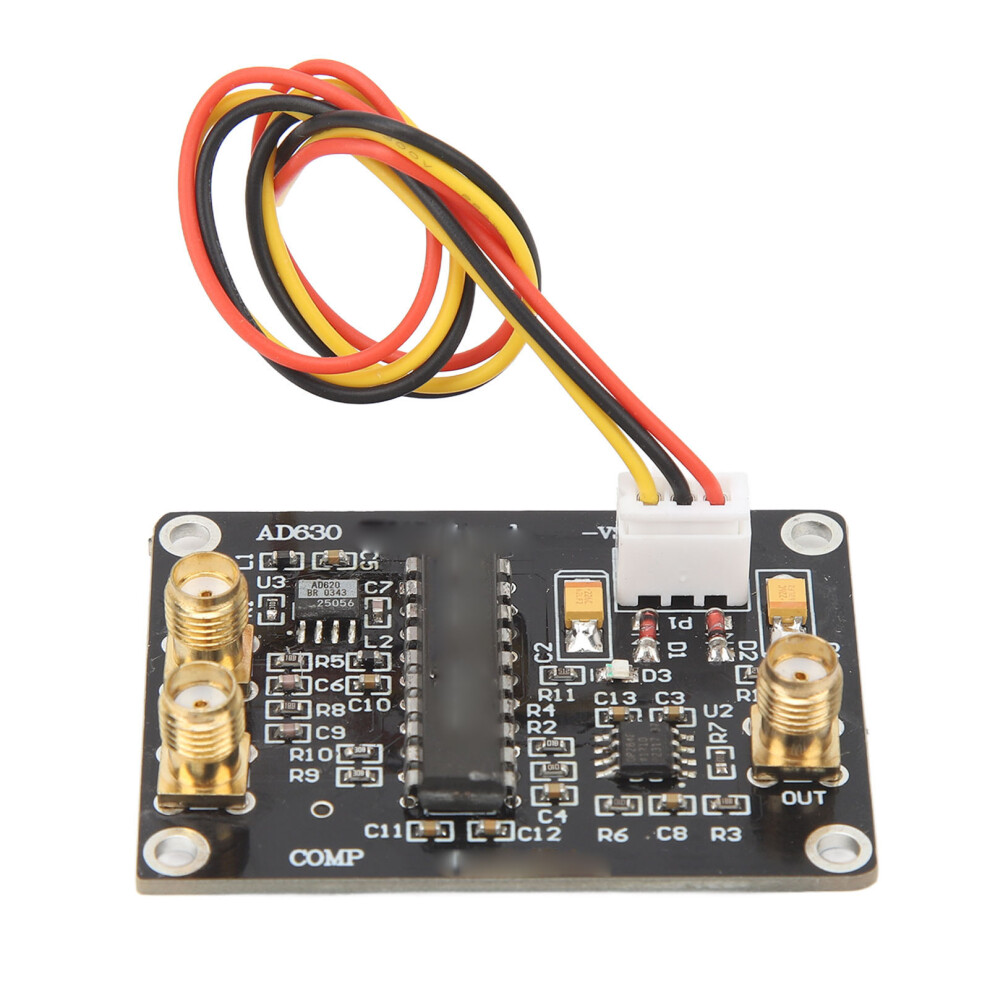

AD630 Balanced Modulator Lock-in Amplifier Signal Modulation Detection Module
Q-BAIHE
Title\uFF1A\n\nAD630 Chip Balanced Modulator Lock-in Amplifier Weak Signal Modulation \nDetection Module\n\nSpecifications:\n\nName: AD630 Balanced Modulation Amplifier\n \nProduct size: 50mmx50mm\n \nPower supply voltage: \u00B1 5V~\u00B1 15V\n \nWorking temperature range: -25~75 \u2103\n \nWorking current: \u00B1 10mA\n \nGain bandwidth product: 2MHz\n \nIN2 input range: (V -)+3 to (V+) -1.5 (e.g. positive and negative 5V power supply, reference signal input range: -2+3.5V)\n \nOUT1 output range: 26Vpp, i.e. -13V~+13V (measured under positive and negative 15V power supply)\n \nOUT2 output range: -8V~+8V (output after low-pass filtering, measured under positive and negative 15V power supply)\n \nIN1 input impedance: 10K \u03A9\n \nIN2 input impedance: 10K \u03A9\n \nOUT1 output impedance: 51 \u03A9\n \nOUT2 output impedance: low resistance\n \nLow pass cutoff frequency: 10 Hz\n \nDifferential mode offset adjustmen:
Compare prices (2 shops)
| shop | Price | Action |
|---|---|---|
|
28,44 GBP | Go to shop |
|
|
125,88 GBP | Go to shop |
