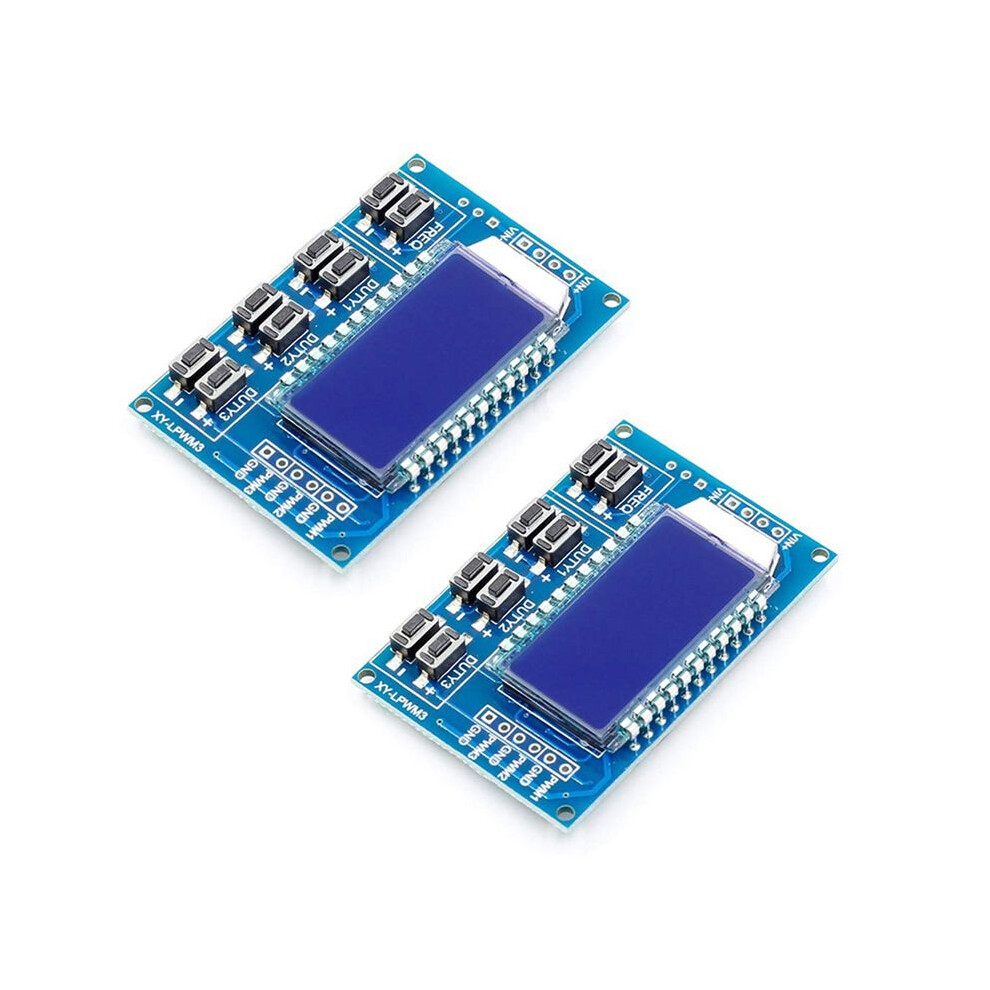

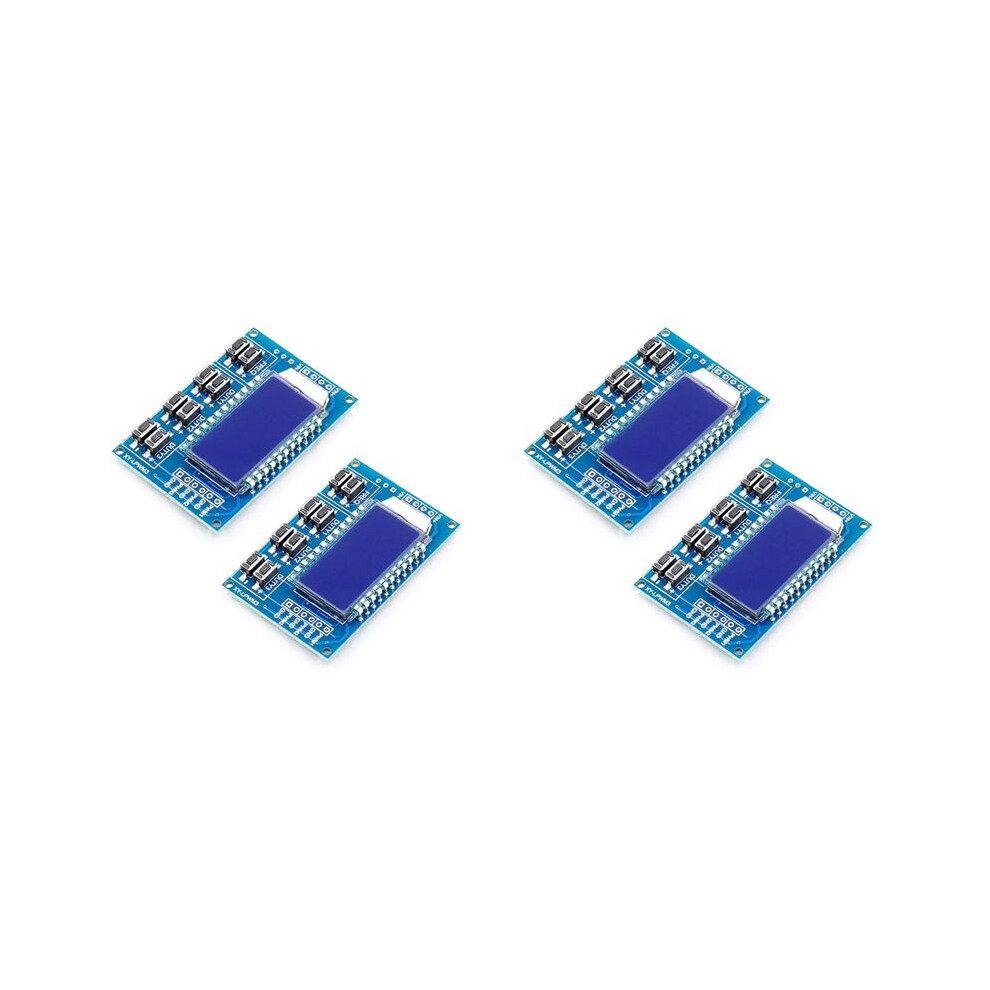

PWM Pulse Square Wave Rectangular Wave Signal Generato PWM Adjustable Module
Q-BAIHE
Title\uFF1A\nPWM Pulse Square Wave Rectangular Wave Signal Generator PWM Drive Frequency Duty Cycle Adjustable Module\n\nSpecifications:\nModule type: PWM signal generator\nPower supply voltage: 4V-28V\nStatic power consumption: 13mA\nFrequency range: 0-100K\nDuty range: 0-100%\nDead time: 1-40uS (different ranges at different frequencies)\nDead step: 1uS\nFrequency step: 1Hz (0-1KHz); 10Hz (1K-10KHz); 100Hz (10K-100KHz)\nFrequency accuracy: 0.2% (0-10KHz); 0.4% (10K-50KHz); 2% (50K-100KHz)\nDuty step: 1%\nDuty accuracy: 0.20% (0-10KHz); 1% (10K-50KHz)\nRise time: 100ns\nOutput amplitude: equal to the supply voltage\nOutput current capacity: 10mA\nModule enable: with output switch\nModule protection: anti-reverse connection of power supply\nModule size: 79**43*50mm; error \u00B11mm\nHousing opening installation size: 76*40mm\n\nFAQ\uFF1A\n\nQ: What is the limit of the dead time range?\nA: The dead time should be less than half of the negative pulse width of PWM1,\nthat is, DeadT<(:
Compare prices (2 shops)
| shop | Price | Action |
|---|---|---|
|
18,00 GBP | Go to shop |
|
|
84,96 GBP | Go to shop |
