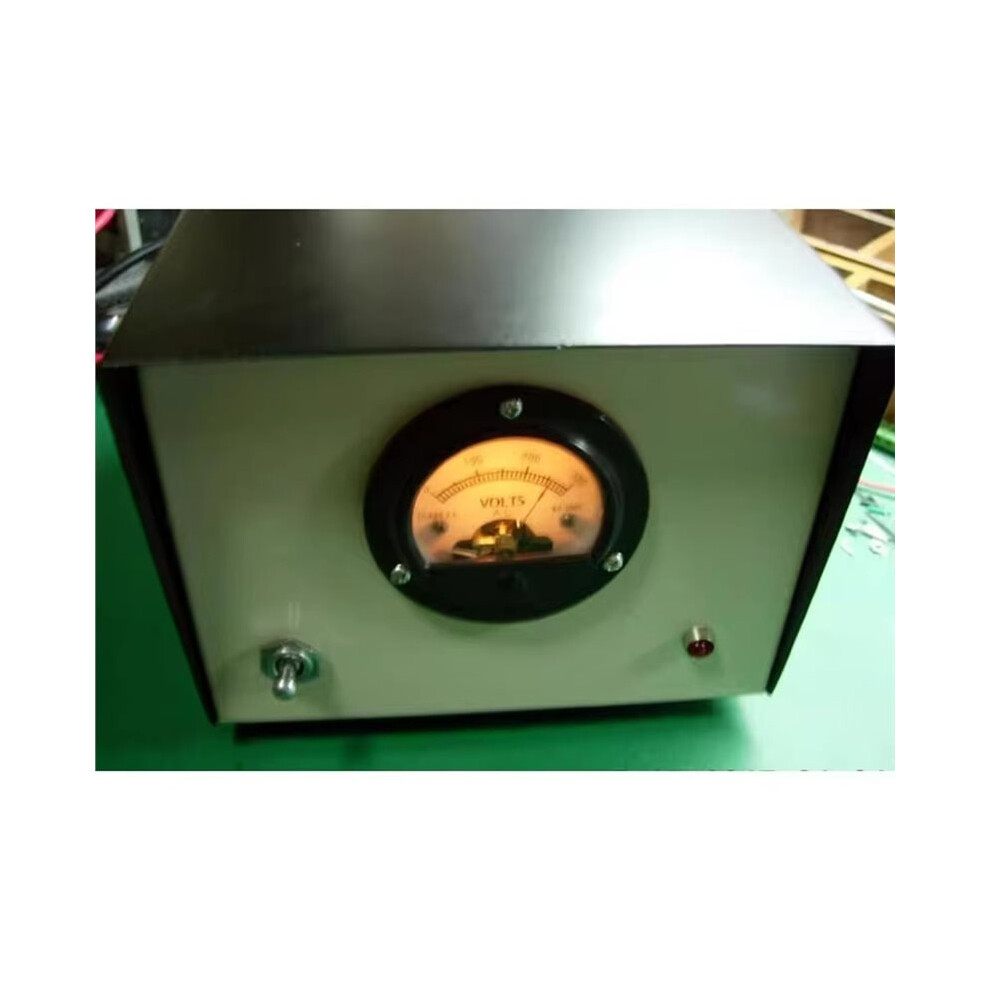

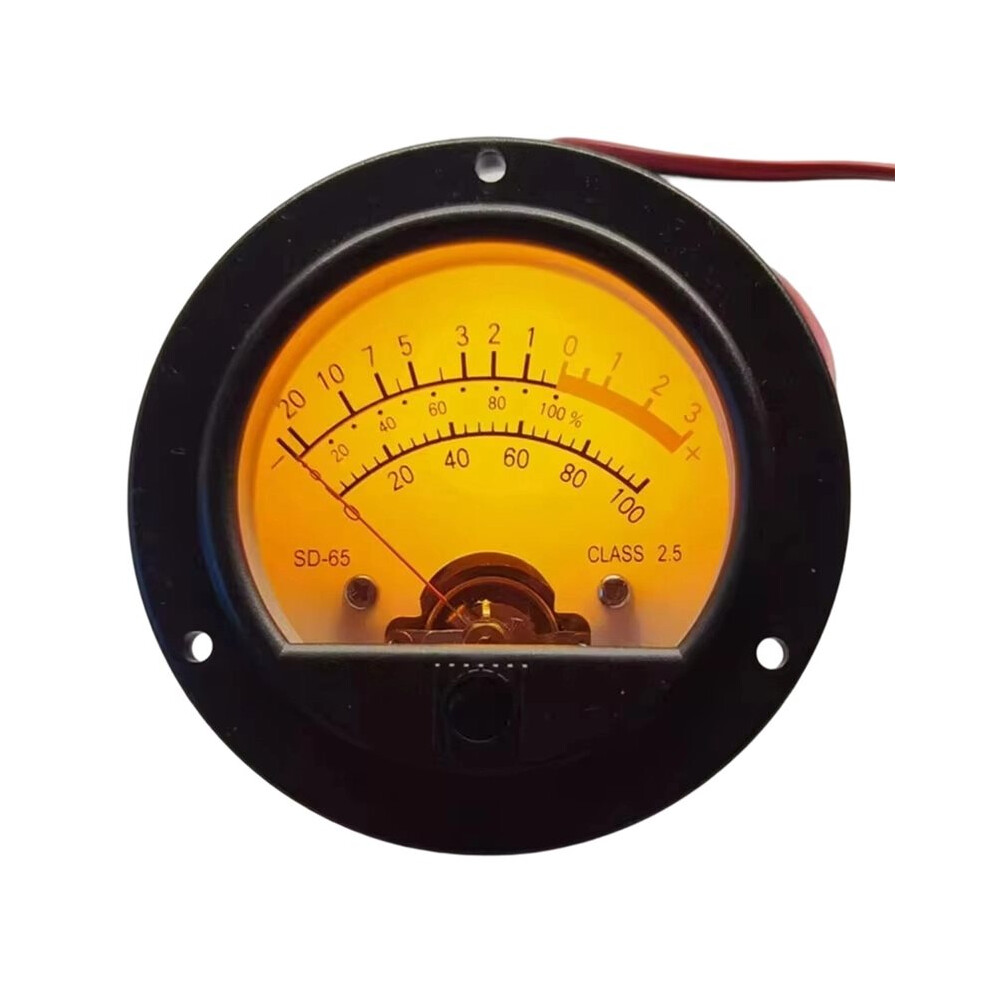

DC 500uA Yellow Backlight VU Level Meter Voltage Meter Pointer Type Meter Head
Q-BAIHE
Title\uFF1A\n\nDC 500uA Movable Coil Type Yellow Backlight VU Level Meter Voltage Meter Pointer\nType Meter Head\n\nSpecifications:\n\nSurface structure: movable coil type\nPointer material: nickel foil copper\nPointer color: Red\nPointer length: 34 (\u00B1 1mm)\nPointer width: 0.5 (\u00B1 0.05mm)\nPointer deflection direction: It rotates clockwise from left to right.\nUpper cover material: The upper cover frame is made of black bakelite, with transparent glass sheets\nLower cover material: Hips electric wood\nStructure material: PC\nExcitation coil material: High stability Class 8 magnetic steel\nElectricity meter usage position: vertical use\nBacklight: Two 12V powered tungsten filament lamps, with the bulb power supply wire extending outside the case\nInternal DC impedance of the meter head: 650 \u03A9 \u00B1 10%\nFriction error: \u00B1 1mm\nBalance error: \u00B1 1mm\nInsulation strength: above 50M \u03A9\n\nPacking: \n1x VU level meter\n\nOn 08-Apr-2024 at 03:15:57 BST, sell:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
27,60 GBP | Go to shop |
