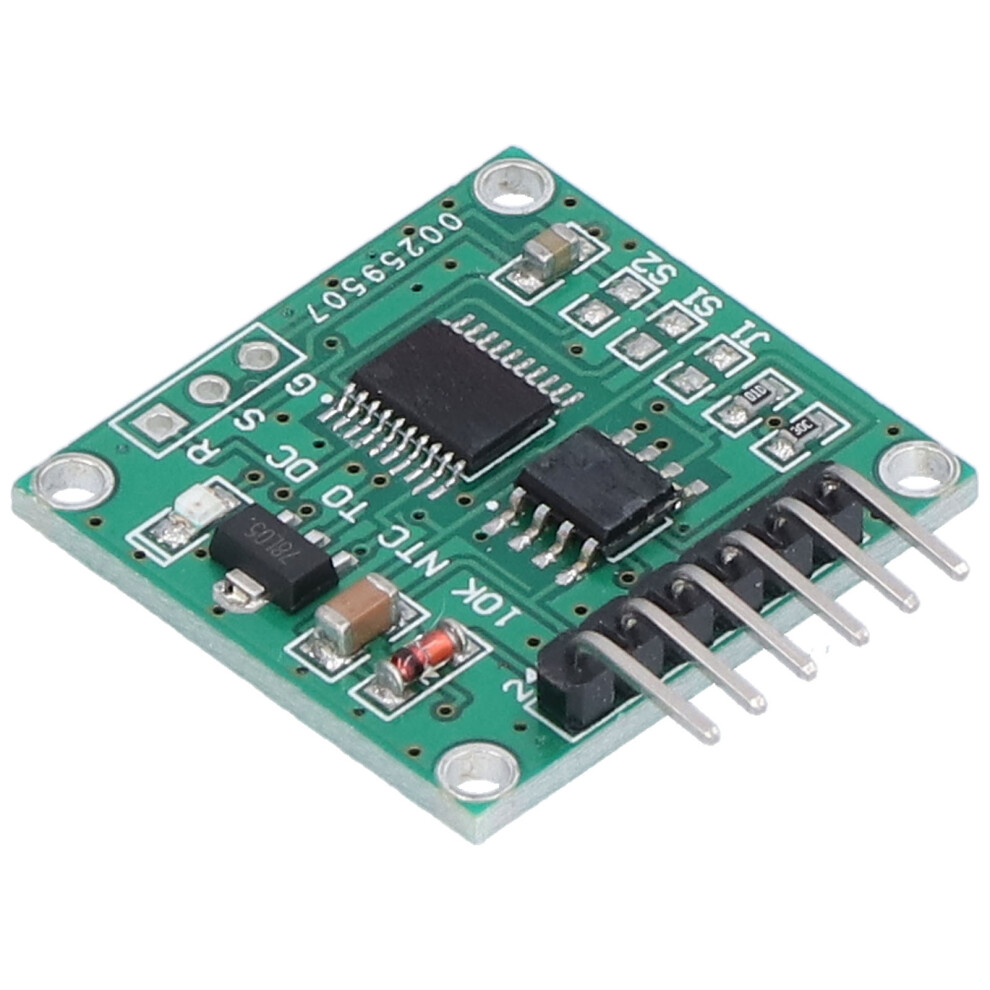

Thermistor Voltage 100K NTC To 0-5V 0-10V Linear To Temperature Transmitter

Thermistor Voltage 100K NTC To 0-5V 0-10V Linear To Temperature Transmitter

Q-BAIHE

\u65E0\u6807\u9898\u6587\u6863\n\nTitle\uFF1A\nThermistor Voltage 100K NTC To 0-5V 0-10V Linear To Temperature Transmitter\n\nWorking voltage:\n9V To 24V\nInput resistance:\nNTC 100K thermal resistance (B value: 3950)\n\nOutput voltage:\n0.00V \uFF5E 5.00V / 0.00V \uFF5E 10.00V\nTemperature measurement range:\n-40 ~ + 150 (degrees).\n\nSize:\n(length) 26mm x (width) 23mm x (height) 10mm\nOutput method:\nS2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.\n\nModule interface:\n24V: Power positive connector (9V ~ 24V).\n G: Power ground interface.\n IN: Positive terminal of thermal resistance.\n G: Thermal resistance negative terminal.\n OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).\n G: Power ground interface.\n\nNote:\n\nWhen outputting 0.00V ~ 10.00V, the power supply voltage should be 15V.\n\nOutput (0.00V \uFF5E 5.00V) Resolution: 0.0294117V / \u2103 (Voltage / Celsius)\n Output (0:

Compare prices (1 shop)

Sort: Price: lowest first Price: highest first
shop Price Action
18,48 GBP Go to shop
