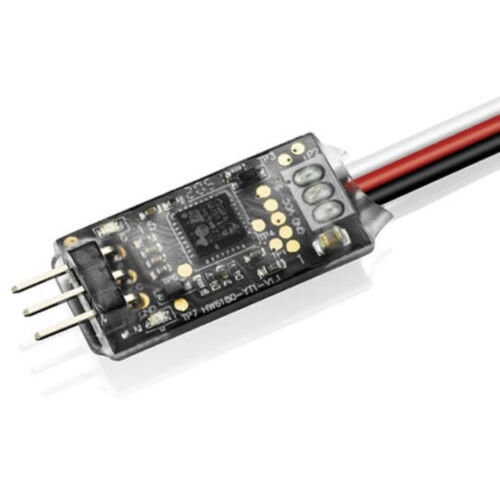

Hobbywing Futaba Telemetry Adapter HW30850500

Name: Hobbywing Futaba Telemetry Adapter HW30850500
Brand: Hobbywing

Hobbywing

--Scalextric \n-- Hornby \n--Models\n--Radio Control\n--Sylvanian Families\n\n--Scalextric \n-- Hornby \n--Models\n--Radio Control\n-- LEGO\n\n--Sylvanian Families\n--More ToysHobbywing Futaba Telemetry Adapter HW30850500\n\nHobbywing Futaba Telemetry Adapter HW30850500\n\nThis adapter is suitable for Platinum V4/4.1/ 5 series or later with data backhaul function. The electronic governor is connected to the Futaba receiver that supports the S.BUS2 protocol, enabling the ESC to transmit Telemetry data to the Futaba Radio in real-time displaying the functions.\n1 The Wiring\n\n--Use a cable to connect to the ESC port (ususally identified as \""-+P\"") and the adaptor \""-P\"" side.\n\n--Connect the adaptor \""-S.BUS2\"" to the Futaba receiver to identify the channel of \""S.BUS2\"".\n\n--Connect the ESC throttle signal line to the Futaba receiver throttle channel.\n\nPlease Note: The input voltage is 5-9V. The \""-P\"" port does not provide a power input.\n2 The Parameter Setting Method\n\n--Ack
