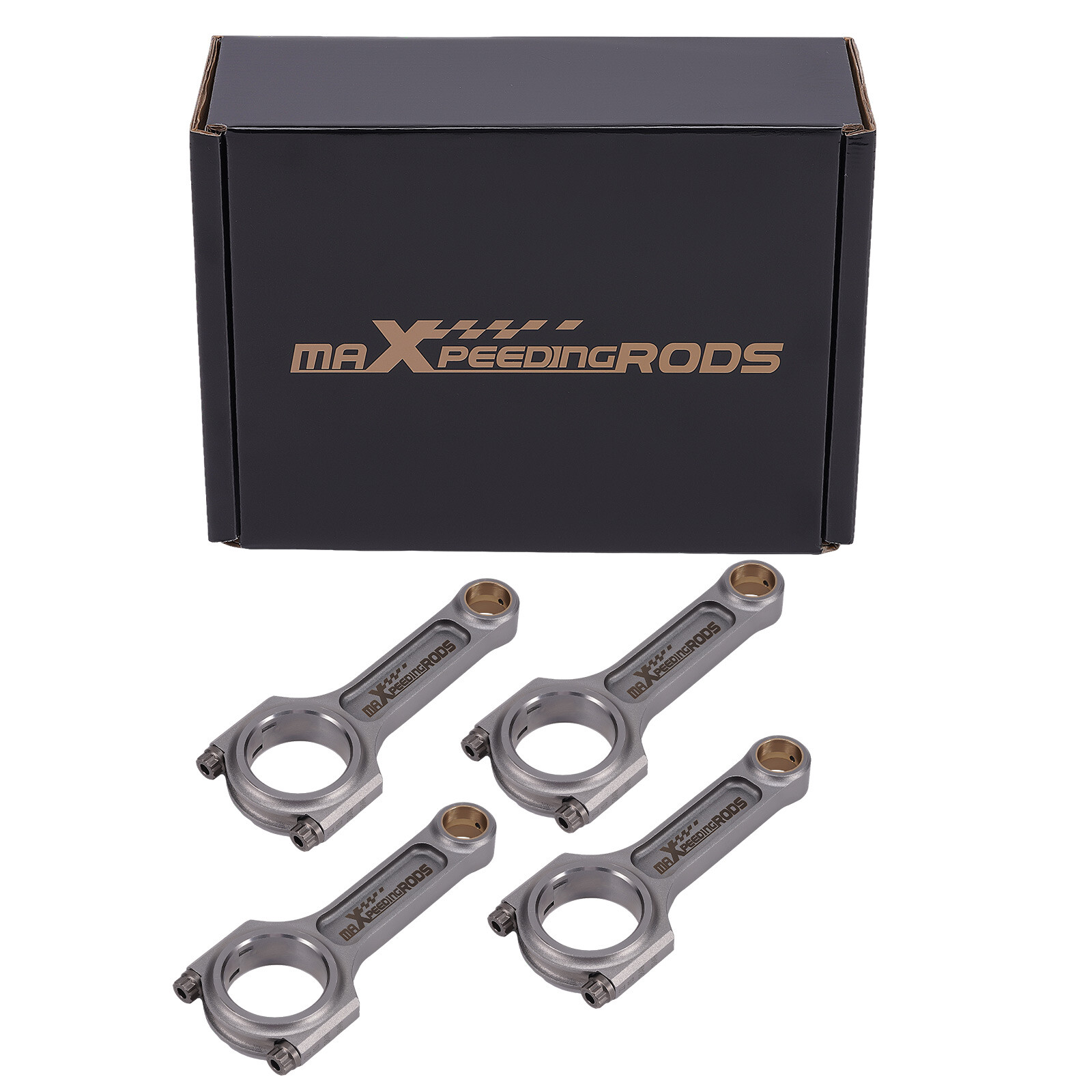

Forged 4340 Connecting Rods for Mazda MX5 B6 1.6 BP 1.8 Performance 133mm Conrod
maXpeedingrods
ApplicationCompatible for Mazda B6 1.6 / B6F B6-E/B6-9 Engine compatible for Mazda BP 1.8 EngineSpecificationBeam Style: H-beam Street/Strip Material: 4340 Chromoly Steel Finish: Shot-peened Wrist Pin Style: Floating Clearanced for Stroker: Yes Cap Retention Style: Through-bolt Connecting Rod Bolt Brand: ARP Connecting Rod Bolt Diameter: 5/16" Connecting Rod Bolt Material: Alloy Steel Fastener Yield Strength (psi): 220,000 psi (ARP 2000) Upgrade Fasteners: ARP L19 (260,000 psi) optional Connecting Rod Bolt Head Style: 12-point CNC Machined: High Precision Rod Cap Alignment: Precision dowels Bore Tolerance: ±0.005 mm Balancing: ±1 gram per rod Weight Matched Set: Yes Remanufactured: No Testing: Magnafluxed, X-rayed, Ultrasonically tested Heat Treated: YesDimensionConnecting Rod Length Center to Center: 133.00mm/5.236in Approximate Connecting Rod Weight: 527g Big End Bore Diameter: 48.00mm/1.890in Pin End Bore Diameter: 20.00mm/0.787in Big End Width: 21.84mm/0.860in Small End Width: 21.8...
Compare prices (9 shops)
| shop | Price | Action |
|---|---|---|
|
300,00 GBP | Go to shop |
|
372,00 GBP | Go to shop |
|
|
375,99 GBP | Go to shop |
|
|
375,99 GBP | Go to shop |
|
|
376,00 GBP | Go to shop |
|
|
376,00 GBP | Go to shop |
|
|
376,76 GBP | Go to shop |
|
|
388,30 GBP | Go to shop |
|
|
388,30 GBP | Go to shop |
