Ds212 Digital Storage Oscilloscope Portable Nano Handheld Bandwidth 1Mhz Sampling Rate 10Msa/S Thumb Wheel 6970634010383

B&Q

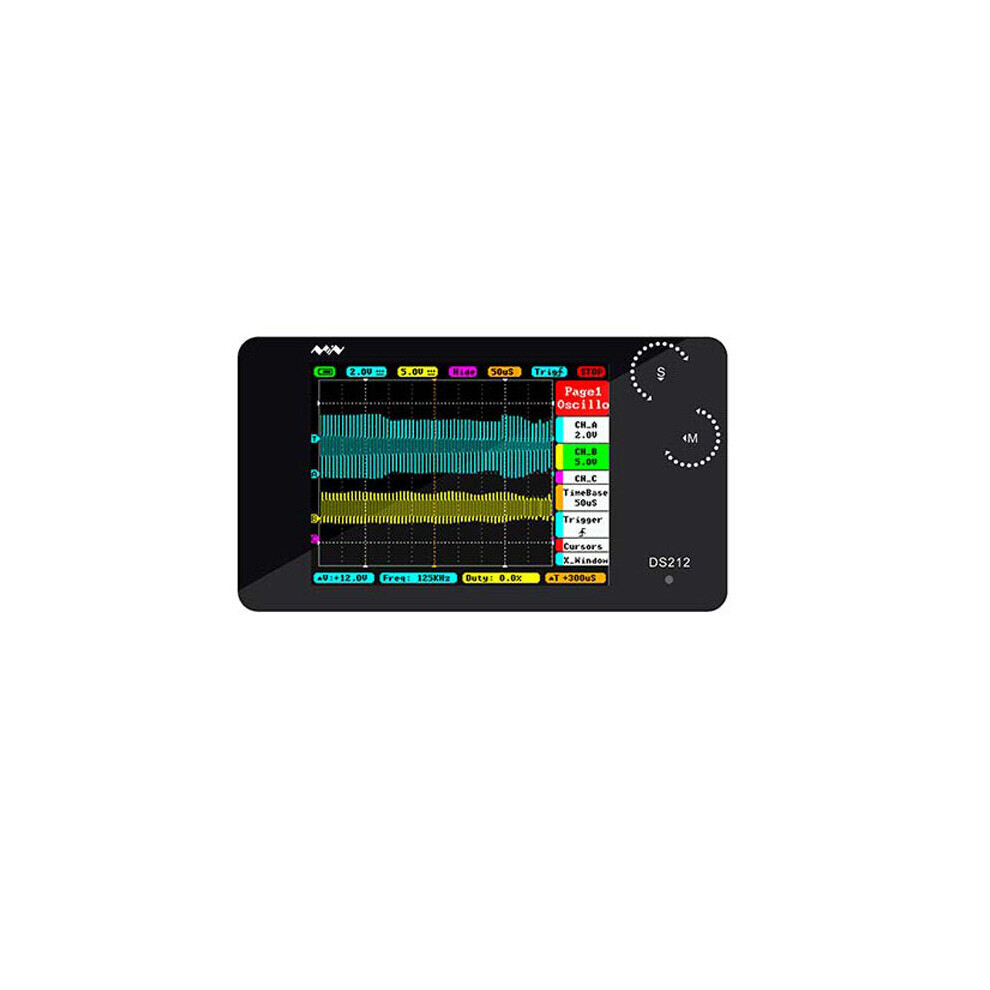

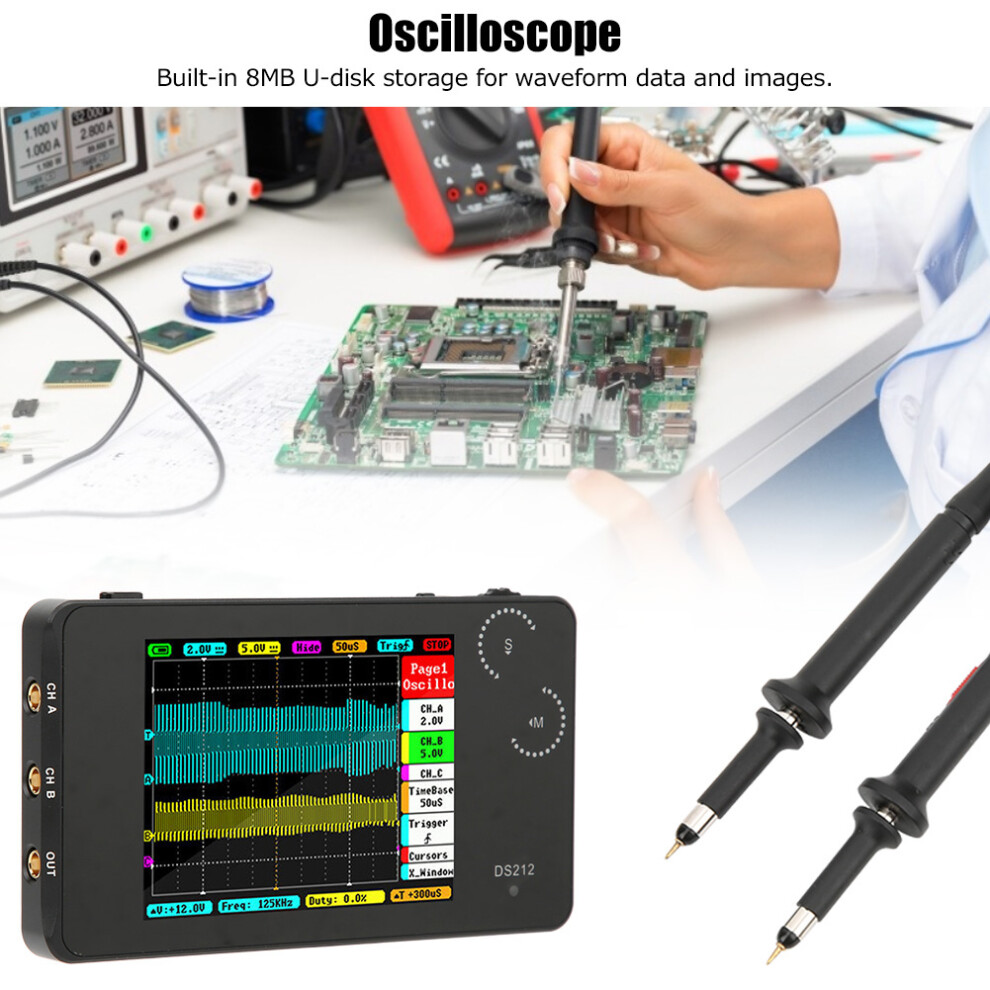

MINIWARE DS212 Mini Oscilloscope is a dual-channel digital storage oscilloscope with a display and built-in battery. The built-in 8MB U disk can be connected to the computer through the Micro USB interface to exchange data. The shell is made of aluminum alloy, which is sturdy and durable. It is only half the size of a mobile phone and is easy to carry. It also comes with a 320x240 resolution LCD and a rechargeable battery, which is convenient for users to use in outdoor scenes. DS212 is operated by double encoders and buttons, which are easy and convenient to operate. Built-in signal source, it has an independent calculation channel, which can be used for waveform calculation. The highest sampling rate is 10MHz, which can be used as a basic measurement tool for electronic engineers.Specifications:Model: DS212MCU: STM32F303VCADC: MCU internal ADCChannels: 2 Analog channelsAnalog Bandwidth: 1MHzMax Sample Rate: 10MSa/sMax Sample Memory Depth: 8KHorizontal Sensitivity: 1us/Div25/Div (1-2-5 sequence step)Vertical Sensitivity: 20mV/Div10V/Div (1-2-5 sequence step)Analog Input Impedance: 1MΩCoupling: DC/ACTrigger Mode: Ascend/Descend Edge Trigger ModeAUTO_FIT: AUTO_FITMath Waveforms: -A, B, A+B, A-B, RecA, RecB, RecCOutput Signals: Sine/Square/Triangle/Sawtooth waveSynchronous Mode: Auto, Normal, Single, Scan, NoneAuto Measurement: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/averageStorage: 8MB USB flash disk memoryAPP Installed: 2Operation: Button, EncoderUSB Port: MicroUSBBattery: 500mAhScreen Size: 2.8"Screen Resolution: 320x240Dimension: 100mm x 56.5mm x 10.7mmWeight (with Battery): 88gOpen Source: Application layer Open-SourceCertifications: CE/FCCPackage Contents:1 * DS212 Mini Oscilloscope1 * x1x10 Probe1 * USB Cable1 * User Manual Packing Specifications:Gross Weight: 412g (including package)Package Size: 202mm ✖ 112mm ✖ 45mm.
