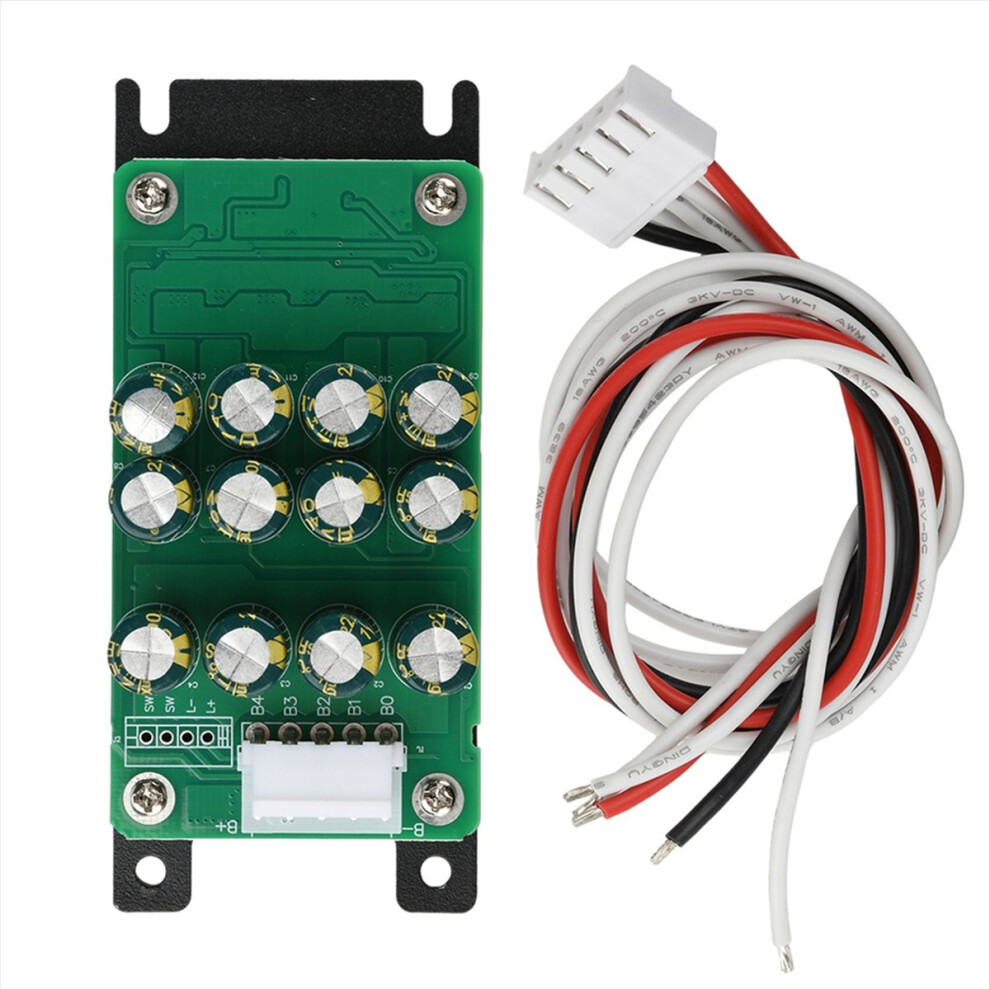

4S Battery Active Equalizer With Cable Lithium Battery Balance Board For Ternary
--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n\nFeature: \n 1. APPLICABLE RANGE: 4S battery active equalizer, the working voltage is 1.8V\u20114.5V, suitable for ternary lithium battery and lithium iron phosphate battery.\n2. GOOD PERFORMANCE: Adopt ultra low internal resistance MOS, 2OZ copper thick PCB, with stable performance, the balanced voltage accuracy within 5mv.\n3. CURRENT PARAMETERS: The equalizing current range is 0\u20115.5A, the static current is about 12mA, the more equalizing the battery, the smaller the current.\n4. SLEEP POWER OFF MODE: The wiring position of the sleep switch is reserved, and the working current of the sleep power off mode is less than 0.1mA.\n5. UNDERVOLTAGE PROTECTION: With undervoltage sleep protection, when the voltage is lower than 3.0V, it will automatically stop entering the sleep state. \n\nSpecification: \n\nItem Type: Battery Active Equalizer\nMaterial: PCB\nMaterial: Electronics\nWorking Voltage: 1.8V-4.5V, appli-
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
18,82 GBP | Go to shop |
