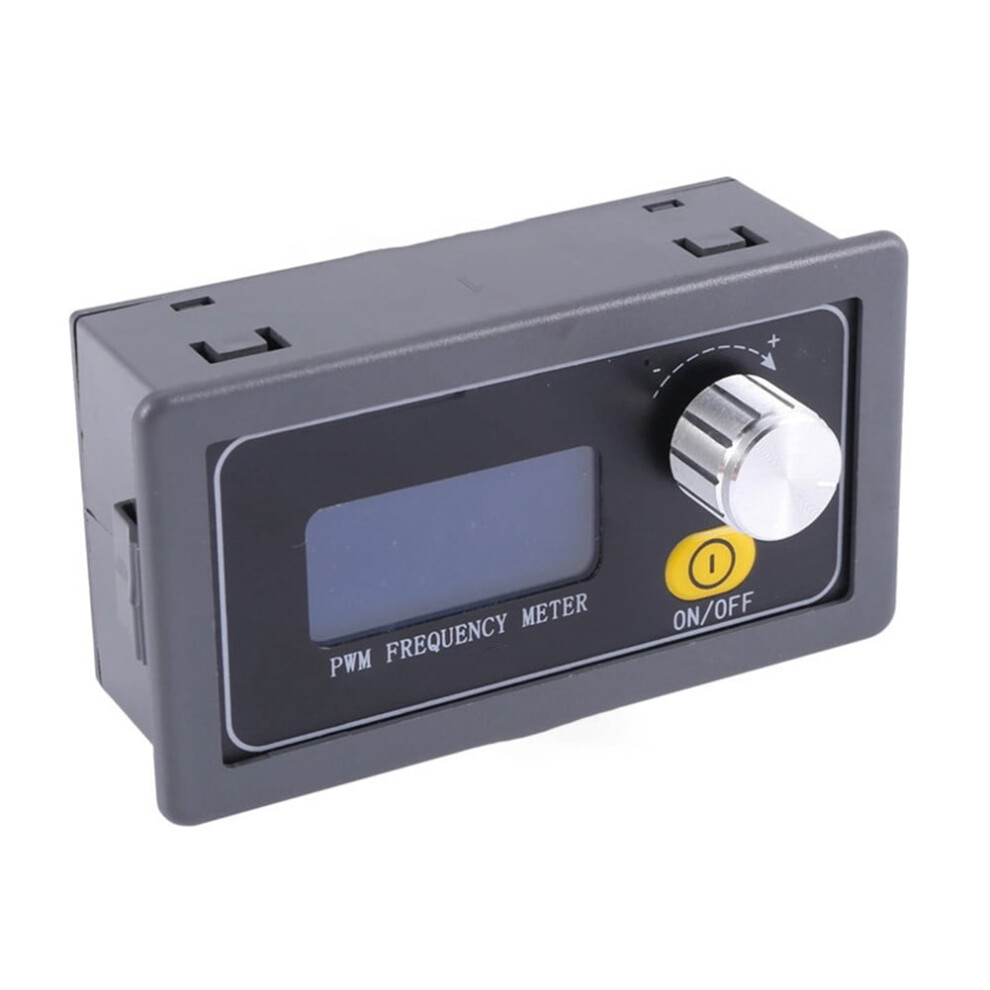

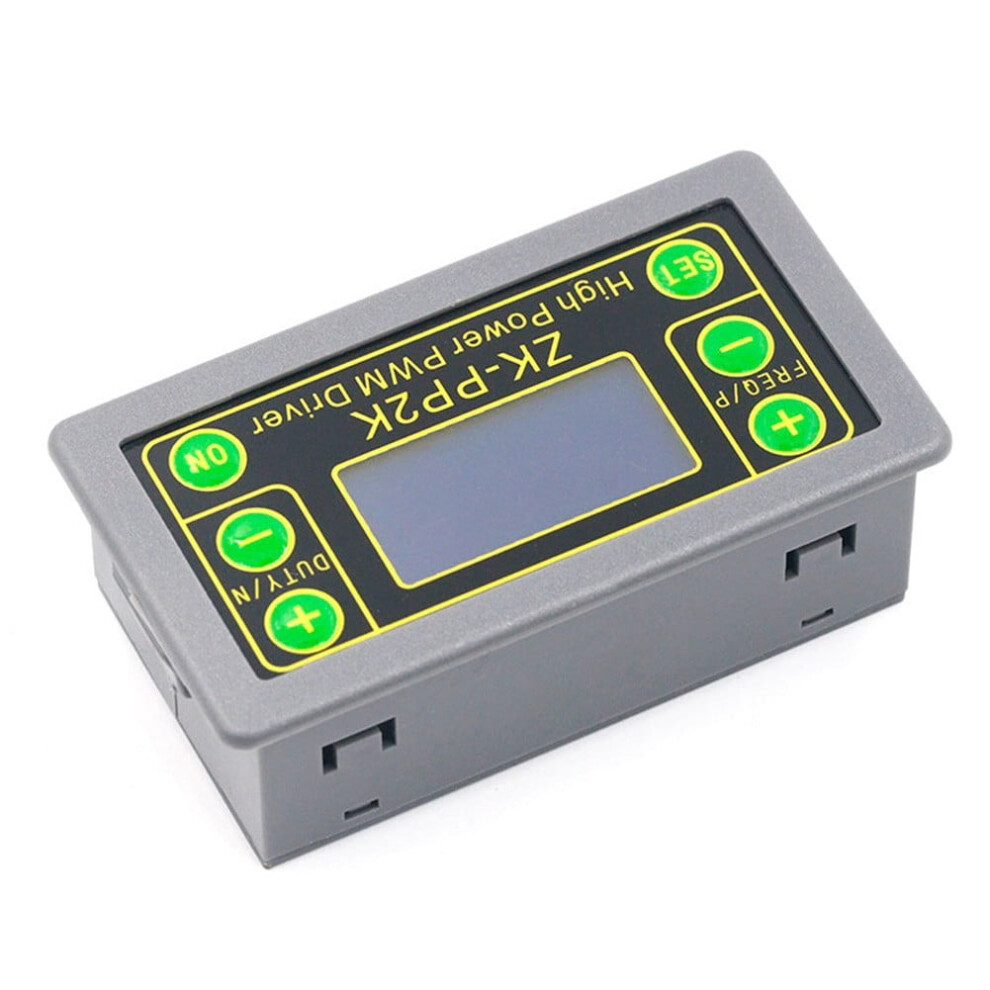

Adjustable PWM Generator High Accuracy Frequency Duty Cycle For Motor Control☜

Feature: \n 1. Scope Of Application: Used as square wave signal generator to generate square wave signals for experimental development and use to generate square wave signals for controlling motor drivers.\n2. Generate Adjustable Pulses: This module generates adjustable pulses for MCU use and control related circuits (applications such as PWM dimming and speed regulation).\n3. Easy To Operate: PWM output, this module can set the frequency and duty cycle separately, with wide frequency range and high accuracy.\n4. LCD Display: The frequency and duty cycle of the LCD display are very clear. This module can communicate with serial port. All setting parameters are saved after power off.\n5. Four Frequency Range, Automatic Switching: XXX (without decimal point): the smallest unit is 1Hz, in the range 1Hz ~ 999Hz, X.XX (one hundred decimal point) is minimum unit 0.01Khz, ranging 1.00Khz ~ 9.99Khz, XX.X (ten in decimal): minimum unit is 0.1kHz; range 10.0KHz ~ 99.9KHz, X.X.X (decimal in ten:
