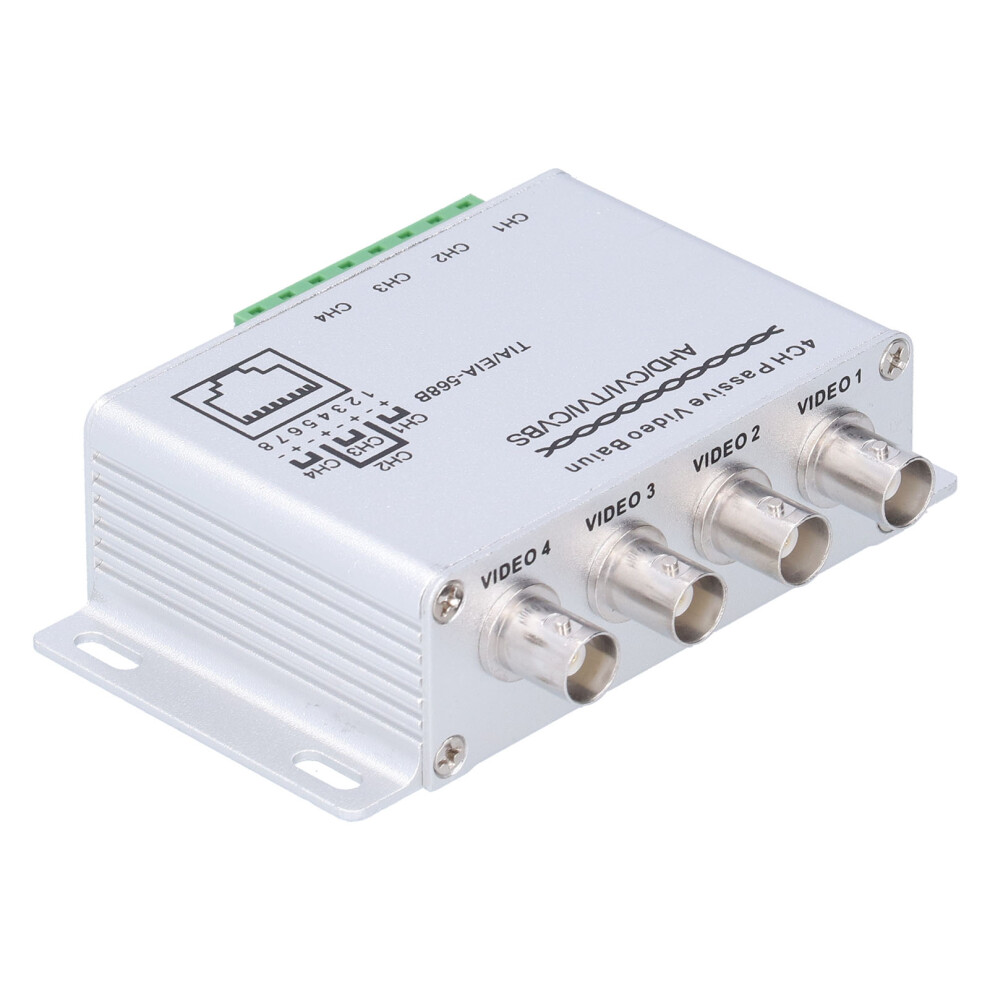

4CH AHD/CVI/TVI/CVBS Passive Video Twisted Pair Transceiver 720P 1080P HD

Feature: \n 1. HD Video balun converts the video signal into a balanced signal, and transmits it on an ordinary Cat-5 unshielded twisted pair cable at a perfect transmission rate.\n2. Allows your 8 pins Cat\u20115 twisted pair cable display video images at the same time, which can be used in video surveillance and video conferences, and can transmit video signals of four channels.\n3. Compatible with all HD\u2011CVI, HD\u2011TVI, HD\u2011AHD, supports NTSC, PAL and SECAM video formats; and has a long transmission distance, which can greatly simplify wiring engineering and save wire usage.\n4. For 720P CVI cameras, the maximum length is about 450m; for 1080P CVI cameras, 720P/1080P TVI cameras and 1080P AHD cameras, the maximum length is about 250m; for 720P AHD cameras, the maximum length is about 320m.\n5. Excellent anti-interference ability, 60dB anti-interference and anti-noise ability; built-in TVS, can protect up to 4000V surge voltage; no power supply, more convenient to use. \:
