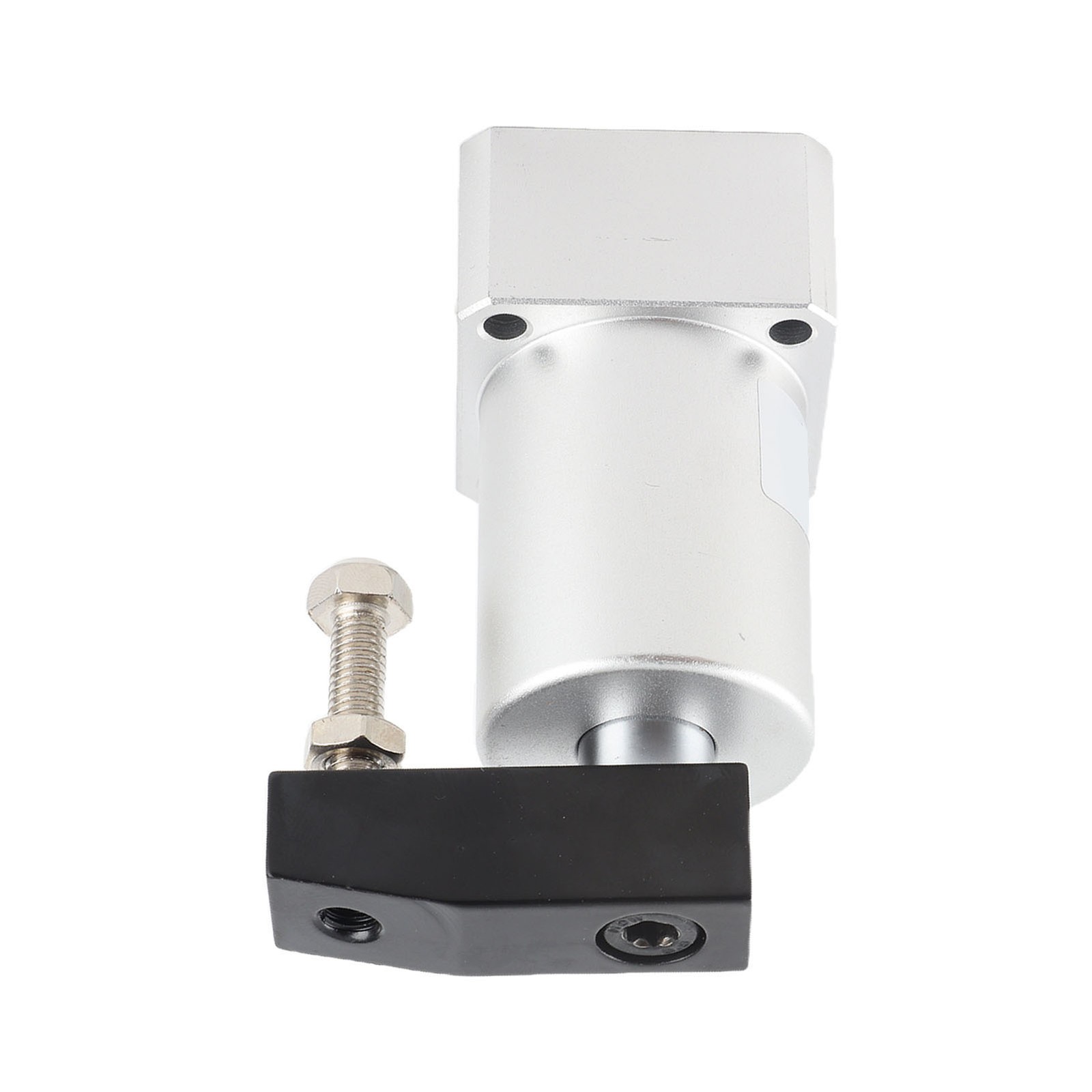

Pneumatic Cylinder 90 Degree Angle Clamping Corner Pressing Air Swing Too
Feature: \n 1. It is a double\u2011acting clamping corner press cylinder with an inner diameter of 25mm.\n2. The maximum working pressure with this pneumatic cylinder can 1.0MPa.\n3. With high speed, the maximum operating speed can 200mm per second.\n4. Made of high\u2011quality aluminium alloy, which makes it more durable and long\u2011lasting.\n5. The shape is small and can be rotated by 90 degrees, which is convenient, fast and labor\u2011saving. \n\nSpecification: \n\nCondition: Brand New\nItem Type: Pneumatic Cylinder\nColor: As Pictures Shown\nMaterial: Aluminium Alloy\nInner Diameter: Approx. 25mm/0.98in\nOuter Diameter of Piston Rod: Approx. 14mm/0.6in\nAction Type: Compound ActionType\nWorking Medium: Air (filtered through a filter above 40\u03BCm)\nService Pressure Range: 0.15-1.0mpa (22~145psi)\nGuaranteed Pressure Resistance: 1.5MPa (215psi)\nWorking Temperature: -20-80\u2103\nOperating Speed Range: 50-200mm/s\nRange of Travel Tolerance: 1.0\nRotation :
