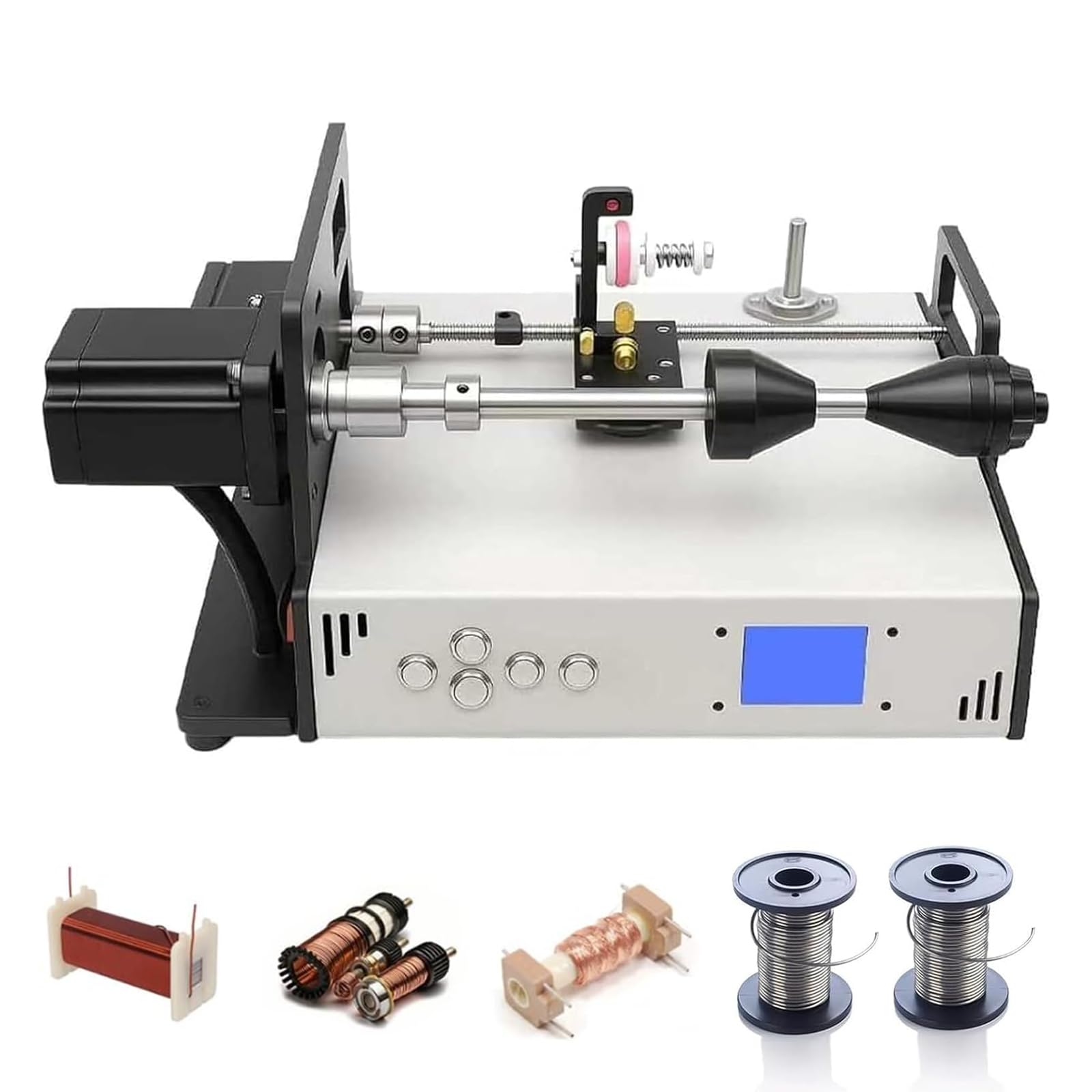

XNXYSMKJ Automatic Coil Winding Machine w/LCD Screen and Memory Function,for Industrial Applications and Fishing Rod Wire,
XNXYSMKJ
operation: Easily navigate through different function pages using left/right buttons, with real-time adjustments saved. Start or pause tasks with the press of a button, and reset the current count by holding for 5 seconds. Calibration instructions: Ensure the locator is positioned on the left side after power-on to allow the system to search for absolute zero correctly. This step helps prevent errors and ensures consistent and precise winding results. Sturdy construction: Designed with a durable 4mm steel base for stability, this machine easily handles coils,and fishing lines. The precision of the slide table is 0.01mm, accommodating winding diameters from 0.02mm to 1.0mm. Efficient speed and direction control: Equipped with a powerful 2.3Nm torque motor, it supports spools up to 15cm and a winding width of 10cm. Speed and winding direction can be adjusted intelligently through parameter input, w/the ability to pause at any time. Customizable programming: Tailor your winding projects by defining total turns, and layer length. The system automatically calculates the remaining parameters, allowing for precise patterns like 1000 total turns with 100 turns per 40mm layer.
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
313,28 GBP | Go to shop |
