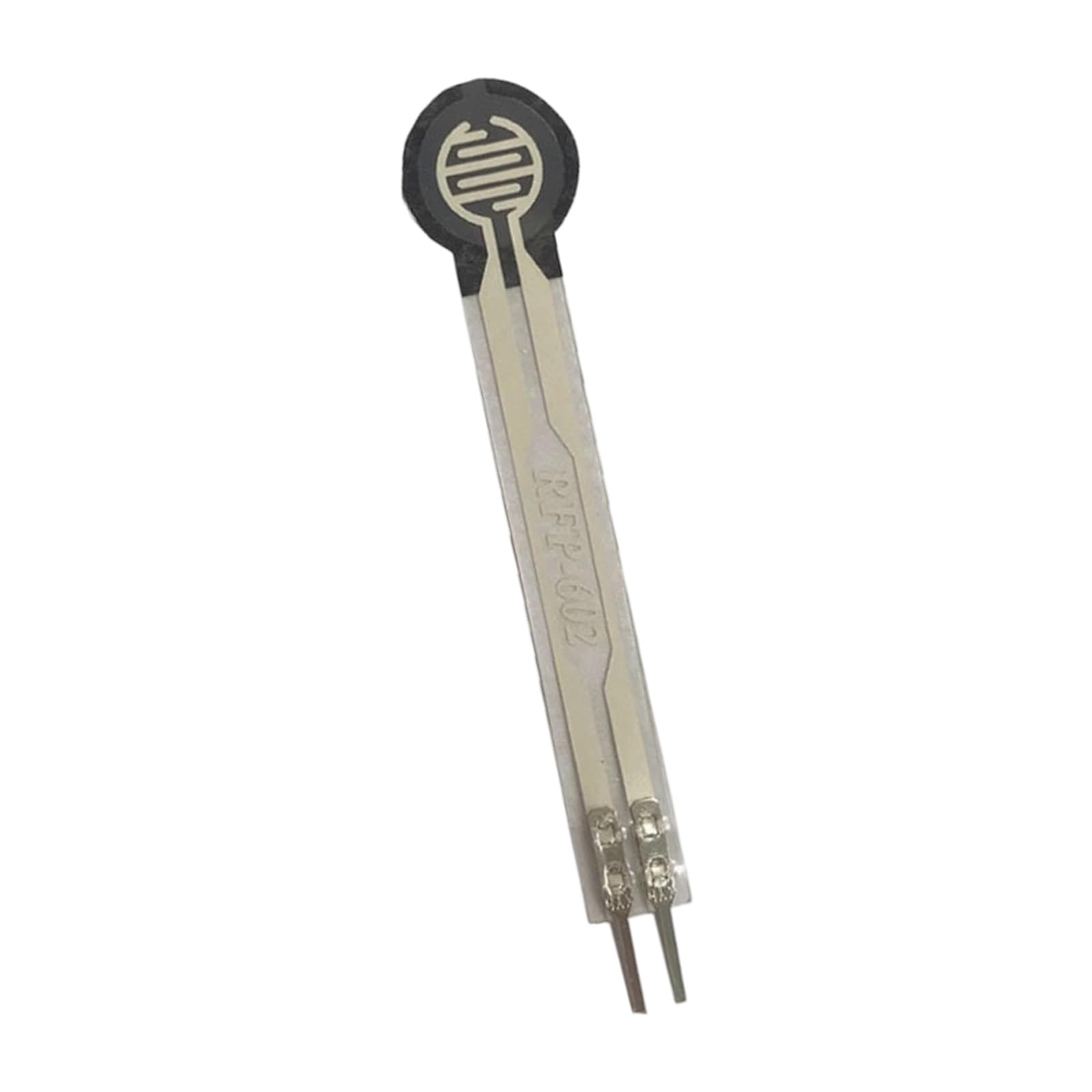

2pcs Flexible Film Pressure Sensor For Force Measurement Excellent
Feature: \n 1. The flexible film pressure sensor is composed of polyester film with excellent comprehensive mechanical properties, highly conductive material and nanoscale pressure-sensing material.\n2. The top layer is the flexible film and the pressure-sensitive layer composited on it, the bottom layer is the flexible film and the conductive circuit composited on it.\n3. When the sensing zone is under pressure, the circuits that are disconnected from each other at the bottom layer are conducted through the pressure sensitive layer of the top layer,, and the resistance output value of the port varies with the pressure.\n4. This resistance of resistive pressure sensor decreases with the increase of the pressure applied to the sensing zone.\n5. The pressure sensing range is 20g-10kg. \n\nSpecification: \nItem Type: Film Pressure Sensor \nModel: RP-S40-LT\nShape: Sheet, flexible\nTriggering Force: 20g, trigger when resistance < 200k\u03A9 by default\nPressure Sensing Range :20g~10kg:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
16,15 GBP | Go to shop |
