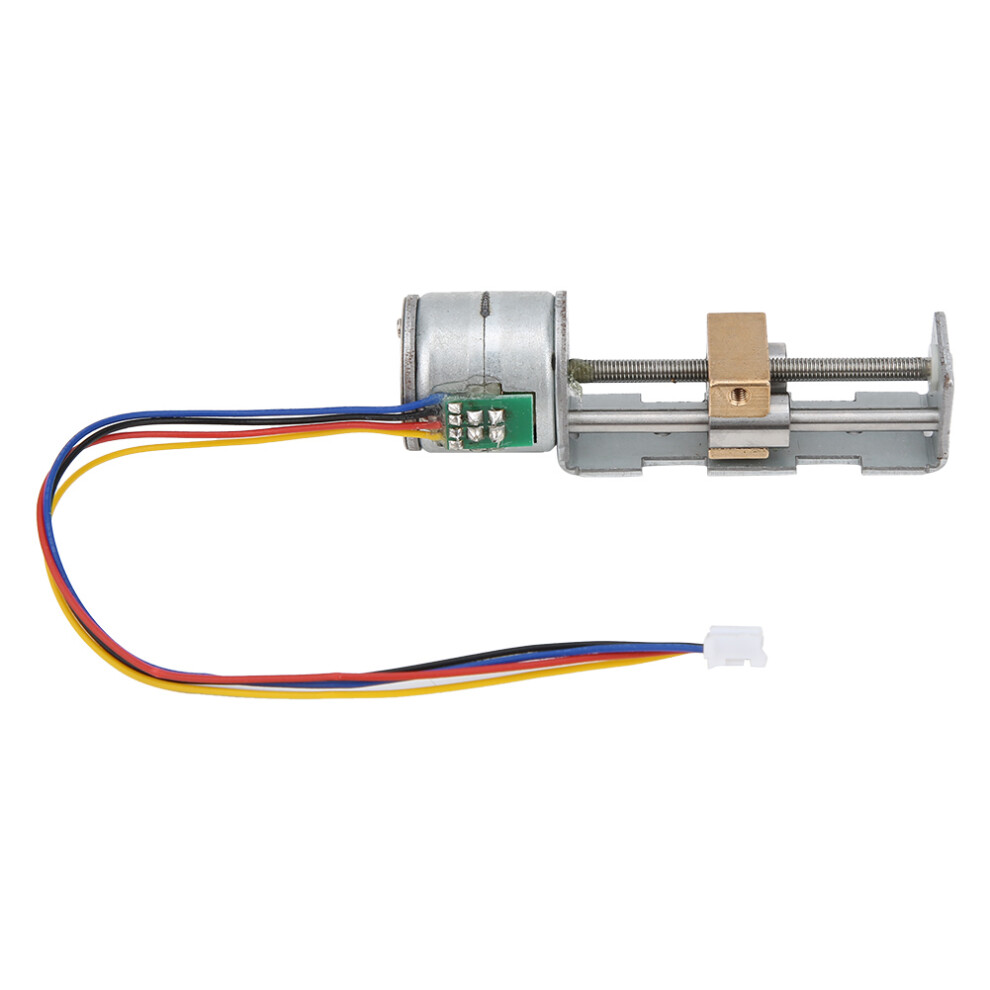

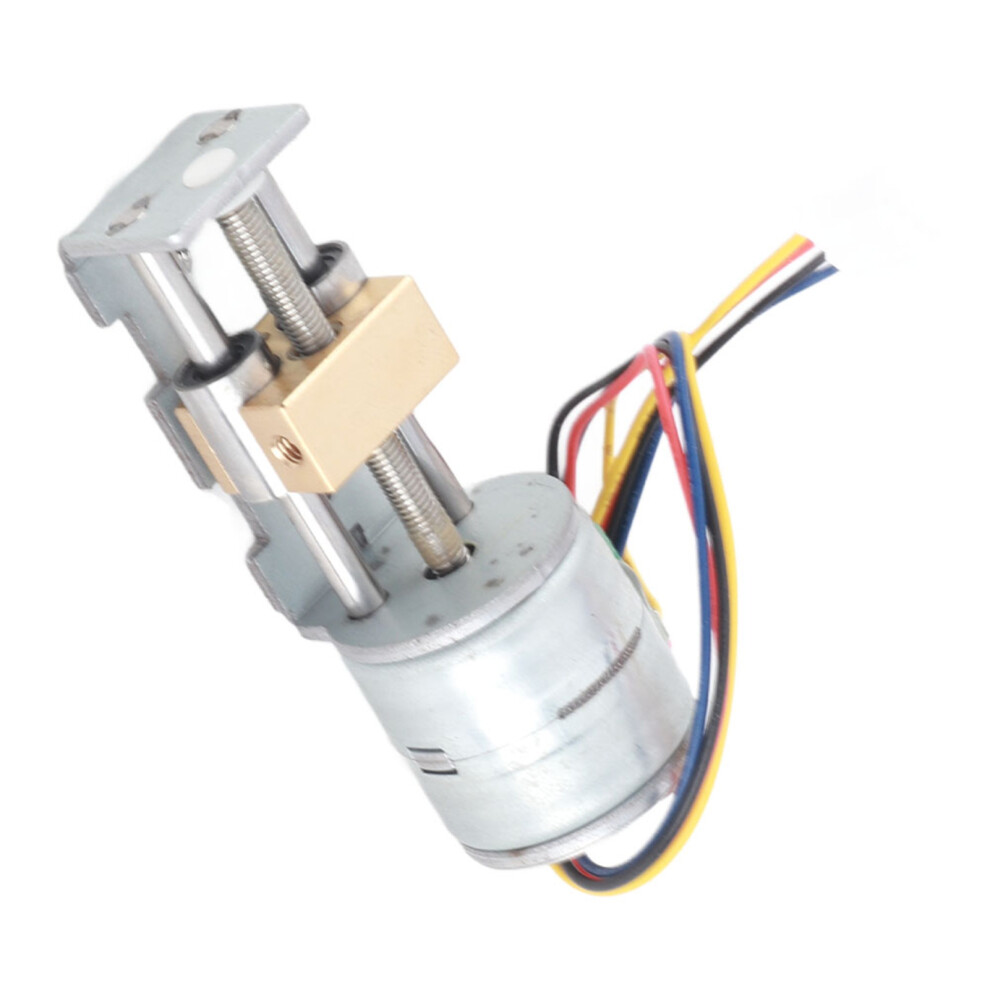

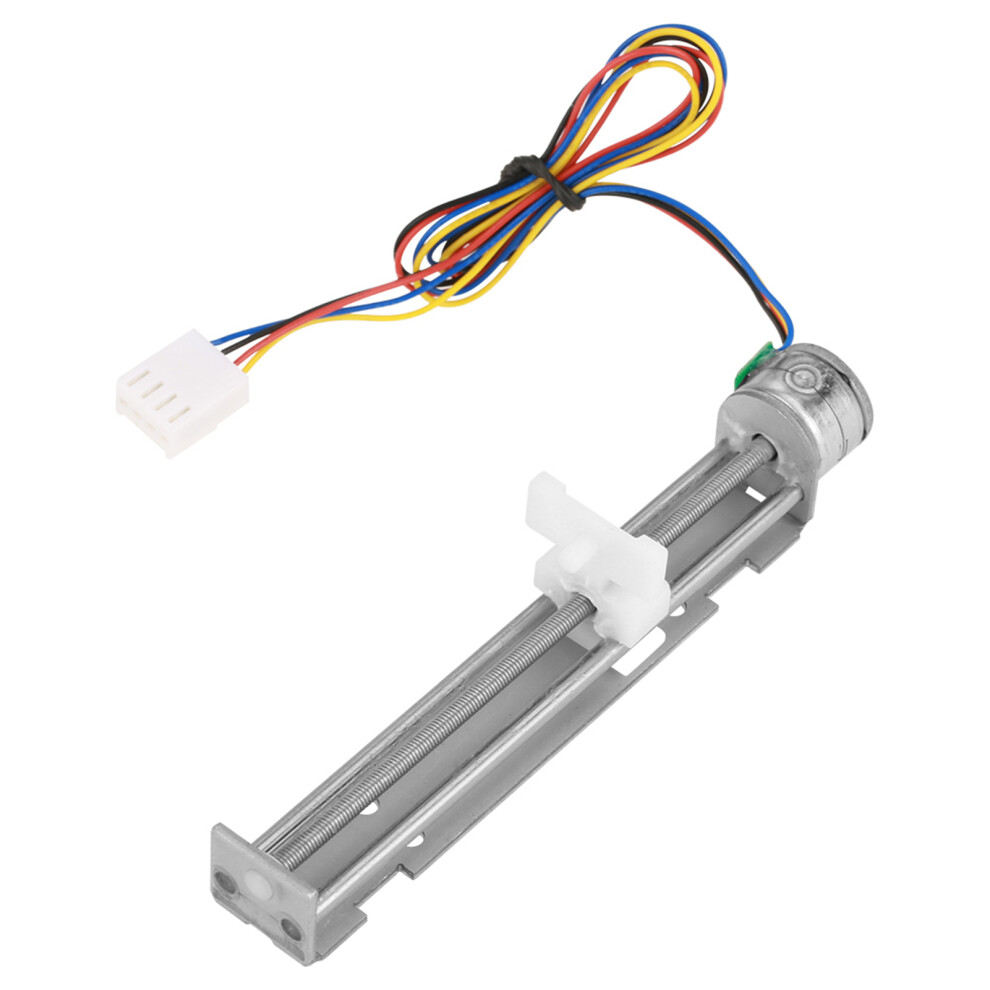

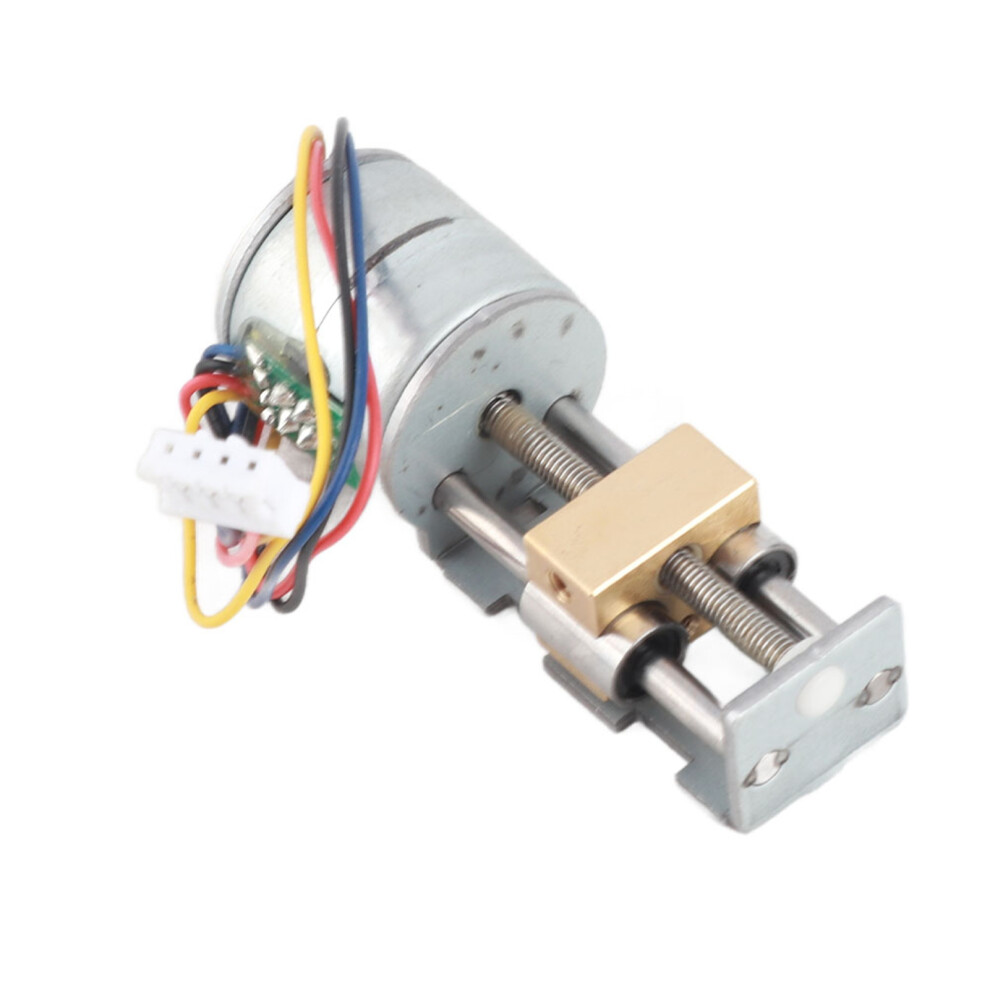

Mini 20mm Stepper Motor For Small Sliders Measuring Equipment Excellent
Feature: \n 1. Can be used in small sliders, projects, measuring equipment, printers.\n2. This product is miniature 2\u2011phase 4\u2011wire stepper motor with planetary gearbox reducer.\n3. Planetary gearbox reducer adopts all metal structure, strong and durable, has a long service life.\n4. Drive accurate diagonal lines to move the metal slider up and down, and the bracket is basically made of metal structure.\n5. The driving voltage of the motor is 5\u20119V/200\u2011600mA, the higher the voltage, the greater the force and the greater the heat. \n\nSpecification: \n\nItem Type: Stepper Motor\nMotor Type: 2-phase 4-wire system\nDrive Voltage: 5-9V/200-600mA (the higher the voltage, the greater the force, the greater the heat)\nScrew Length: Approx. 45mm / 1.8in\nSlider Stroke: Approx. 34mm / 1.3in\nMotor Diameter: Approx. 20mm / 0.8in\nScrew Diameter: Approx. 3mm / 0.1in\nScrew Pitch: Approx. 0.5mm / 0.02in (moving 0.025mm in one step, subdivision drive can be used if smalle:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
23,46 GBP | Go to shop |
