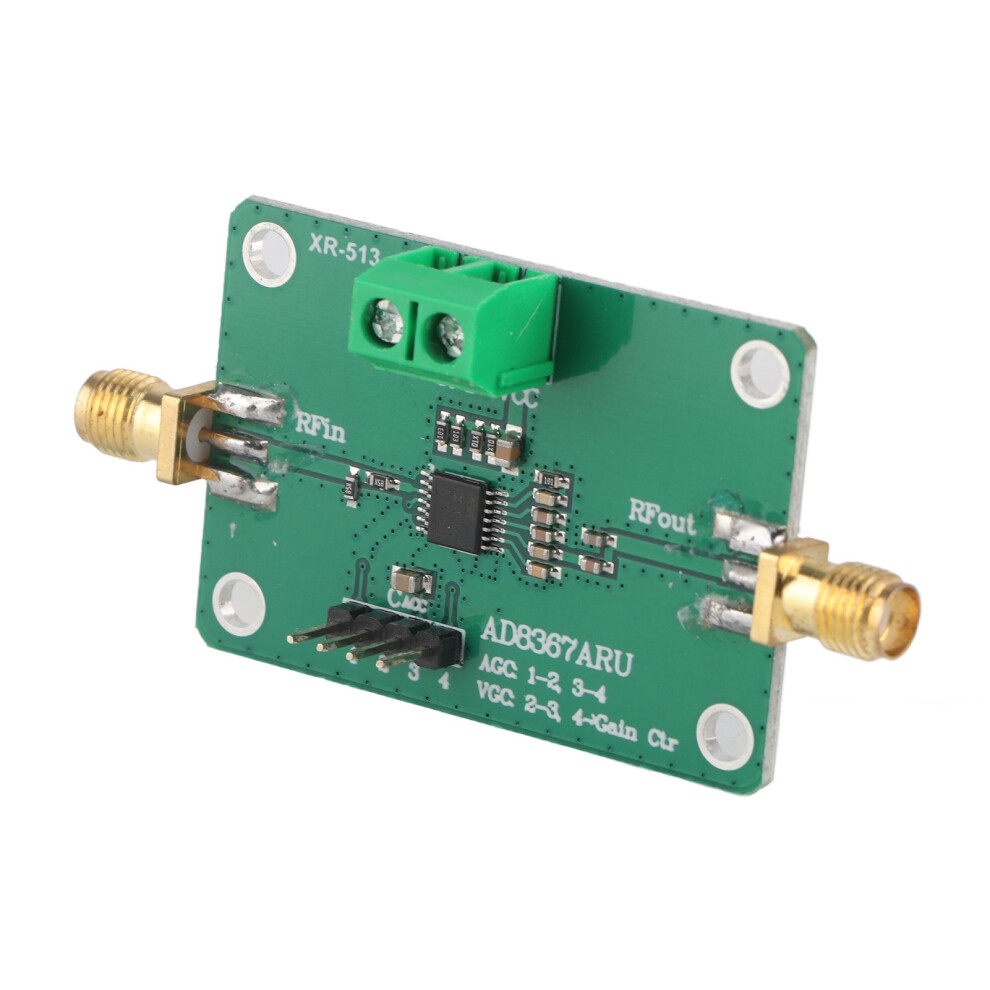

IF Amplifier Automatic Gain Control 0.1 To 500MHz Intermediate Frequency Amplifi
Feature: \n 1. Operating Frequency: The operating frequency range of this intermediate frequency amplifier is within 500MHz\n2. Automatic Gain Control Mode: The IF amplifier integrates squaring law detector, which can work in automatic gain control mode\n3. External Voltage Controlled Gain Mode: The IF amplifier can be configured in conventional VGA mode for applied voltage control\n4. 45dB Gain Control: The IF amplifier can achieve logarithmic linear gain control, and the gain control range is 45dB\n5. Easy to Use: This amplifier is small in size and light weight, easy to assemble, which is a perfect replacement for old module on the machine \n\nSpecification: \n\nItem Type: IF Amplifier\nMaterial: PCB\nWorking Voltage: 2.7-5.5V\nWorking Current: 28mA\nOperating Frequency: 0.1-500MHz\nMaximum Gain: 35dB\nMaximum Output: 5dBm\nAGC Range: 45dB\nSystem Impedance: 50 ohms\nInterface Form: SMA KE\n\nPackage List: \n 1 x\n\nIF Amplifier \n\nNote: \n Pay attention to the correct :
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
15,43 GBP | Go to shop |
