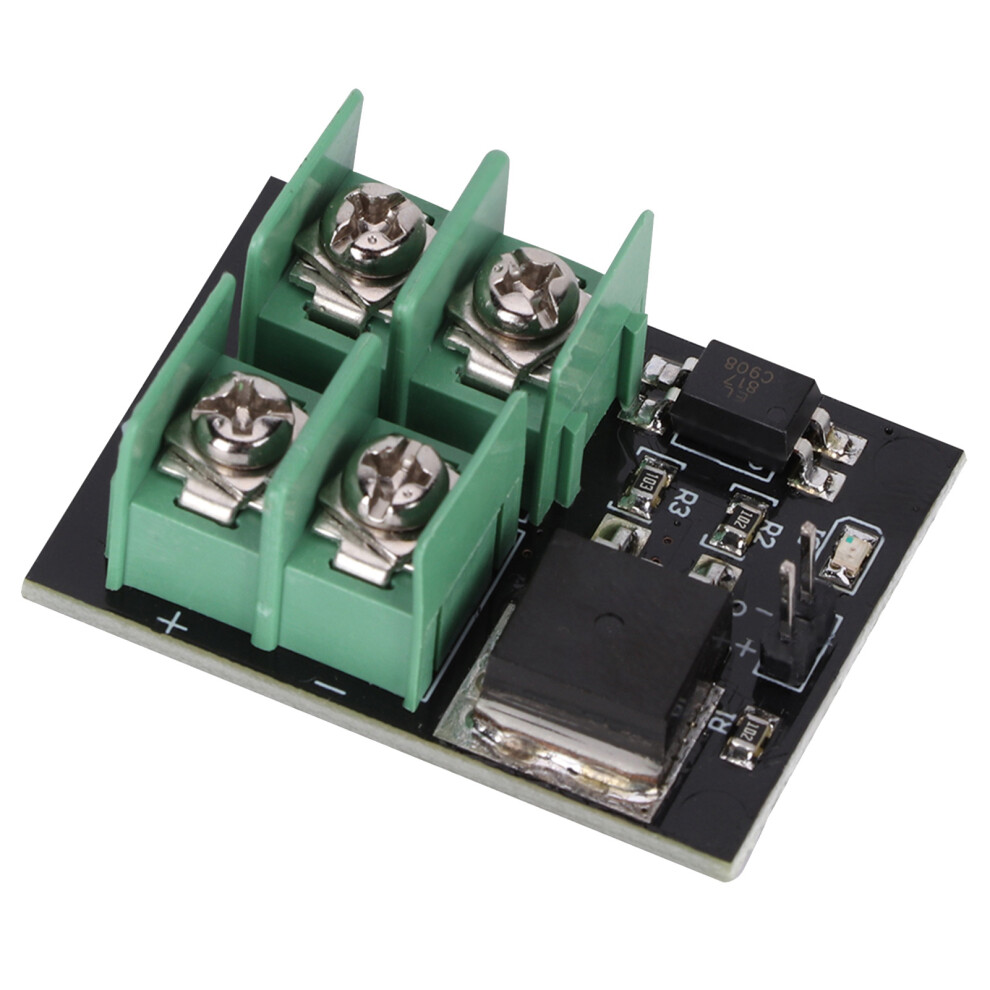

5V Low Voltage MOSFET Switch Module For Microcontroller PWM Control Trending

Feature: \n 1. The input and output screw terminal block of the host, the control terminal uses 2.54MM pins, and the wiring is convenient.\n2. The control can be directly connected to the microcontroller IO, and the MCU can use PWM to control the motor speed, light brightness, etc.\n3. The board uses optical isolation, completely separated from the 2 terminal voltage.\n4. The input is controlled by 2-pin control, and the ground control can be directly connected to the control switch.\n5. Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED. \n\nSpecification: \nCondition: 100% Brand New\nItem Type: MOSFET Switching Module\nMaterial: Synthetic Paperboard\nColor: As picture shown\nInput Control Voltage: DC 3.3V-12V\nOutput Charging Voltage: DC 5-36V\nControl Current: 1-5MA\nCharging Large Current: 22A \n\nPackage List: \n 1 x MOSFET Switching Module \n\n1. Our listing price includes the value of goods,packaging cost,and expo:
