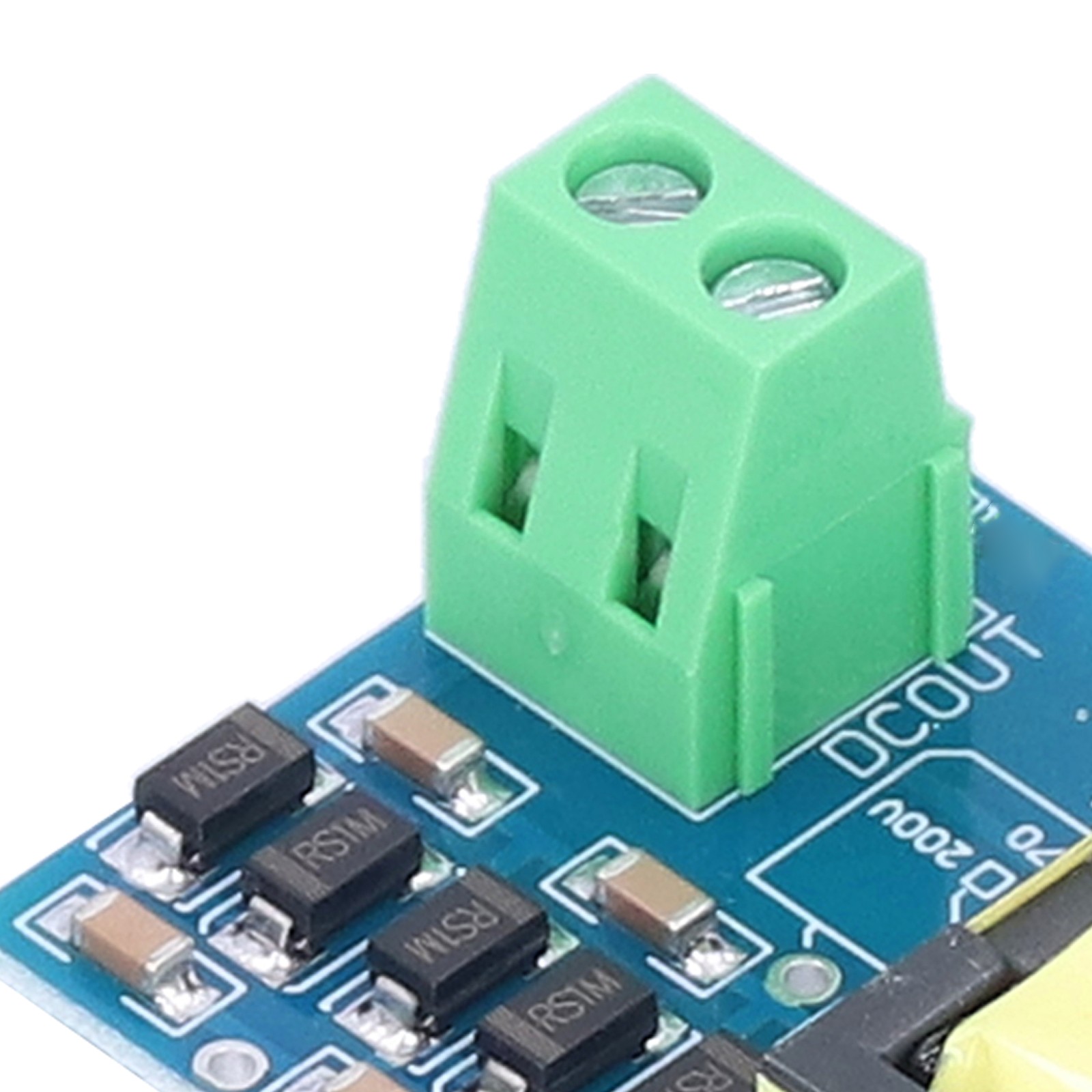

Adjustable 1000V Voltage Step Up Board For Security Products DC Boost Converter
Feature: \n 1. An excellent voltage boost module, allows for continuous adjustment and multiple voltage divider output.\n2. The voltage can be linearly adjusted in a wide range, from 100V to 1000V, and the maximum is 1200V.\n3. When the input voltage is 5V, the output voltage is adjustable in the range of 280V to 1200V.\n4. When the input voltage is 6-12v, the output voltage is adjustable in the range of 400V to 1200V.\n5. Enables further processing. Can be used in certain security products with great stability. \n\nSpecification: \n\nItem Type: DC\u2011DC Boost Converter\nProduct Material: Printed Circuit Board \nApplication: Used in security products. \nInput Voltage: 5-11V (maximum input 12V)\nOutput Current: 2 ~ 20mA (if you want to increase the current, please change the transformer under the insurance to a 0 ohm resistor, the maximum is 50mA, but it is not recommended to increase)\nThe Output Voltage:\nWhen the input voltage is 5V, the output voltage can be adjusted between 28:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
10,84 GBP | Go to shop |
