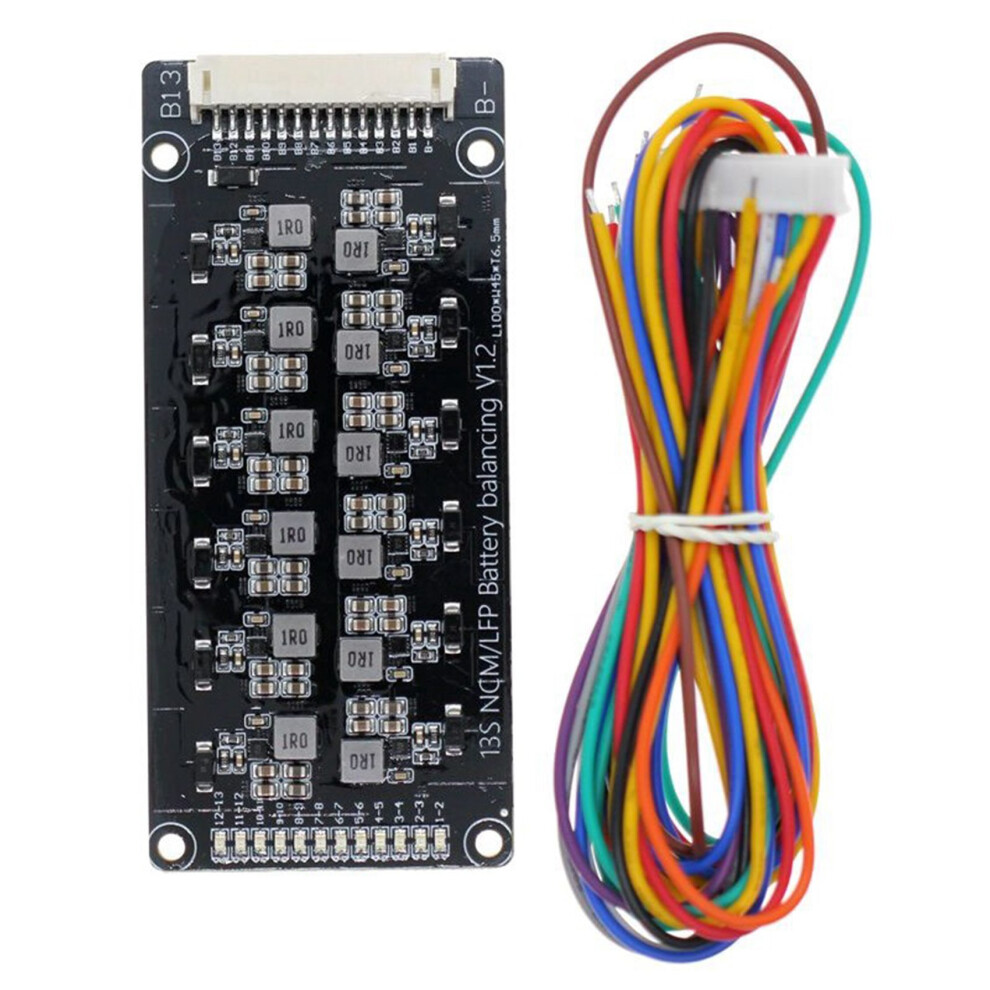

1.2A Active Equalizer Board For Lithium Battery Energy Transfer Premium
Feature: \n 1. ACTIVE EQUALIZER BOARD: Inductive energy transfer active equalizer board, used in battery packs to trigger equalization work due to adjacent pressure differences during charging and discharging.\n2. EQUALIZATION PRINCIPLE: Adjacent voltage difference equalization, when the voltage difference between adjacent battery is 0.1V or above, the chip triggers equalization work until it stops working within 0.03V.\n3. 3.2V LITHIUM IRON PHOSPHATE: The balanced cut off voltage is 3.55V, balanced current is 500mA, maximum balanced current opening voltage is 3.6V, and charging recovery voltage matched with the protection IC is 3.6V.\n4. 3.7V LITHIUM BATTERY: The balanced cut off voltage is 4.17V, balanced current is 530mA, maximum balanced current opening voltage is 4.2V, and charging recovery voltage matched with the protection IC is 4.18V.\n5. GOOD PERFORMANCE: High accuracy energy transfer equalization, with excellent balance IC, 1.2A high current, significantly balancing batter:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
8,90 GBP | Go to shop |
