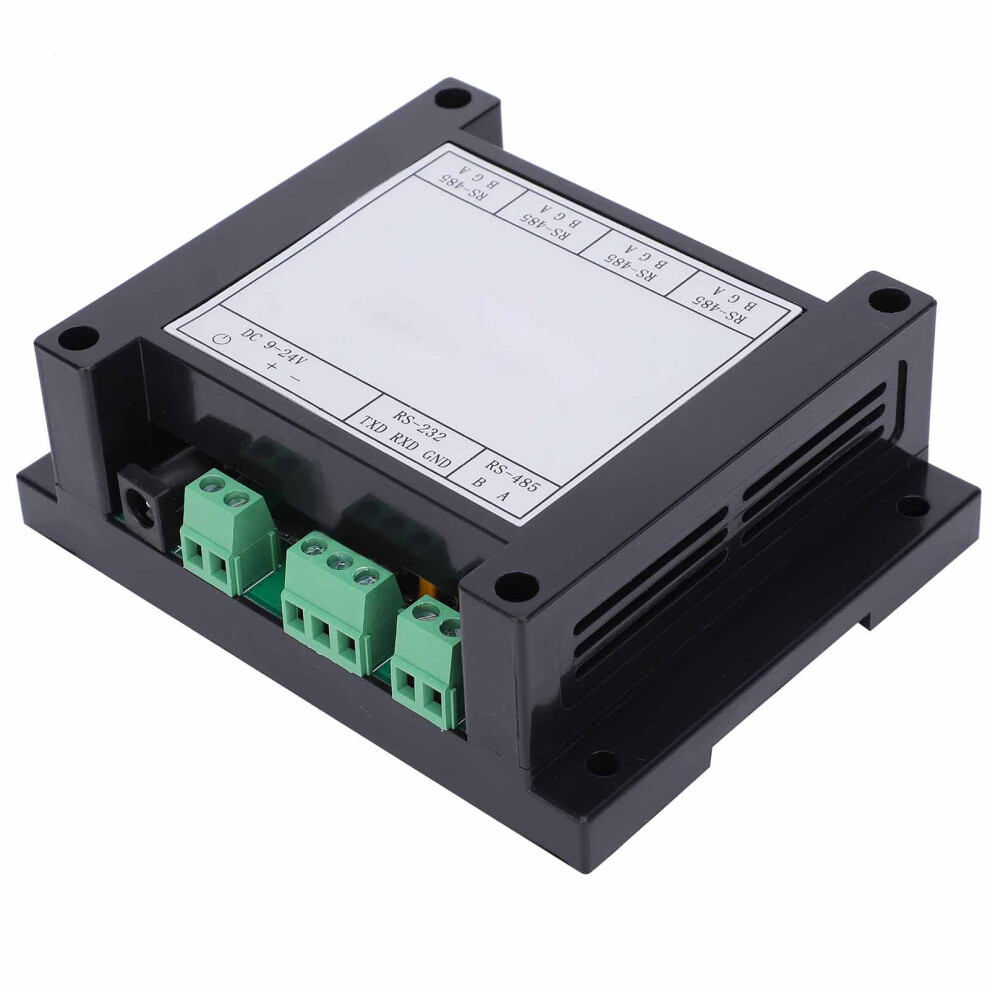

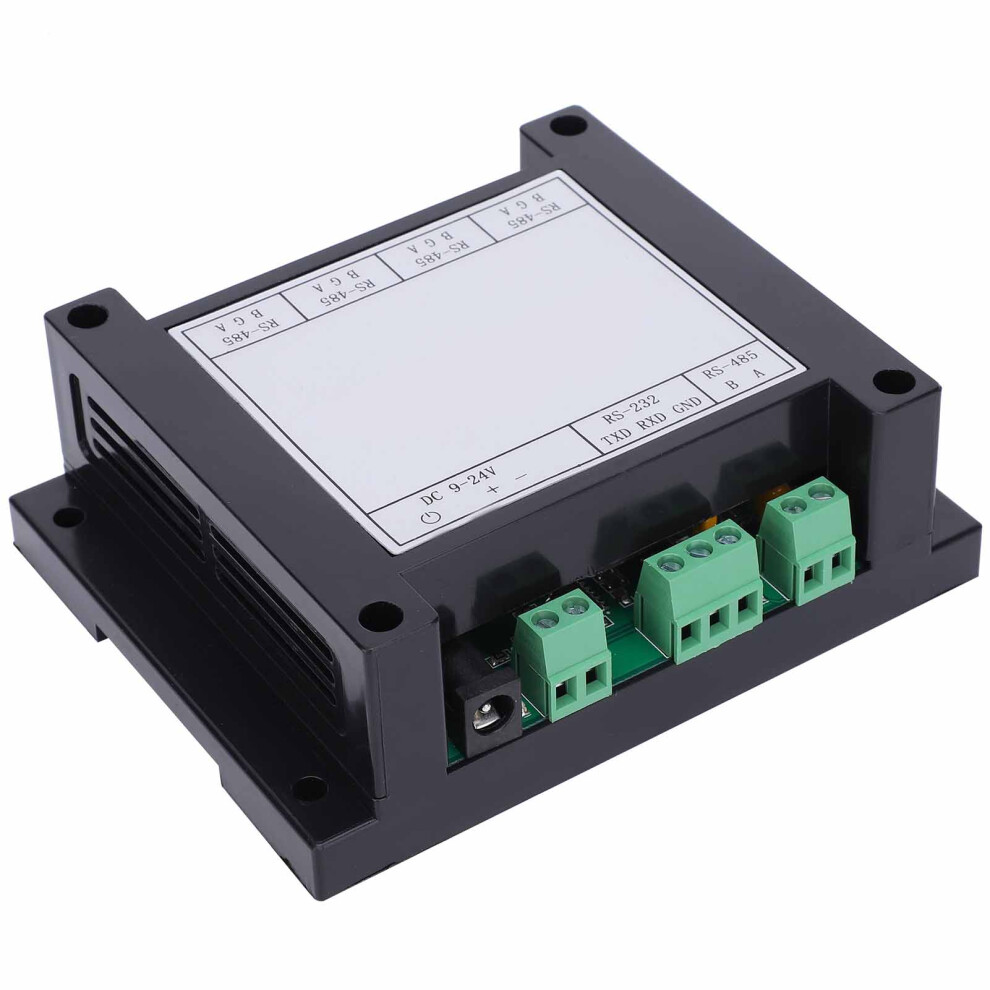

Repeater Industrial Grade Photoelectric Isolation 4‑Channel RS485 Hub Sharer Spl
Feature: \n 1. Industrial\u2011grade design, complete communication isolation, stable performance and transmission rate up to 115.2Kbps.\n2. Built\u2011in DC/DC isolated power supply module to achieve electrical isolation between ports.\n3. Support multi\u2011machine communication, each channel can connect up to 128 nodes, and the longest transmission distance is 2500 meters.\n4. Data automatic control technology, automatically distinguish and control the data transmission direction.\n5. Multiple protection measures, plus or minus 15KV ESD protection, 600W dual\u2011channel TVS protection 2.5KV communication isolation.\n6. The power supply has a wide range of 9-24VDC and has anti-reverse protection. \n\nSpecification: \n\nItem Type: Repeater \nCompatibility: Compatible with RS-232, RS-485TIA/EIA standards\nWorking Voltage: DC: 9-24V\nRated Power: 0.5-1.2W\nInput Interface: 1 RS-232/1 RS-485\nOutput Interface: 4 RS-485\nLoad Capacity: 128 nodes per interface\nCommunication :
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
30,17 GBP | Go to shop |
