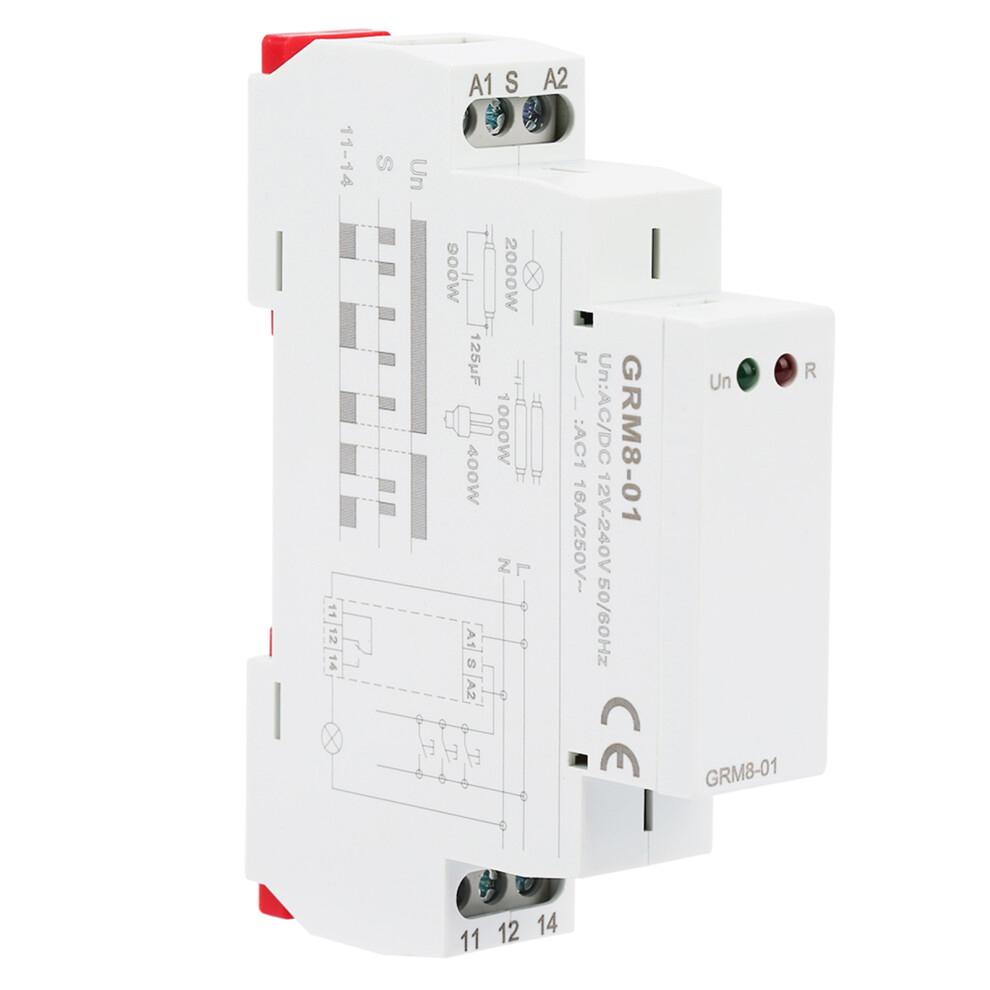

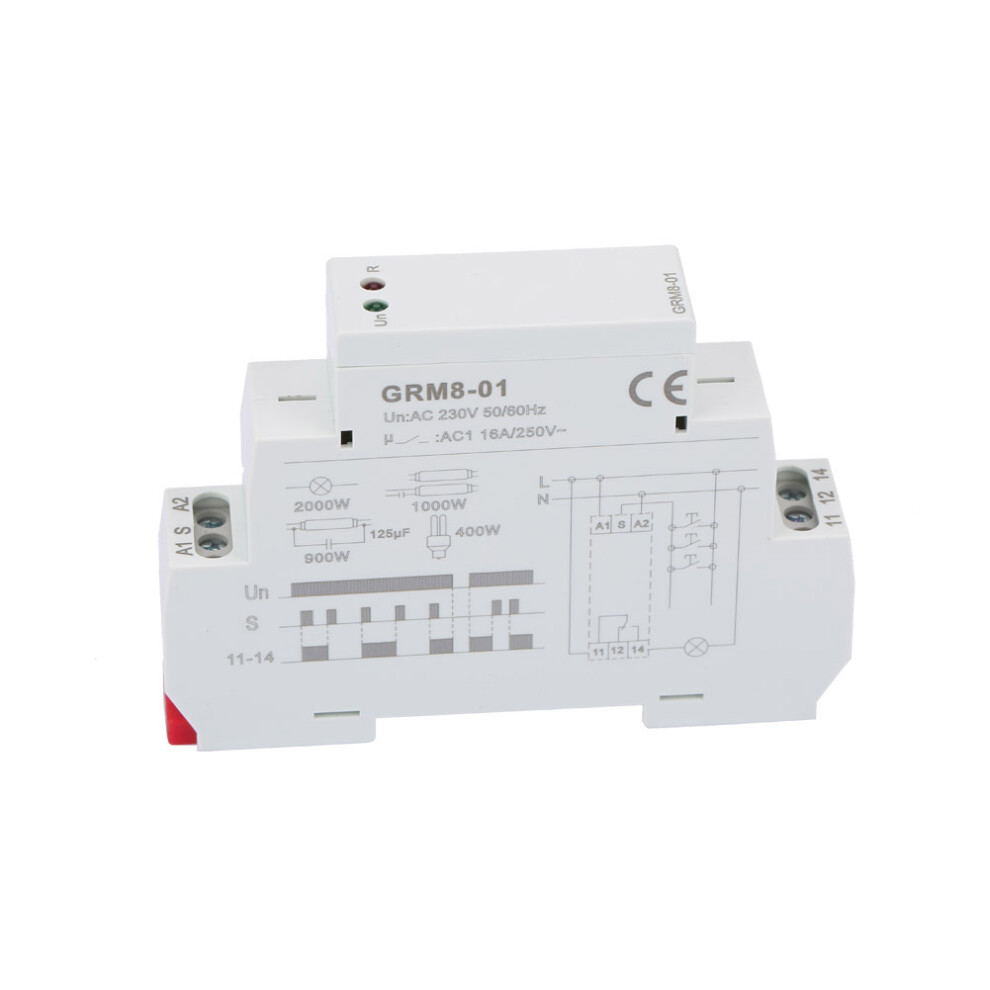

GRM8-01 Electronic Impulse Relay Compact And Reliable For Automation Needs

GRM8-01 Electronic Impulse Relay Compact And Reliable For Automation Needs

Feature: \n 1. This impulse relay can achieve multi point control by impulse commands.\n2. Relay working status is indicated by LED indicators.\n3. With small volume, only 18mm width, 35mm DIN rail mount.\n4. Simple structure, easy to wire and mount.\n5. Stable performance, long service life. \n\nSpecification: \n\nFeatures:\n\n1. This impulse relay can achieve multi point control by impulse commands. \n\n2. Relay working status is indicated by LED indicators. \n\n3. With small volume, only 18mm width, 35mm DIN rail mount. \n\n4. Simple structure, easy to wire and mount. \n\n5. Stable performance, long service life. \n\n  \n\nSpecification: \n\nModel: GRM8-01 \n\nPower terminal: A1-A2 \n\nRated power supply voltage: AC/DC 12-240V (50-60Hz) \n\nPower consumption: AC0.09-3VA/DC0.05-1.2W \n\nSupply voltage tolerance: -15%; +10% \n\nPower indicator: Green LED \n\nControl terminal: A1-S \n\nControl signal width: Min. 25mm \n\nOutput contact: 1 x SPDT, 16A/AC1:

Compare prices (1 shop)

Sort: Price: lowest first Price: highest first
shop Price Action
18,13 GBP Go to shop
