Neutrik Cable Mount XLR Connector, Right Angle, Female, 50 V ac, 5 Way, Silver over Nickel Plating

Name: Neutrik Cable Mount XLR Connector, Right Angle, Female, 50 V ac, 5 Way, Silver over Nickel Plating
Brand: Neutrik

Neutrik

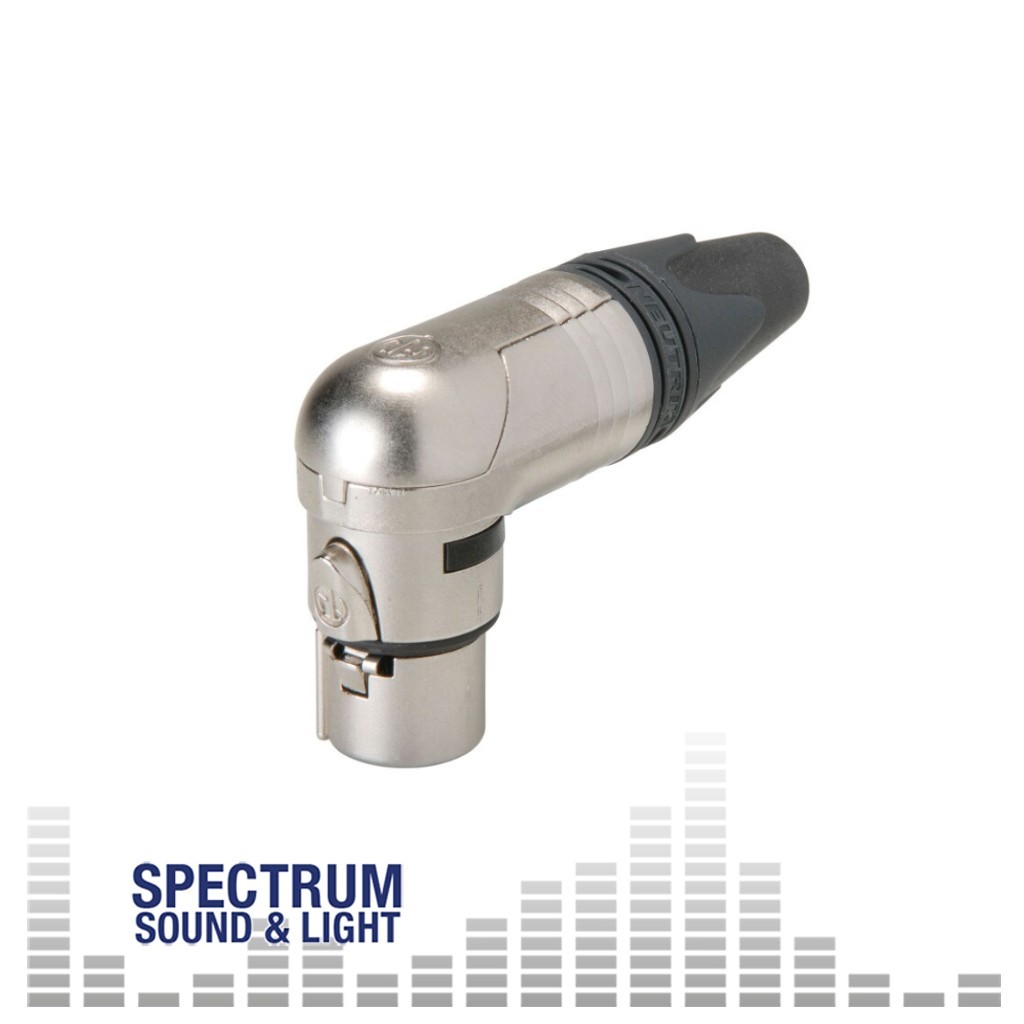

The NC5FRX from Neutrik is a 5 pole right angle extra slim female XLR cable connector with solder contact wiring. This connector has a boot with polyurethane gland gives high protection to cable bending stresses. The female contact incorporates a solder b Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier & faster Polyamide (PA 6.6 30 % GR) insert, brass (CuZn39Pb3) contacts with silver plating Zinc die-cast (ZnAl4Cu1) shell with nickel plating, polyacetal (POM) strain relief Coloured rings and boots available for coding or identification Dielectric strength of 1.5KVDC, 7.5A rated current per contact and rated voltage 50V Lifetime 1000 mating cycles, maximum wire size of 18AWG (1.0 mm²) UL ECBT2.E135070 and cUL ECBT8.E135070 certified Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class Latch lock device
