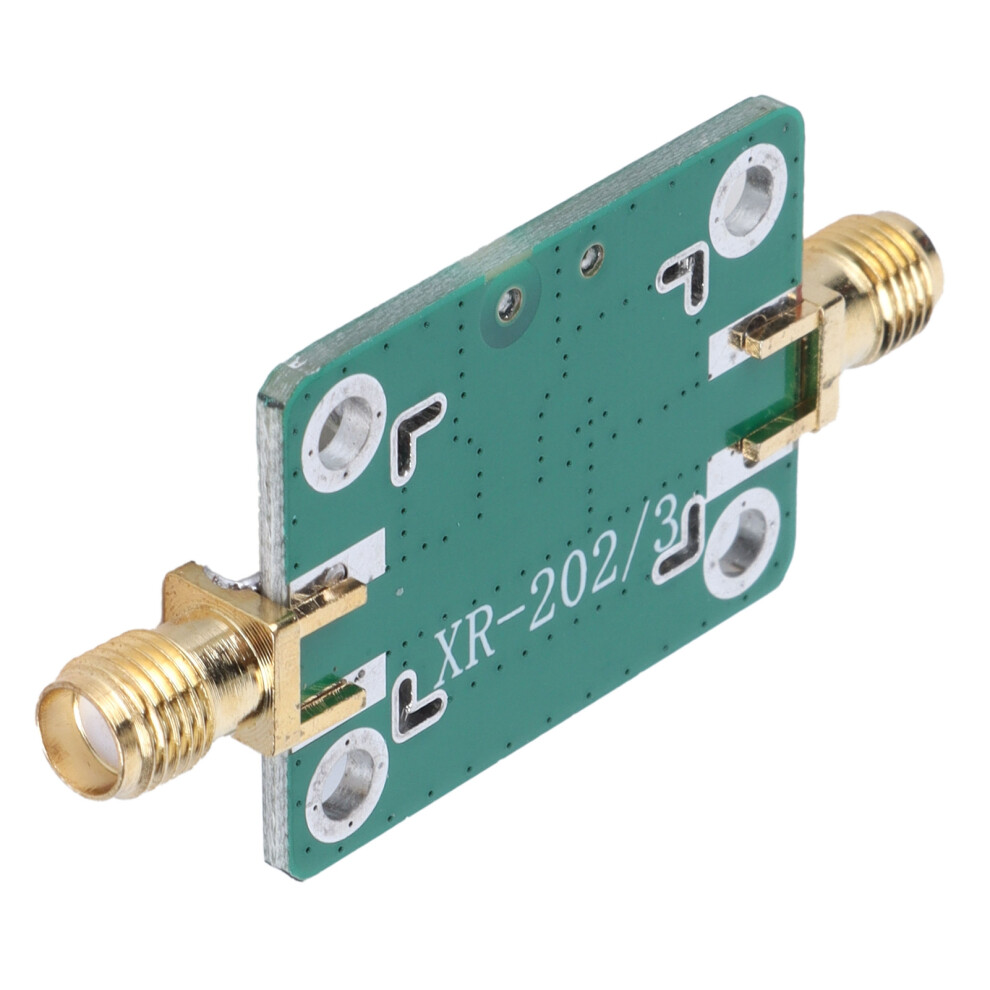

Low Noise Amplifier Module RF LNA Electronic Components XR202/3 0.14000MHz 20dB
--\n--\n--\n\nFeature: \n 1. Have the advantages of wide operating frequency range, stable gain, low power supply voltage, low current consumption, etc.\n2. Can be used to amplify various radio frequency signals, easy and convenient to use.\n3. Widely used in FM broadcasting, remote control receiver, cable TV, gps, Beidou receiver, wifi bluetooth receiving circuit, etc.\n4. Small in size and light in weight, convenient to carry and use at any time, very convenient and practical.\n5. With stable and excellent performance can be used to replace old or damaged low noise amplifier module. \n\nSpecification: \n\nItem Type: Low Noise Amplifier Module\nMaterial: PCB\nModel: XR-202/3\nFrequency Range: 0.1--4000MHz\nPower Supply Voltage: DC 3-5.5V\nMaximum Power: +3dBm (3mW) at 1dB compression point\nWorking Current: 14mA (3.3V); 25mA (5.0V)\nSystem Impedance: 50\u03A9\nRF Connector: SMA standard female (outer screw and inner hole)\nUse: Amplify gain\nF=70MHz gain=22dB Typical gain(5.0V) \nF=-
