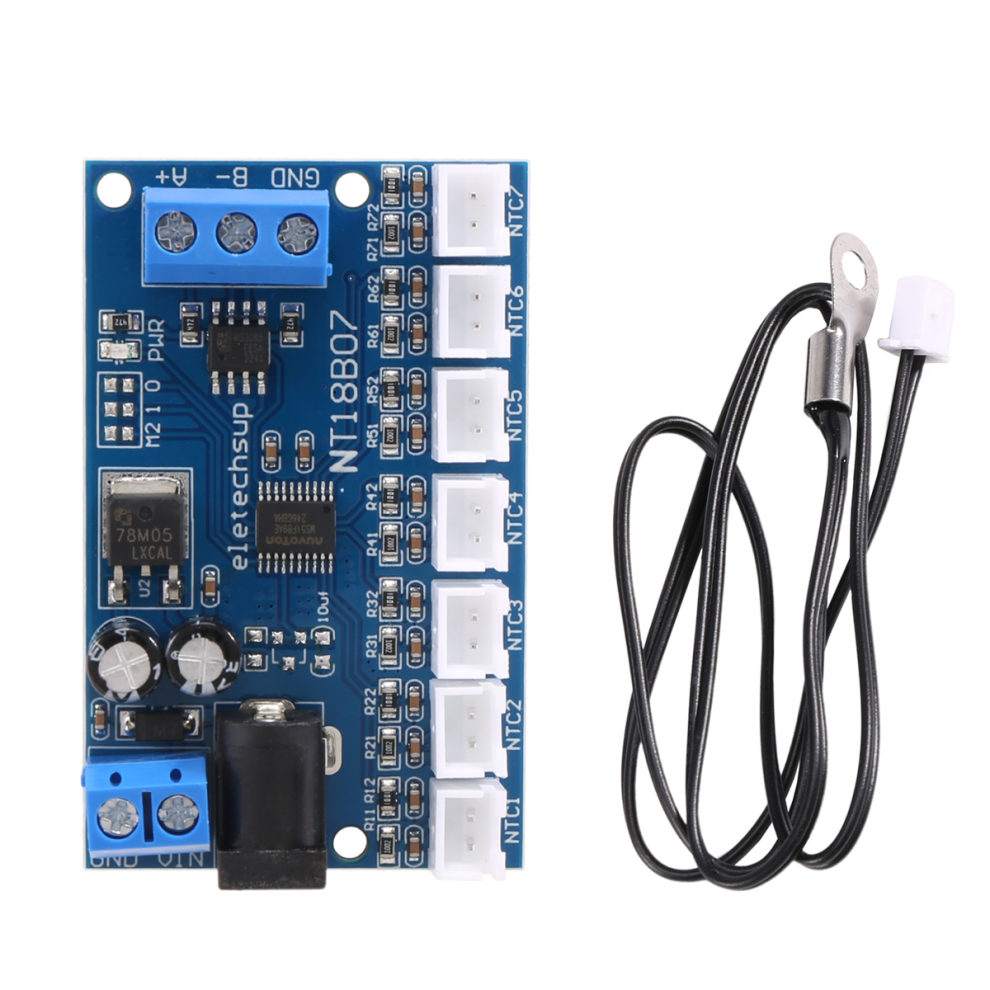

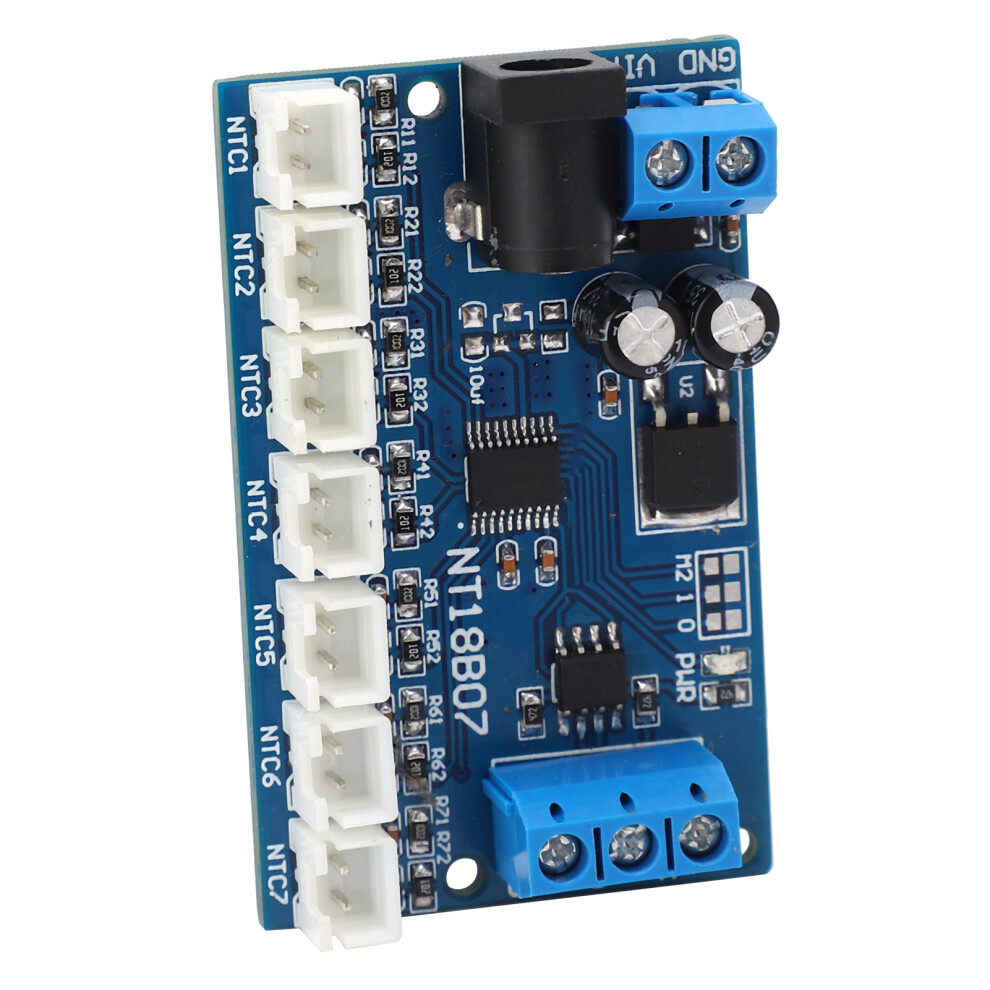

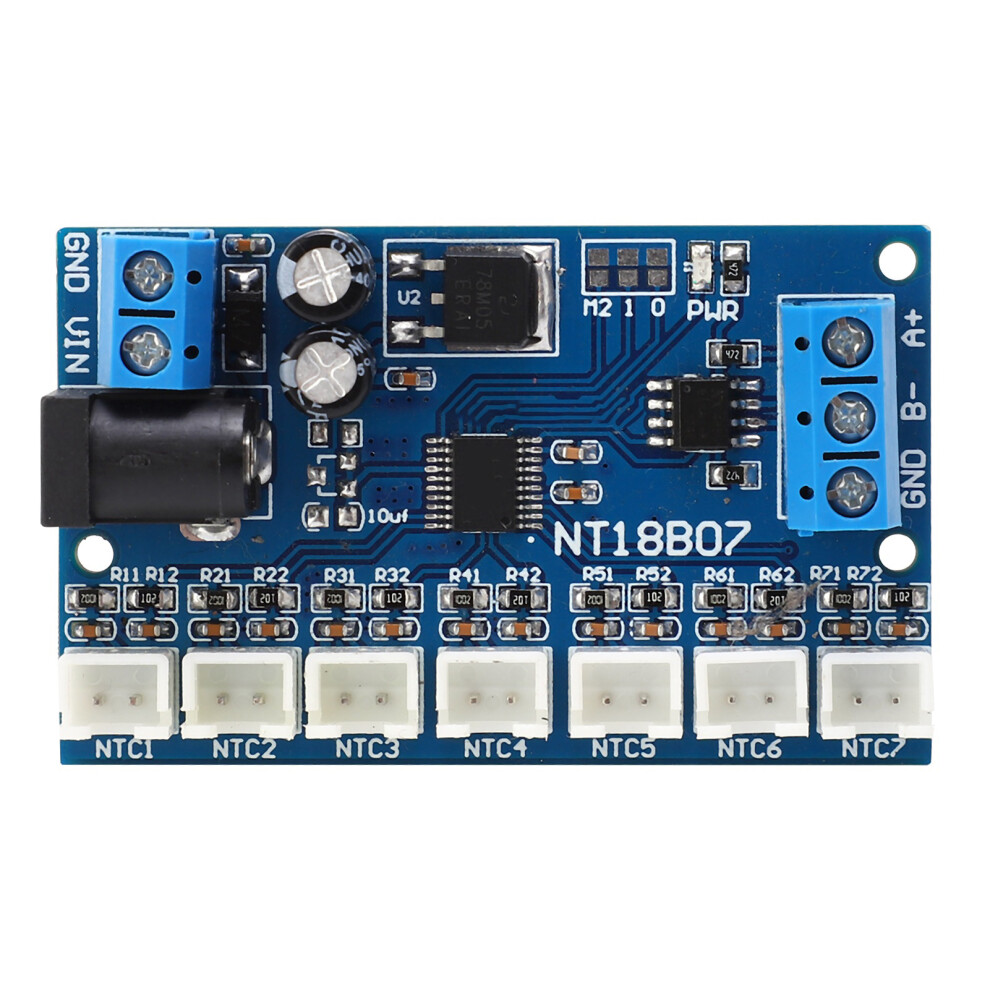

Module NT18B07 7‑Channel Board RS485 For Temperature Snesor Paperless Recorder
--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n\nFeature: \n 1. The module can be used with our temperature sensor with temperature measurement range from \u201120\u00B0C to 125\u00B0C and the accuracy up to 1%.\n2. The power supply voltage of the module is 6-24V and the working current is 8-15MA.\n3. High quality material can make sure the durability and stability of the module.\n4. By modifying the 485 address, up to 247 modules can be cascaded for use, which is quite practical.\n5. With professional design and reasonable structure, the module is easy to replace and install. \n\nSpecification: \n\nItem Type: Module\n1. Function Description:\nPower Supply Voltage: 6-24V\nWorking Current: 8-15MA (related to the number of external )\nBy modifying the 485 address, up to 247 modules can be cascaded for use (if more than 16, please use R485 repeaters)\nAdapted Sensor: B3950 10K 1% thermistor, up to 7 sensors can be connected at the same time\nTemperature Measur-
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
12,70 GBP | Go to shop |
