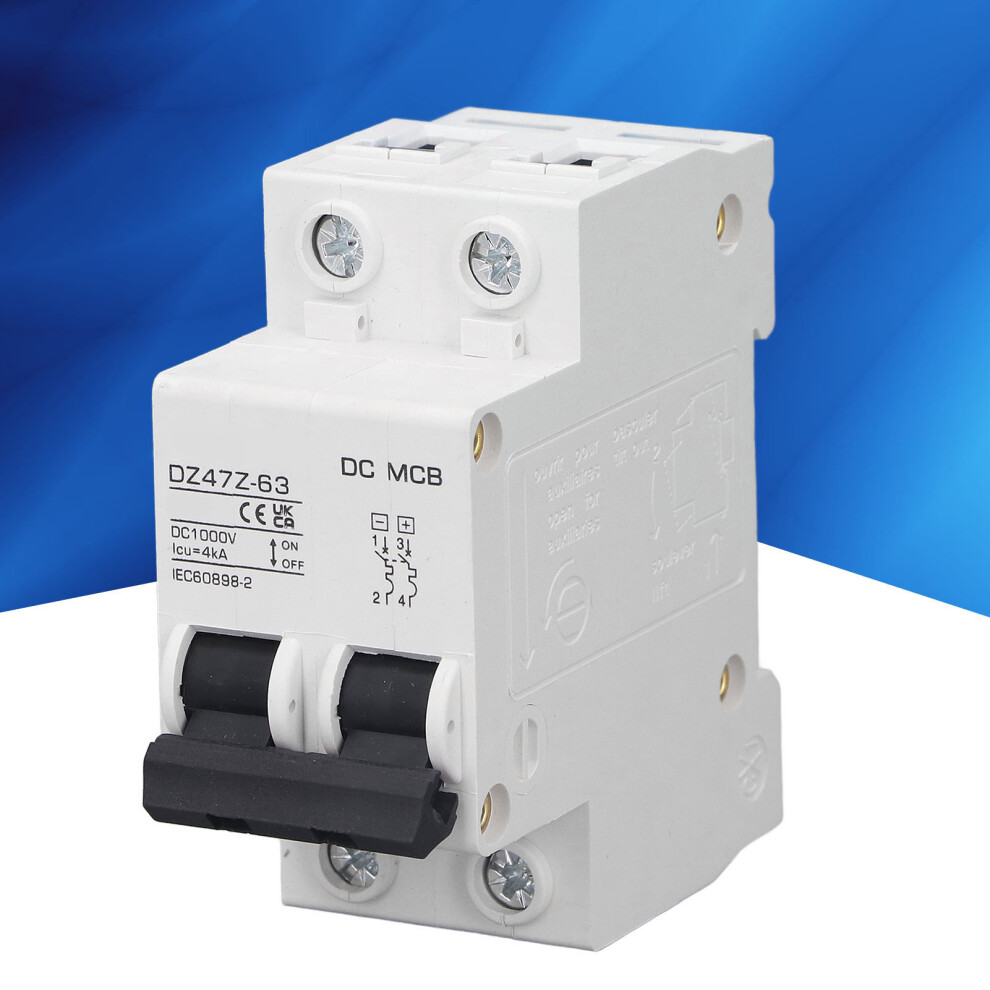

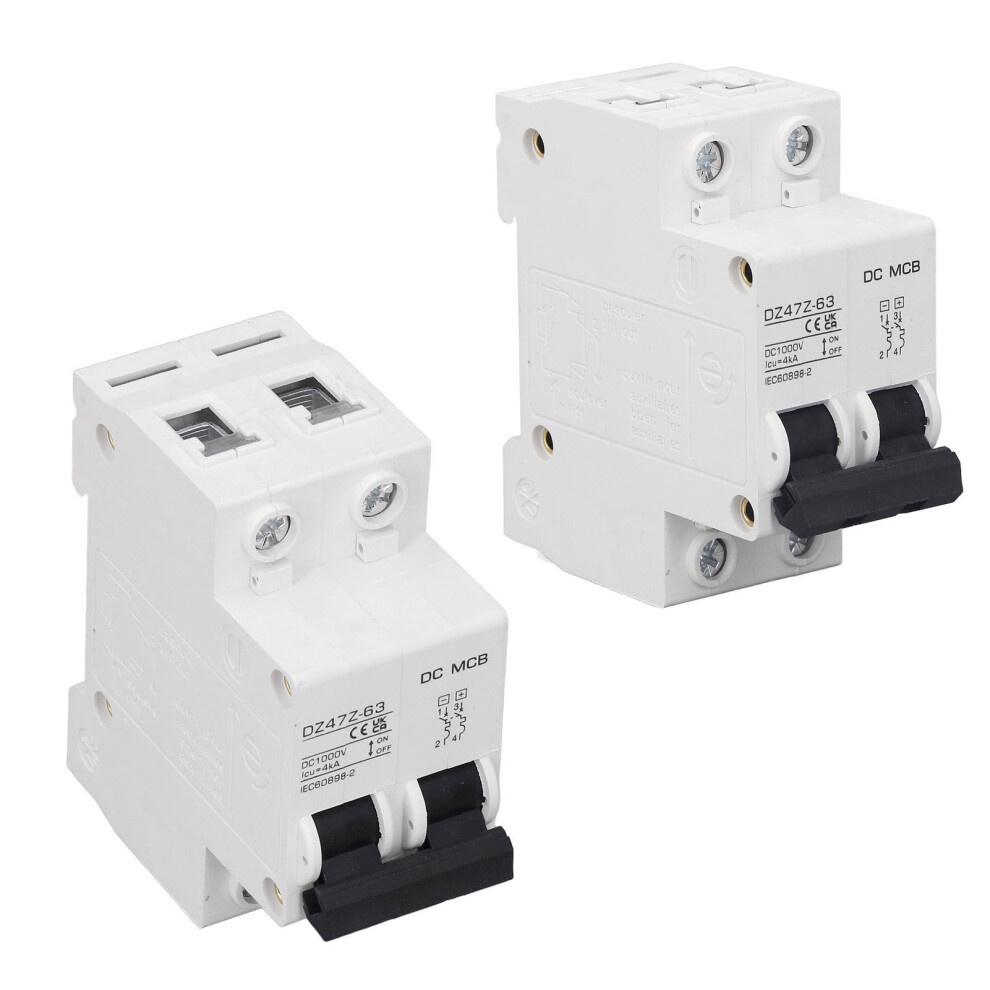

DC Circuit Breaker Overload Protection Magnetic System PV Circuit Breaker 2P
--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n--\n\nFeature: \n 1. Function: This circuit breaker is used to defend power distribution facilities from overload and short circuit damage, and can also be used for control and isolation.\n2. Fast Tripping: The electromagnetic tripping system in the circuit breaker can trip immediately in case of short circuit to defend circuit safety.\n3. Arc Extinguishing: DC arc extinguishing is more difficult than AC arc extinguishing. The DC circuit breaker has a magnetic system for auxiliary arc extinguishing.\n4. Wide Application: This circuit breaker is widely used in DC power supply system, ship power system, solar photovoltaic system or other DC systems.\n5. Installation Instruction: The circuit breaker has a modular structure, screw clamp, 35mm DIN rail installation. \n\nSpecification: \n\nItem Type: DC Circuit Breaker\nMode: DZ47Z 63\nMaterial: Pa66\nRated Voltage: DC 1000V\nRated Ultimate Short Circuit Breaking Capacity-
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
12,11 GBP | Go to shop |
