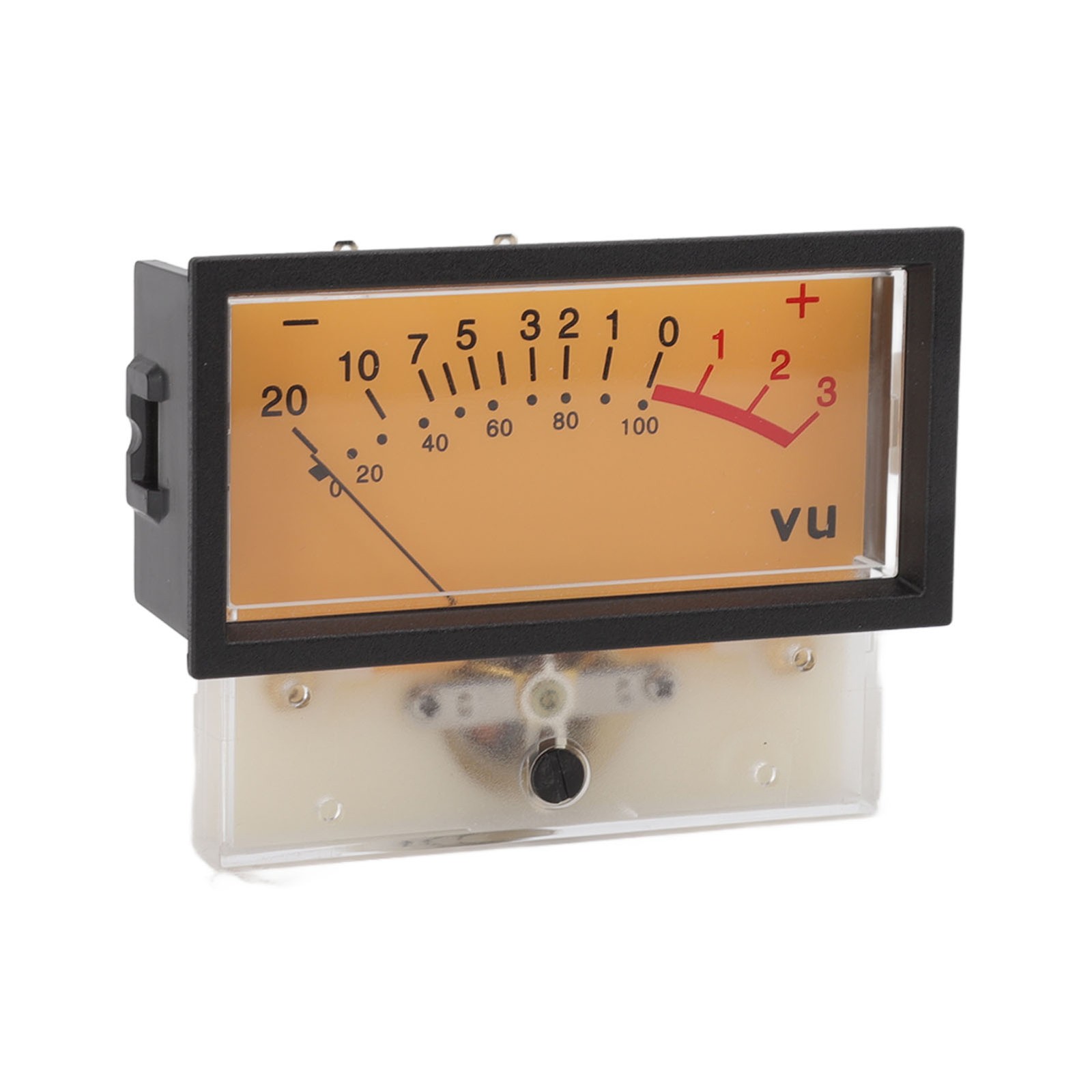

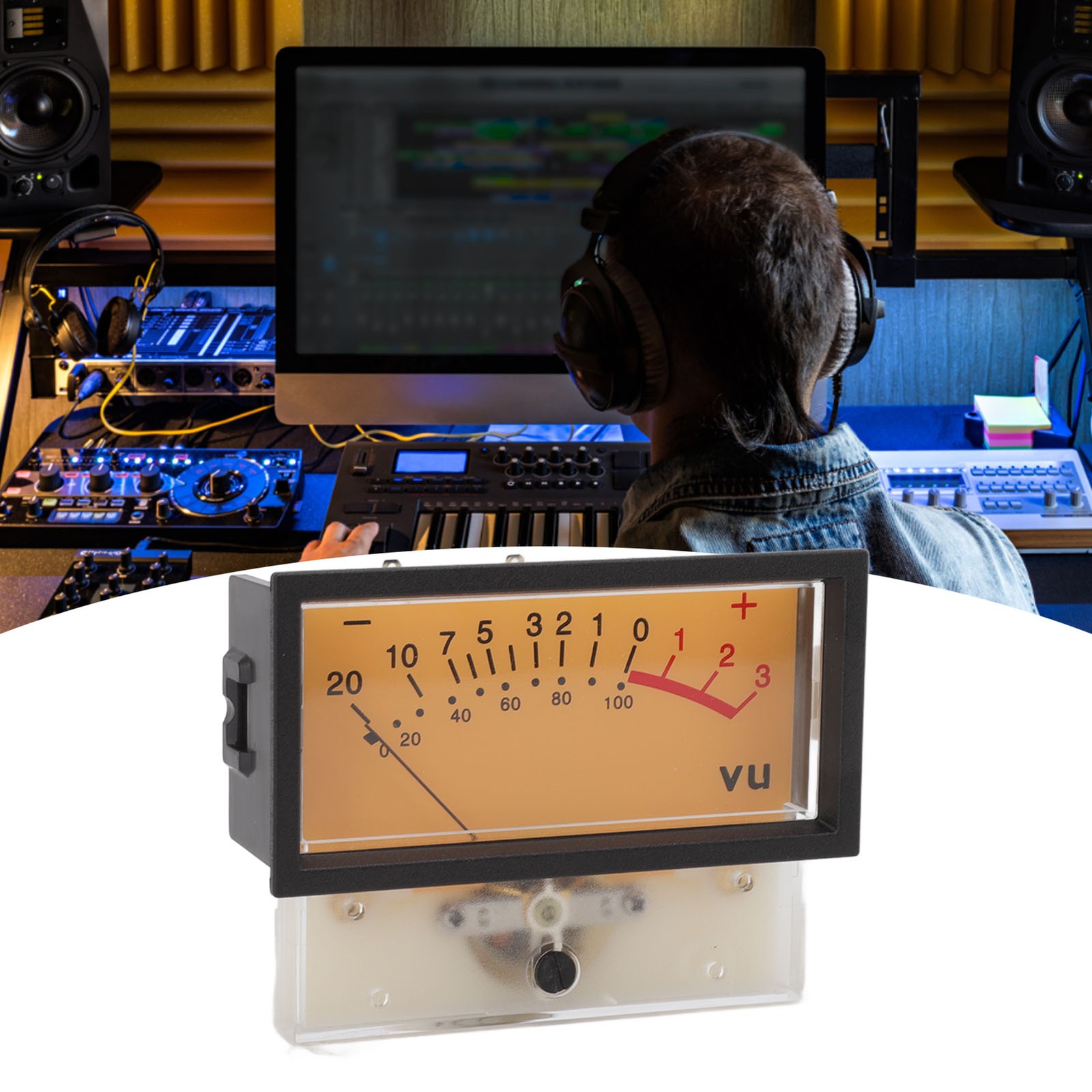

High Accuracy VU Meter Header For Audio DB Level Recommended
Feature: \n 1. With pointer dial, high accuracy, can directly display measurement results.\n2. Suitable for , recording studio, home audio, car audio transform, etc.\n3. VU meter is the most basic tool in audio equipment, easy to install and use.\n4. Made of high\u2011quality ABS materials, it has excellent durability and stability.\n5. Exquisite workmanship, strong practicability, and long service life. \n\nSpecification: \n\nItem Type: VU Meter\nMaterial: ABS\nColor: As shown in the picture\nOverall Size: Approx.62x56x84mm/2.44x2.2x3.31in\nModel: TN-73-HS-9213H\nInternal DC Impedance: 650\u03A9/500uA\nInsulation Resistance: 50M\u03A9\u00B110%\nMaximum current sensitivity: 650uA\u00B110%\nBacklight Board: DC 12V 1.2W\nFriction: \u00B11mm/0.04in\nPointer Length: 30mm/1.18in\u00B11mm/0.04in from the pointer tip to the axes\nPointer Width: 0.45mm/0.02in\u00B10.05 mm/0.002in\nWorking Direction: Vertical\n\nPackage List: \n1 x VU Meter\n2 x Screw\n1 x Display Frame\n2 x Metal Plate \n\nN:
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
23,32 GBP | Go to shop |
