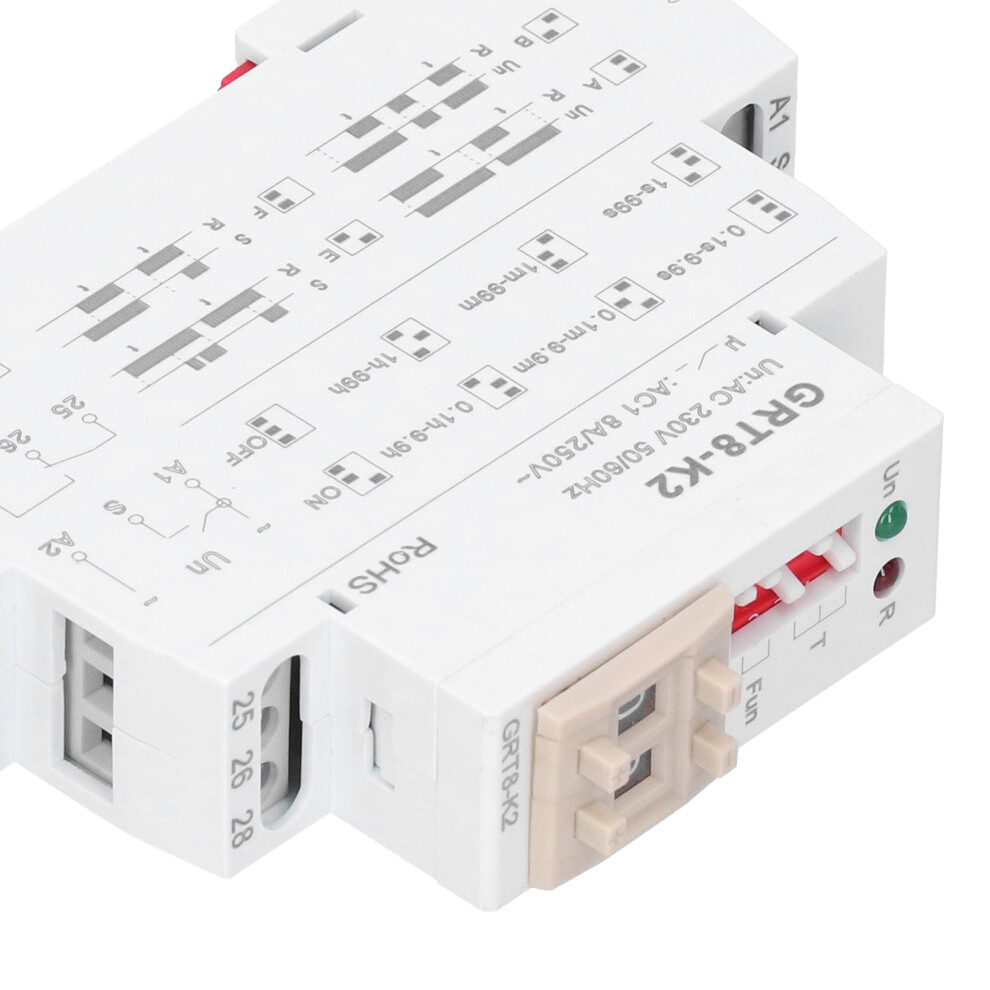

.AC230 50/60HZ Time Relay 2 Open 2 Close 4 Delay Modes 0.1s -99h Delay Range

Feature: \n 1. AC230 50/60HZ time relay, 4 delay modes can be set, which can meet different needs.\n2. Offers more accurate setting as it adopt digital dialing setting method.\n3. Features ultra\u2011wide delay range, 0.1 second to 99 hours can be set.\n4. IP20 protection level, 1x100000000 mechanical life, 1x1000000 electrical life.\n5. 35mm rail installation, easy and fast, can be installed in any position at will. \n\nSpecification: \n\nItem Type: Time Relay\nMaterial: ABS\nFunction: A, B, E, F\nPower Terminal: A1-A2\nRated Control Power Supply Voltage: AC230 50/60HZ\nPower Consumption: AC 0.09-3VA/DC 0.05-1.7W\nPower Consumption: AC maximum 6VA/1.9W\nPower Supply Allowable Fluctuation Range: -15%; +10%\nRated Impulse Withstand Voltage: 2.5kV\nRated Insulation Voltage: 250V\nPower Indicator: Green LED\nDelay Range: 0.1 second -99 hours, normally open, normally closed\nSetting Method: Digital Dialing Setting\nDelay Accuracy: 1%\nRepeatability: 0.2%\nTemperature Fluctuation Error: 0:
