Current Transformer 500/5A, Class 0.5 DM DM DM Converter DM3T0500

Name: Current Transformer 500/5A, Class 0.5 DM DM DM Converter DM3T0500
Brand: LOVATO ELECTRIC

LOVATO ELECTRIC

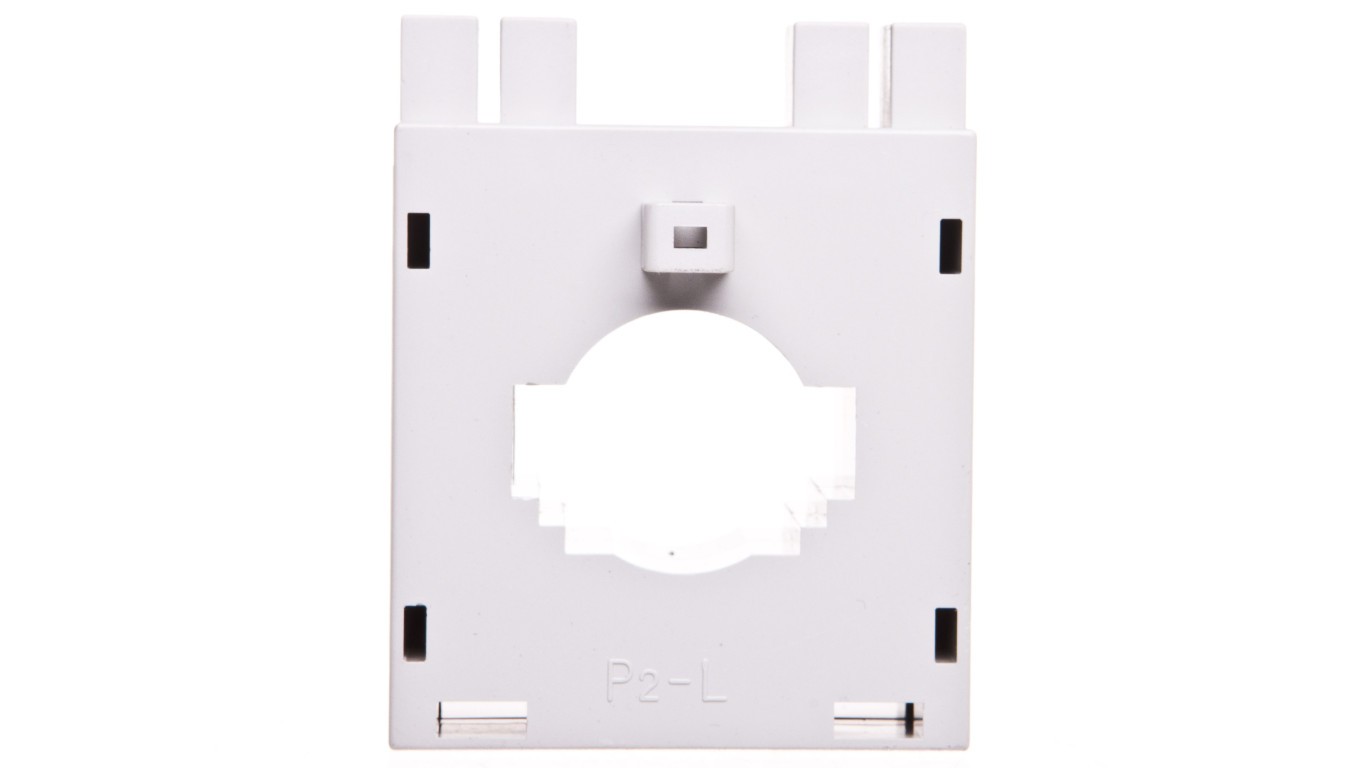

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nCurrent transformer 500/5A, class 0.5, for 30mm fi cable, for rails: 40x10mm, 30x20mm, 25x25mm DM3T0500\nLOVATO ELECTRIC\nMPN : DM3T0500\nEAN: 8013975121887\nPassage Width: 40\nPassage Diameter: 30\nHeight of passage: 10\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\nPassage Width [mm]40mm\nNumber of Primary Inputs1\nPassage Diameter [mm]30mm\nClearance Height [mm]10mm\nRated Secondary Apparent Power [VA]10 VA\nRated Secondary Current [A]5A\nRated Primary Current [A]500A\nAccuracy Class0.5000\nSurge CoefficientFS 5\nWith touch protectionYes\nSecondary circuit connectionPlug Connection\nCalibratedNo\nModelPass-through converter per cable\nWith copper barNo\nSnap FasteningNo\n\nProduct Description\n\nOriginal Page 500A\n\nSecondary side 5A\n\nTransducer with hole diameter 30 mm, for rails 40 x 10 mm, 30 x 20 mm, 25 x 25 mm.\n\nDM Series current transformers...are installed in .
