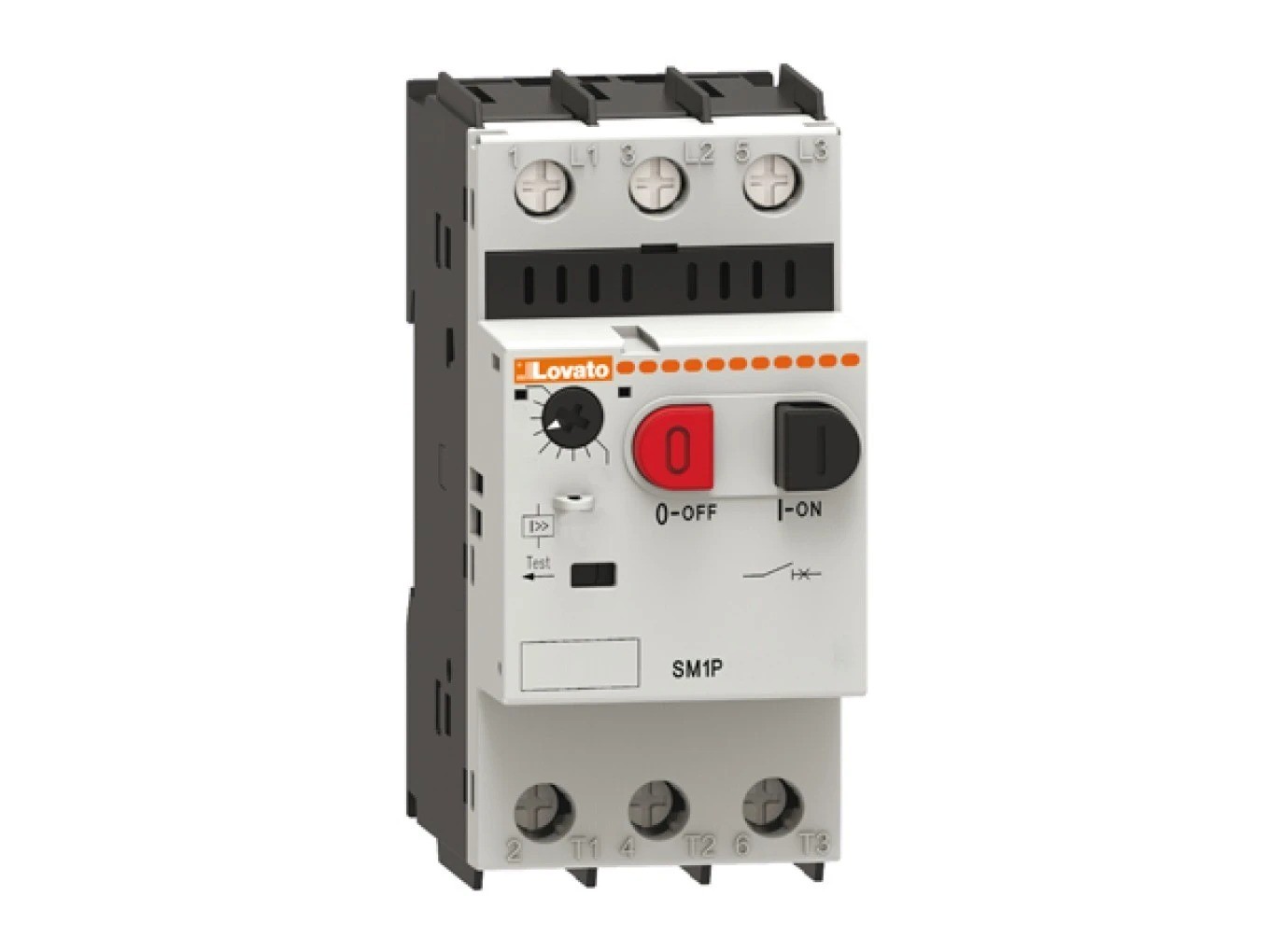

Motor switch SM1P0063 with buttons 0.4-0.63A 100kA 400V SM1P0063

Name: Motor switch SM1P0063 with buttons 0.4-0.63A 100kA 400V SM1P0063
Brand: LOVATO

LOVATO

Welcome to the Patkor store auction\nIn this auction we offer:\n\n1 Pcs, Brand New\nMotor switch SM1P0063 with buttons 0.4-0.63A 100kA 400V SM1P0063\nParameters:\n\n--CN: 8536201000\n-- PKWiU: 27/12/22.0\n-- Degree of protection (IP): IP20\n-- Device construction: Permanently mounted device\n-- Main circuit connection type: Screw connection\n-- Release method: Thermomagnetic\n-- Overload release setting range [A] from: 0.4\n-- Setting range of the overload release [A] up to: 0.63\n-- Rated operating voltage [V]: 400\n-- Number of poles: 3\n-- Rated continuous current Iu [A]: 0.6300\n-- Rated short-circuit breaking capacity Icu at 400 V, AC [kA]: 100\n\nSM1P\u2026 motor switches are used to control and protect electric motors. Protection type: short circuit and overload. Control type: Buttons. Up to 40A in a housing only 45mm wide. Suitable for modular switchboards. Padlock in OFF position. Rated insulation voltage Ui according to IEC: 690V. Rated impulse voltage Uimp according to IECS
