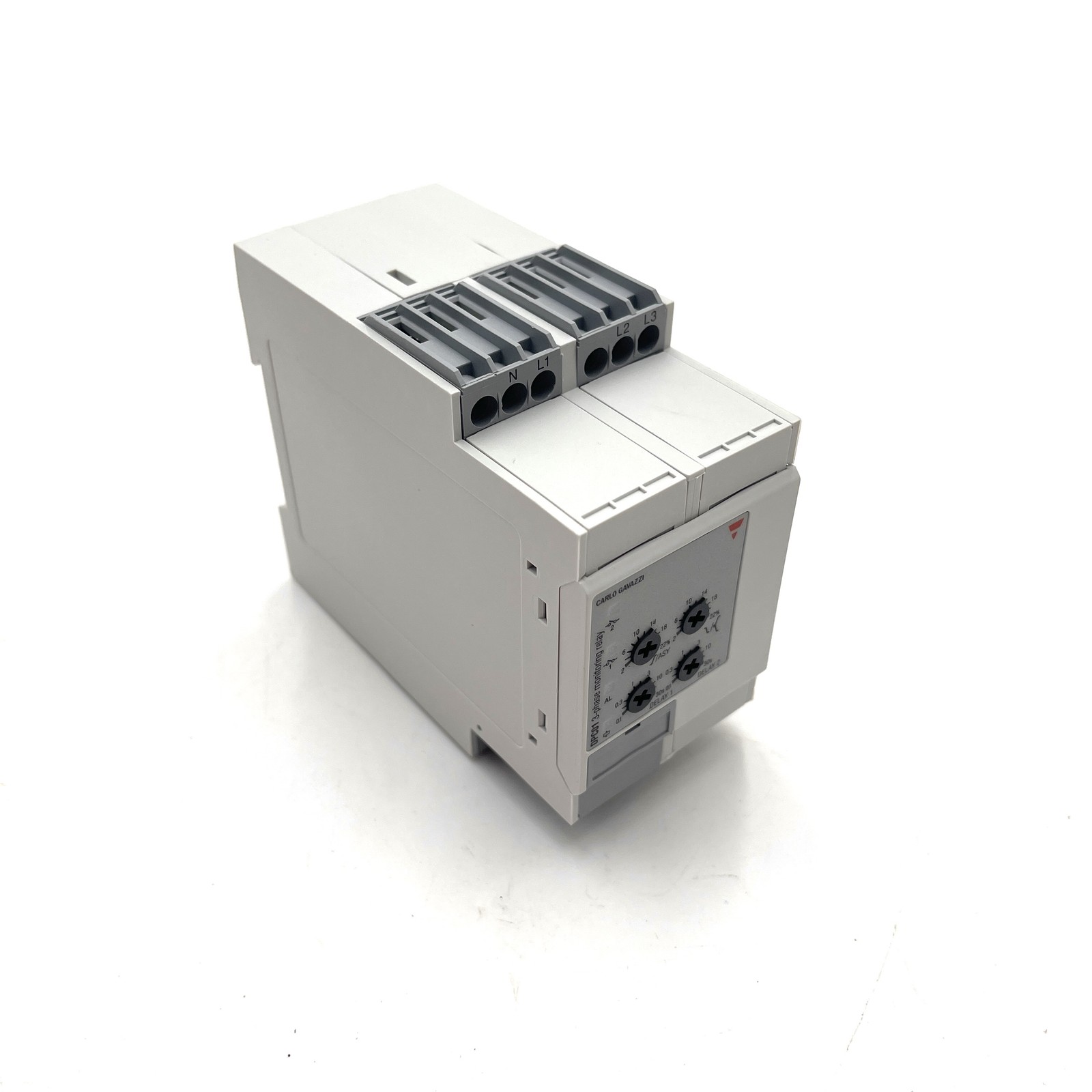

Monitoring Relay DPC01DM48 Carlo Gavazzi 3Ph 380/480VAC 3.5VA IP20

Name: Monitoring Relay DPC01DM48 Carlo Gavazzi 3Ph 380/480VAC 3.5VA IP20
Brand: Carlo Gavazzi

Carlo Gavazzi

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nVoltage monitoring relay; for DIN rail mounting; DPC; SPDT x2\nCARLO GAVAZZI\nMPN: DPC01DM48\nEAN: 8030956000238\nVoltage between phases (for three phase system): 3 x 380...480V AC\nPower supply: from tested wiring system\nBody dimensions: 45x80x99.5mm\n\nPrice per 1 pc\nTechnical parameters\nParameterValue\nVoltage between phases (for three phase system)3 x 380...480V AC\nIP ratingIP20\nMountingfor DIN rail mounting\nOperating temperature-20...60\u00B0C\nKind of output 1SPDT x2\nLeadsscrew terminals\nPower supplyfrom tested wiring system\nManufacturer seriesDPC\nControlled parametervoltage in three-phase electric power system\nOutput 1 electrical parameters250V AC / 8A\nBody dimensions45x80x99.5mm\nType of automation modulevoltage monitoring relay\n\nWeight: 224 g\n\nService and information\n\nQuantity\nNot all available quantities are visible due to eBay limitations. Need more? Conta.
