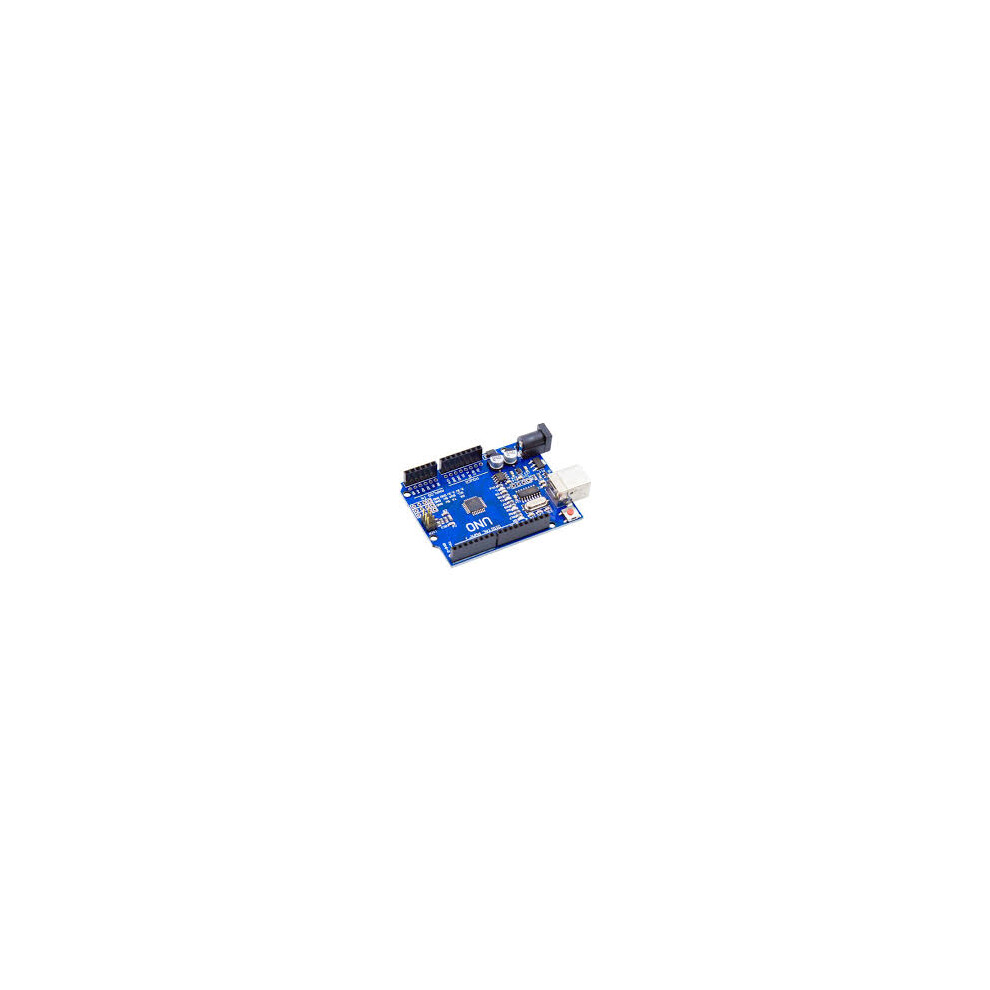

Arduino Uno SMD Board Rev3

Name: Arduino Uno SMD Board Rev3
Brand: Arduino

Arduino

--\nOur eBay Store\n\nArduino Uno SMD A000073 Board Rev3\n\nProduct Details\n\nThe Arduino Uno SMD is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller - simply connect it to a computer with a USB cable or power it with a AC-to-DC adaptor or battery to get started.\n\nThe Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter.\n\n--Microcontroller ATmega328\n\n--Operating voltage 5V\n\n--Input voltage range nom. 7-12V\n\n--Maximum supply voltage 20V\n\n--Digital I/O pins 14 (of which 6 provide PWM output)\n\n--Analog input pins 6\n\n--DC Current per I/O pin 40 mA\n\n--DC Current for 3.3V pin 50 mA\n\n--Flash memory 32 KB o;
