FHRKA 600W Electric Tapping Machine M3-M16 Flexible Tapping Arm 0-312rpm/min, for Steel Aluminum Stainless Steel 8PCS Collets Included

FHRKA

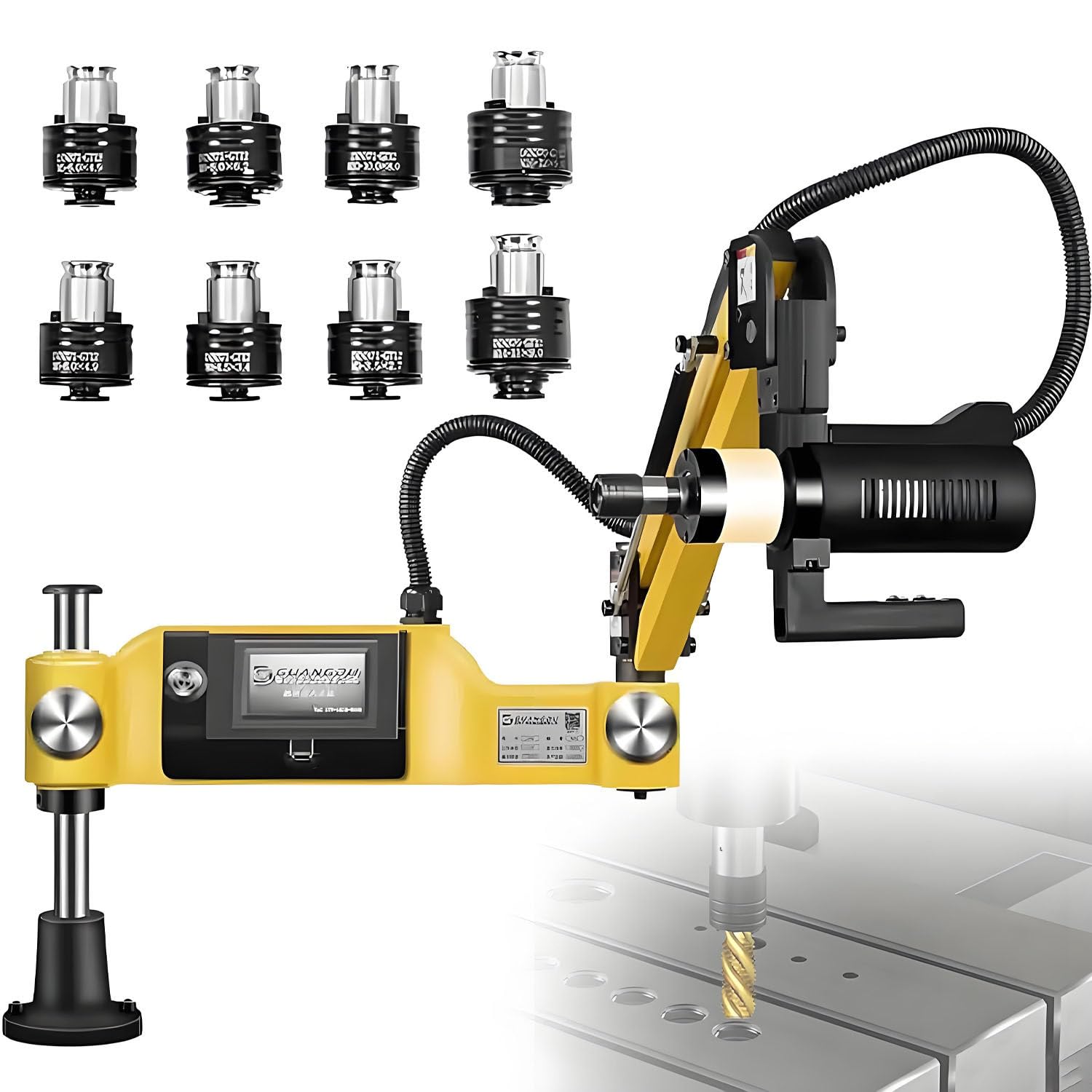

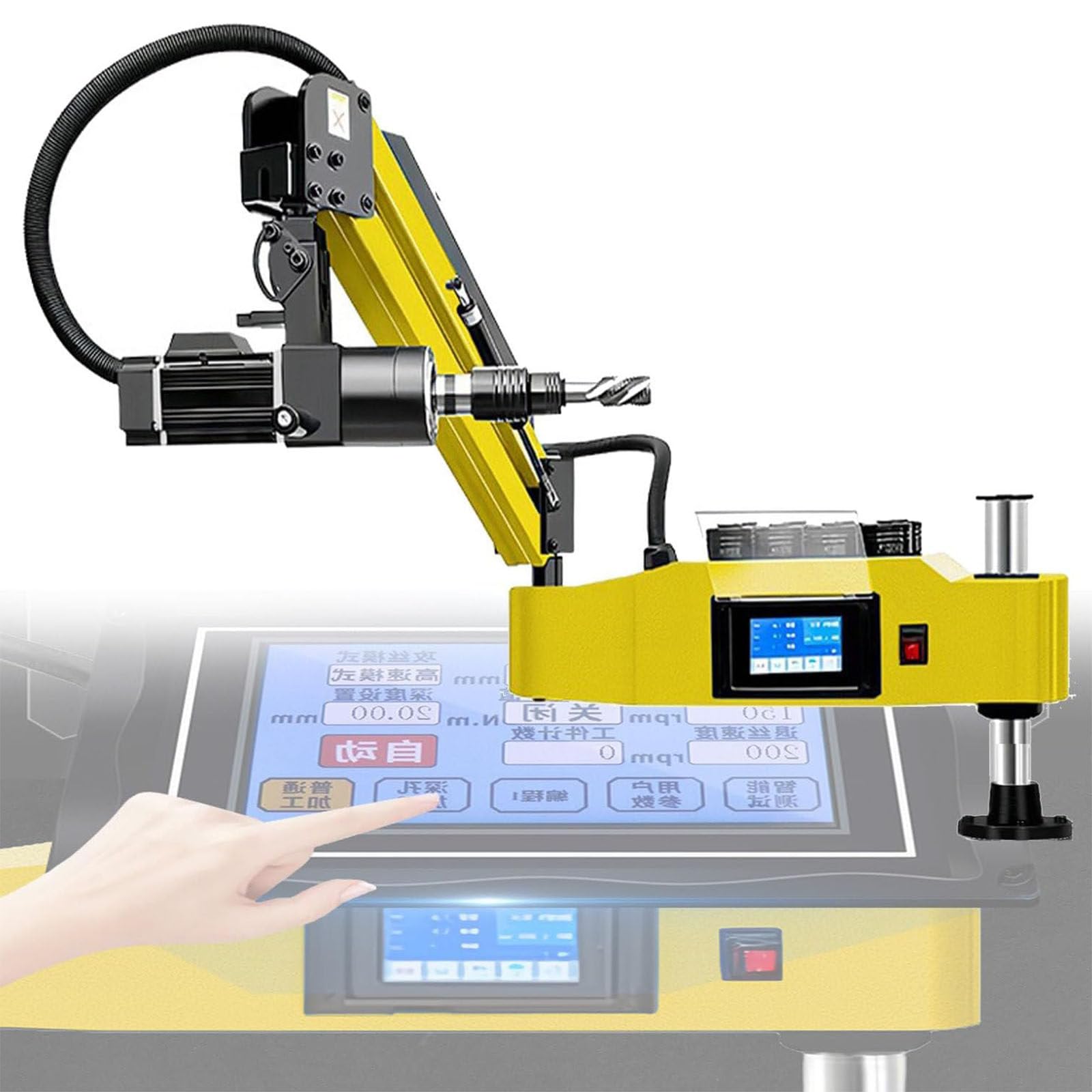

【Electric Tapping Machine】For M3-M16 tapping. Rated Power: 600W. Rotated Speed: 0-312r/min. Working Radius: 1000mm. Working Area: horizontal 1000mm, vertical 550mm. Dimension: 27.6*26*8.7in. Standard equipped tap collet size: GT12 ANSI Collets Tap Torque Collet -1/16"Thru 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", 3/8", 7/16", 1/2". 【Simple & Efficient】The electric-CNC-tapping machine adopts a suspended mani-pulator to achieve tapping in any direction. The ope-ration is simple and flexible, and it can quickly position the workpiece, accurately process repeated positioning and tapping at a fast speed. High production efficiency, suitable for batch processing tapping tasks. 【3 Tapping Modes】The tapper drilling machine has three working modes: manual tapping, automatic tapping, deep hole tapping. The manual mode can set the speed and pitch by itself, which is suitable for different single-piece processing. The automatic mode only needs to input the tapping, thread withdrawal speed and tapping depth to automatically tap, which is suitable for batch processing. 【Premium Quality】The Tapper Tapping Arm consists of a servo motor, a PL-type reducer, a device, a double cantilever bracket and a human-machine touch screen. The double cantilever motor bracket can be anti-collision and firm, and there are support bracket hydraulic rods on both sides to stability. 【Applicable Materials】The Electric Tapping Machine can be used to easily tap metal materials such as copper, lead, A3 steel cast iron, pig iron, steel, 45 steel, hard material, S136, 718H, stainless steel, as well as other materials such as plas-tic and wood. It can easily handle tapping of various materials, such as iron tapping, steel, copper, aluminum, wood and nylon tapping.
