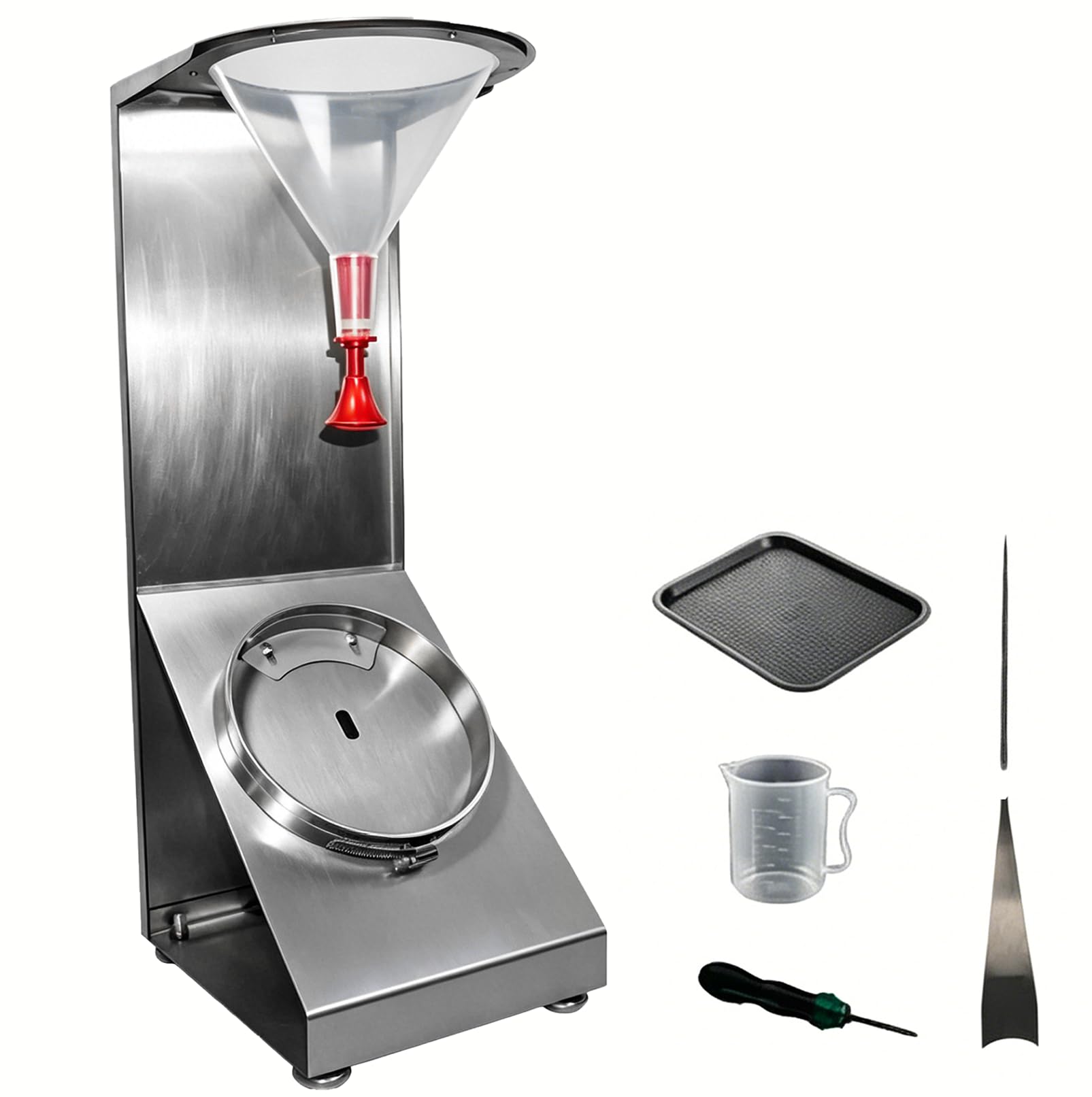

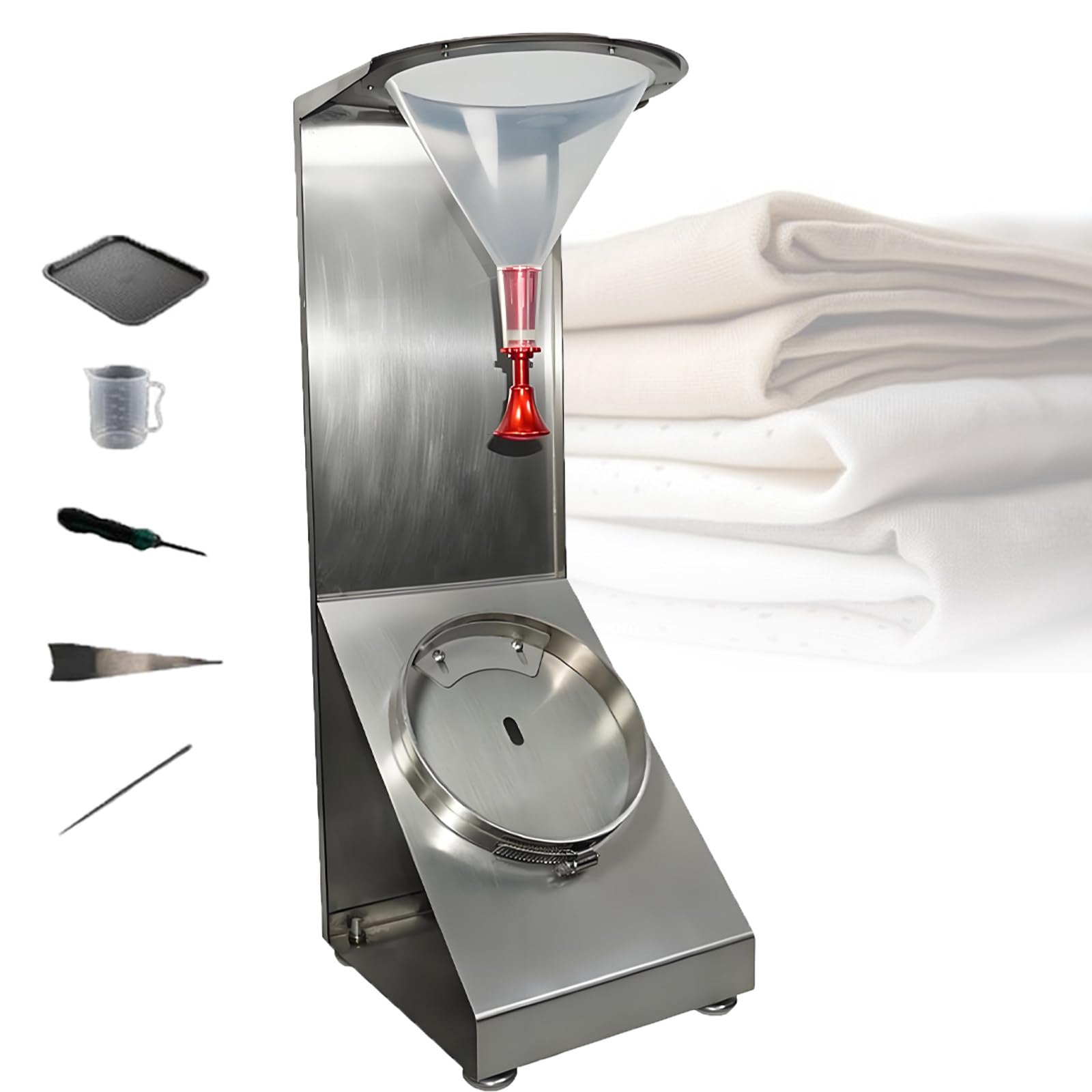

HNBYLMM Textile Fabric Spray Rating Tester, Textile Moisture Resistance Testing Machine, Stainless Steel Fabric Water Resistance Test Equipment, 45° Fabric Water Repellency Tester

HNBYLMM

【Textile Fabric Spray Rating Tester】Mount the fabric specimen to be tested onto the clamping ring, use a standard nozzle to continuously spray water onto the specimen. After the test, observe the surf-ace wetting pattern and compare it with standard rating charts to determine the fabric's water repellency grade. 【Uniform Spray Effect】Equipped with a 19-hole standard nano-spray head, the machine emits a uniform fan-shaped mist through 0.86mm apertures, ensuring consistent and accurate spray results. The 500 ml large‑capacity funnel holds sufficient water, simplifying the testing process and saving time. 【Stable Testing】The instrument is made of robust stainless steel, the adjustable non‑slip feet at the base keep the device level during operation, ensuring stability and reducing vibration. The innovative addition of a level on the top ensures consistent and reliable results across multiple tests. 【Easy to Use】The distance from the nozzle to the center of the specimen is 150 mm, with fine adjustment available. Each test uses 250 ml of distilled water, and the continuous spray time is controlled between 25 and 30 seconds. The fabric plane is positioned at a 45° angle to the horizontal to ensure consistent test conditions. 【Wide Application】The fabric surf-ace water resistance tester is suitable for testing a variety of textile products, including fabrics, non‑woven fabrics, masks, and protective clothing, meeting diverse quality control needs in the textile industry. Its compact, lightweight design and complete accessory kit greatly simplify operation.
