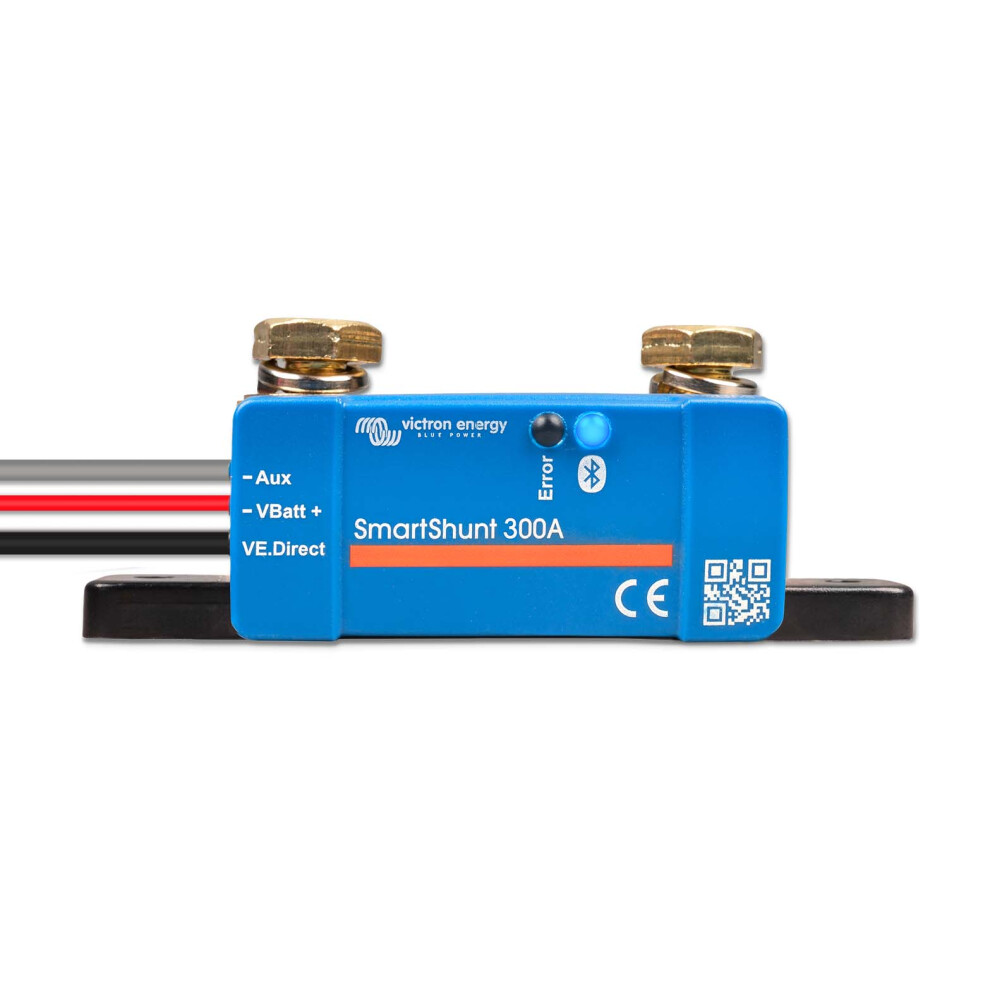

(Smartshunt 300A/50Mv) Victron Energy Smartshunt 300A Smartphone Battery Monitor Voltage Current Meter Bluetooth To Smart Phone Using Victron Connect 8719076065708

Victron Energy

The SmartShunt is a battery monitor. It measures battery voltage and current. Based on these measurements it calculates state of charge, time to go and keeps track of historical data, such as deepest discharge, average discharge and number of cycles.The SmartShunt connects via Bluetooth to the VictronConnect App.The VictronConnect App is used to read out all monitored battery parameters and is also used to make or change settings.Alternatively, the SmartShunt can connect to a GX device, like the ColorControl GX or the Cerbo GX.The SmartShunt has an auxiliary input that can be used to monitor the voltage of a second battery or to monitor the midpoint of a battery bank.The auxiliary input can also be used for battery temperature monitoring together with the optional Temperature sensor for BMV.TECHNICAL SPECIFICATIONSmartShunt – 300ASupply voltage range – 6.5 – 70 VDCCurrent draw – < 1mAInput voltage range, auxiliary battery – 6.5 – 70 VDCBattery capacity (Ah) – 1 – 9999 AhOperating temperature range – -40 +50°C (-40 – 120°F)Measures voltage of second battery, or temperature, or midpoint – YesTemperature measurement range – -20 +50°CVE.Direct communication port – YesRESOLUTION & ACCURACYCurrent – ± 0.01 AVoltage – ± 0.01 VAmp hours – ± 0.1 AhState of charge (0 – 100 %) – ± 0.1 %Time to go – ± 1 minTemperature (if optional temperature sensor connected) – ± 1 °C/°F (0 – 50 °C or 30 – 120 °F)Accuracy of current measurement – ± 0.4 %Offset – Less than 20 / 40 / 80 mAAccuracy of voltage measurement – ± 0.3 %INSTALLATION & DIMENSIONSDimensions (h x w x d) – 300 A: 44 x 120 x 44 mmShunt connection bolts – M8 (0.3937 inch)Protection category – IP21Part number – SHU050130050.
