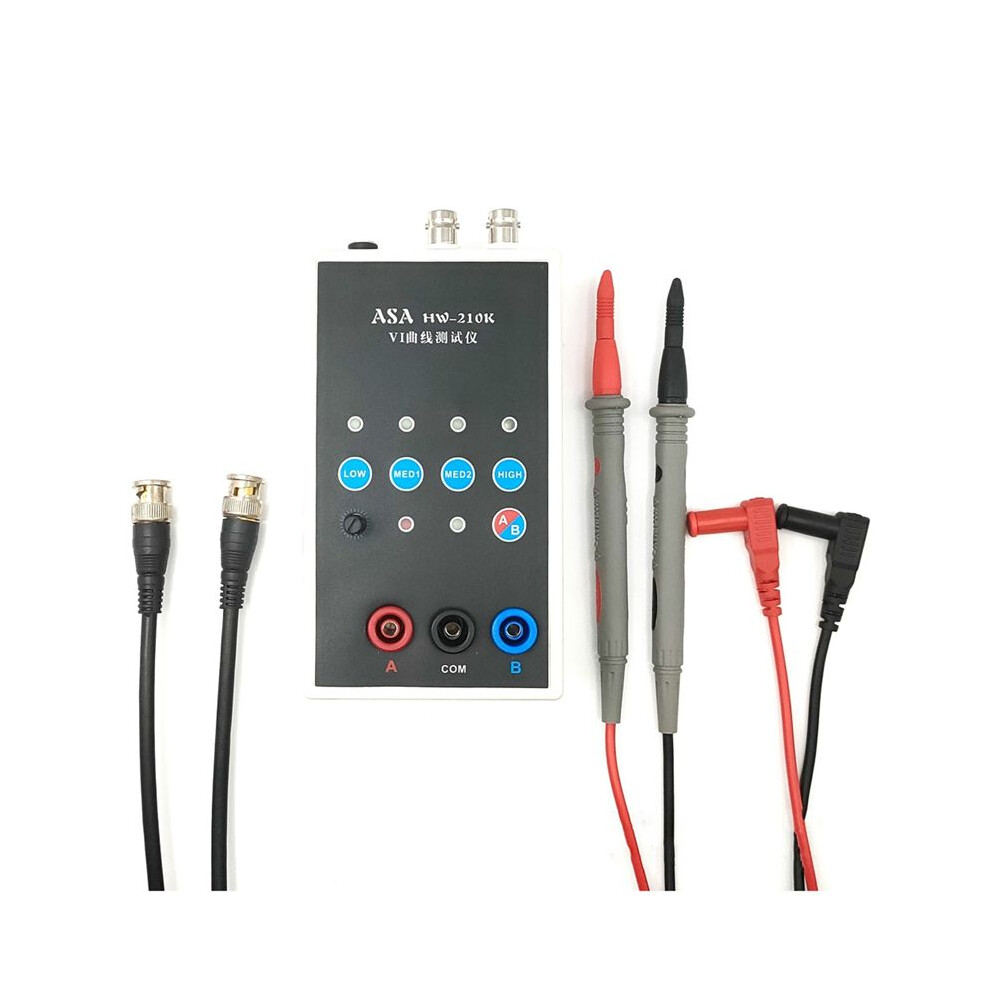

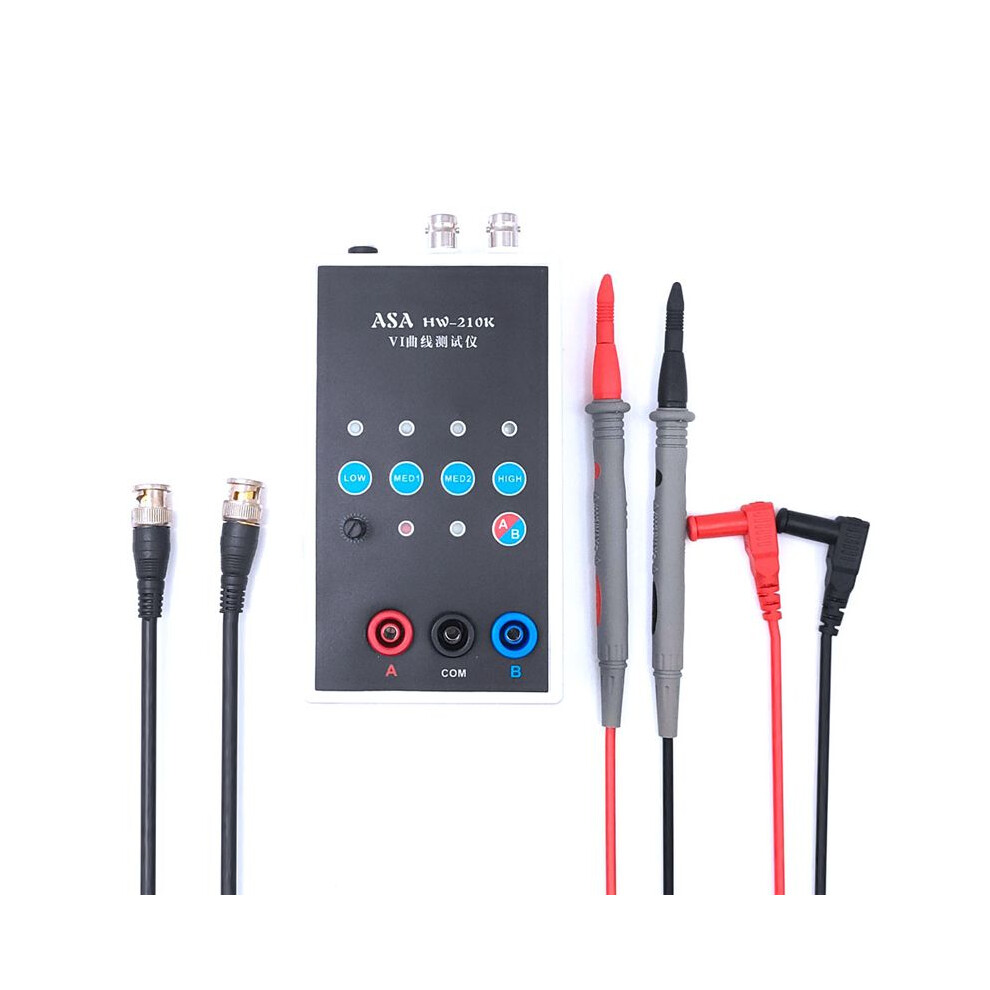

HW-210K Dual-Channel VI Curve Tester Circuit Board Online Inspection ASA Testers
Dual-Channel VI Curve Tester, Circuit Board Online Inspection ASA Tester 4 Gears Adjustable\nFeatures:\n4 test frequencies, available when connected to an oscilloscope, both analog and digital oscilloscopes can be usedDual signal input, alternate display4-step frequency with adjustable AC speedClick single channel / alternate display\nSpecifications:\nColor: grayMaterial: plasticPower supply: 24V DC (delivery does not include power adapter, please prepare yourself)\nHow to use:\nOscilloscope parameter settings.*Adjust the oscilloscope to X-Y mode (different oscilloscopes have different adjustment methods, please explore by yourself).*Adjust the vertical parameter of 2 channels of X Y to 1V/div, only need to adjust a mono oscilloscope.*Analog oscilloscope does not need to adjust the time base, digital oscilloscope time base is adjusted between 1-5ms.*After connected correctly, the oscilloscope will show a horizontal line. If the vertical line is displayed, the xY plug will be reversede
